Rain Drain™ Opening Ports
Share THIS PAGE:

Rain Drain Opening Ports

For Ports Mounted on a Sloped Surface
By: Beckson

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
Rain Drain ports are designed for use where cabin sides are sloped, and other ports would collect rain and spray.
The molded in Rain Drain™ channels drain while tipped as much as 40°. They resist clogging and are easy to clean.
No water enters the boat when you open the port after a rain.
Beckson plastic portlights have a long history of excellent service and superior design features.
They feature no corrosion, no condensation, no leaks, and no waterfall when you open the port.
• Screen and exterior trim ring are included
• Replacement parts are readily available
• All Beckson Opening Ports are CE approved
• For replacing existing portlights, Beckson Fixed and Opening Ports are engineered to standard mounting hole sizes for interchangeability with other manufacturer's ports

Selection and Installation —
• In choosing the size of a portlight for new construction, it is generally best to mount the largest port possible — for more light and better ventilation
• The slope of the mounting location will dictate the type of port required — standard Beckson Self-Draining ports for near vertical mounting (to 15° max.), or Rain Drain ports for larger angle mounting
• To determine the spigot length (depth) to order, estimate the hull or cabin wall thickness, and select a spigot at least that deep. Both portlight styles come in 1" or 2" spigot depths. Spigots should be trimmed flush with a fine toothed saw after installation for best drainage.
• Note that the thicker the cabin wall thickness, the smaller the slope where Rain Drain ports will self-drain — a 1" spigot has a maximum drain angle of 40°, while a 2" spigot has a maximum drain angle of 24°
• Use silicone sealant as sealant for its superior gasket forming properties

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDBeckson#AvailabilityDescriptionUOMYour PriceQTY
92857BEC PO410DBS-10 PO410DBS-10Loading...Rain Drain Opening Ports, 4" x 10" Black Frame⁄Smoked Lens (Spigot Depth 1")Loading...
85396BEC PO410DBS-20 PO410DBS-20Loading...Rain Drain Opening Ports, 4" x 10" Black Frame⁄Smoked Lens (Spigot Depth 2")Loading...
19863BEC PO410DWC-20 PO410DWC-20Loading...Rain Drain Opening Ports, 4" x 10" White Frame⁄Clear Lens (Spigot Depth 2")Loading...

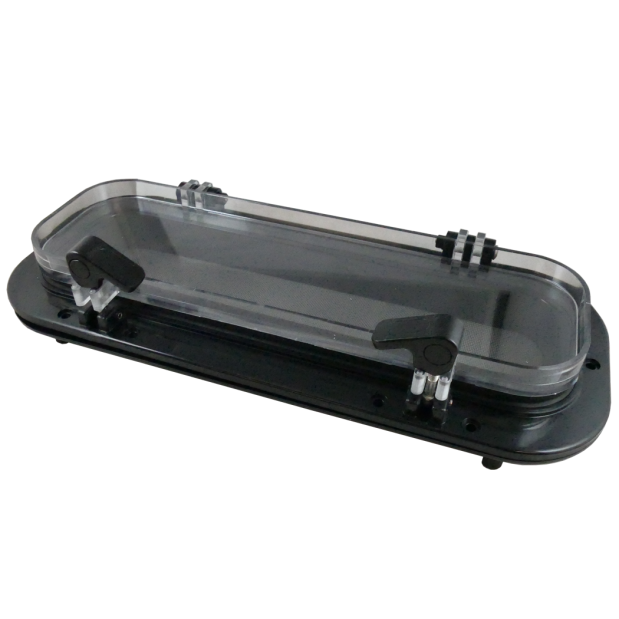

169766BEC PO414DBC-10 PO414DBC-10Loading...Rain Drain Opening Ports, 4" x 14" Black Frame⁄Clear Lens (Spigot Depth 1")Loading...
170200BEC PO414DBC-20 PO414DBC-20Loading...Rain Drain Opening Ports, 4" x 14" Black Frame⁄Clear Lens (Spigot Depth 2")Loading...
124443BEC PO414DBS-10 PO414DBS-10Loading...Rain Drain Opening Ports, 4" x 14" Black Frame⁄Smoked Lens (Spigot Depth 1")Loading...
59637BEC PO414DBS-20 PO414DBS-20Loading...Rain Drain Opening Ports, 4" x 14" Black Frame⁄Smoked Lens (Spigot Depth 2")Loading...
139671BEC PO414DWC-10 PO414DWC-10Loading...Rain Drain Opening Ports, 4" x 14" White Frame⁄Clear Lens (Spigot Depth 1")Loading...
01304BEC PO414DWC-20 PO414DWC-20Loading...Rain Drain Opening Ports, 4" x 14" White Frame⁄Clear Lens (Spigot Depth 2")Loading...
153655BEC PO414DWS-10 PO414DWS-10Loading...Rain Drain Opening Ports, 4" x 14" White Frame⁄Smoked Lens (Spigot Depth 1")Loading...
135879BEC PO512DBC-20 PO512DBC-20Loading...Rain Drain Opening Ports, 5" x 12" Black Frame⁄Clear Lens (Spigot Depth 2")Loading...
139361BEC PO512DBS-10 PO512DBS-10Loading...Rain Drain Opening Ports, 5" x 12" Black Frame⁄Smoked Lens (Spigot Depth 1")Loading...
02291BEC PO512DBS-20 PO512DBS-20Loading...Rain Drain Opening Ports, 5" x 12" Black Frame⁄Smoked Lens (Spigot Depth 2")Loading...

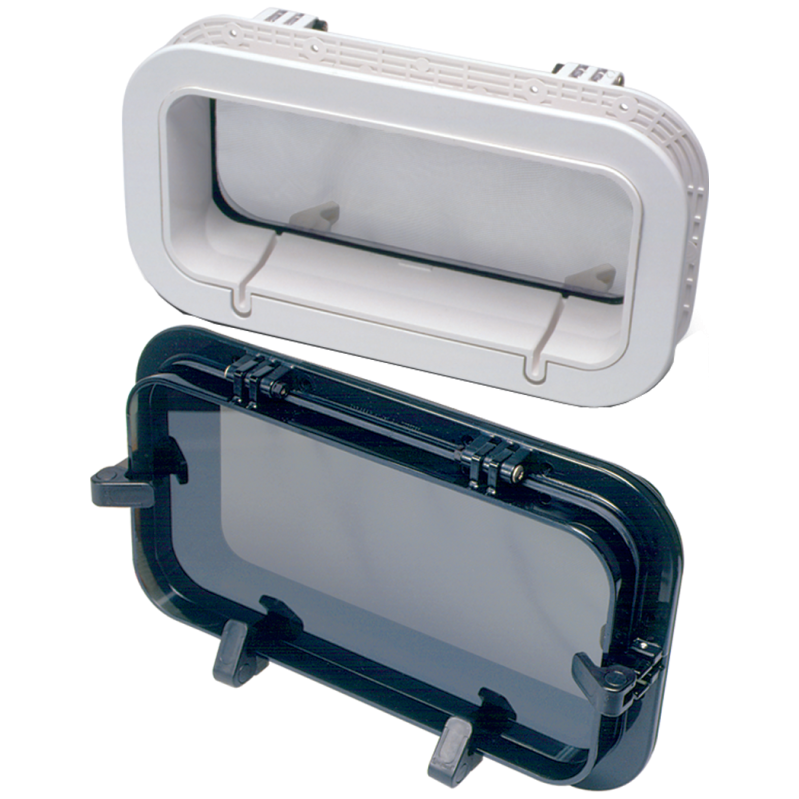

71296BEC PO512DWC-10 PO512DWC-10Loading...Rain Drain Opening Ports, 5" x 12" White Frame⁄Clear Lens (Spigot Depth 1")Loading...
02292BEC PO512DWC-20 PO512DWC-20Loading...Rain Drain Opening Ports, 5" x 12" White Frame⁄Clear Lens (Spigot Depth 2")Loading...

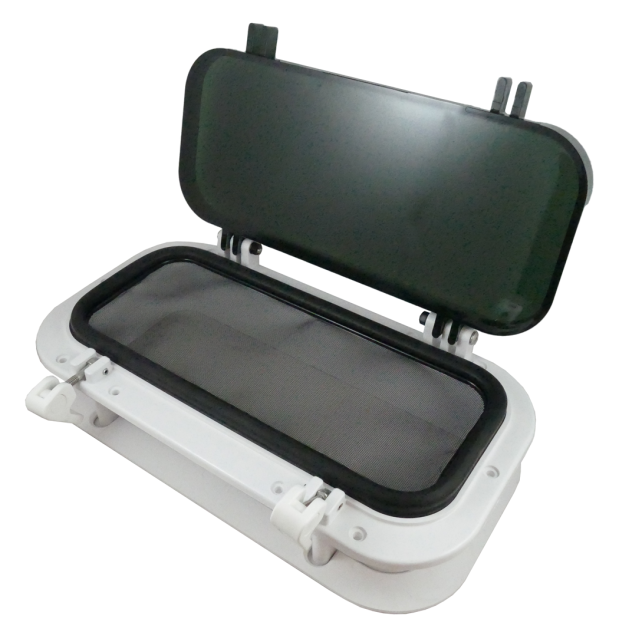

01307BEC PO512DWS-20 PO512DWS-20Loading...Rain Drain Opening Ports, 5" x 12" White Frame⁄Smoked Lens (Spigot Depth 2")Loading...
02294BEC PO714DWC-20 PO714DWC-20Loading...Rain Drain Opening Ports, 7" x 14" White Frame⁄Clear Lens (Spigot Depth 2")Loading...
167748BEC PO714DWS-10 PO714DWS-10Loading...Rain Drain Opening Ports, 7" x 14" White⁄Smoke Lens (Spigot Depth 1")Loading...
01311BEC PO714DWS-20 PO714DWS-20Loading...Rain Drain Opening Ports, 7" x 14" White Frame⁄Smoked Lens (Spigot Depth 2")Loading...
