250A WHT CA3 CIRCUIT BREAKER
DC (Only) C-Series Triple Pole Circuit Breakers
AC C-Series Triple Pole Circuit Breakers, 50A AC
DC C-Series Triple Pole Circuit Breakers, 250A DC

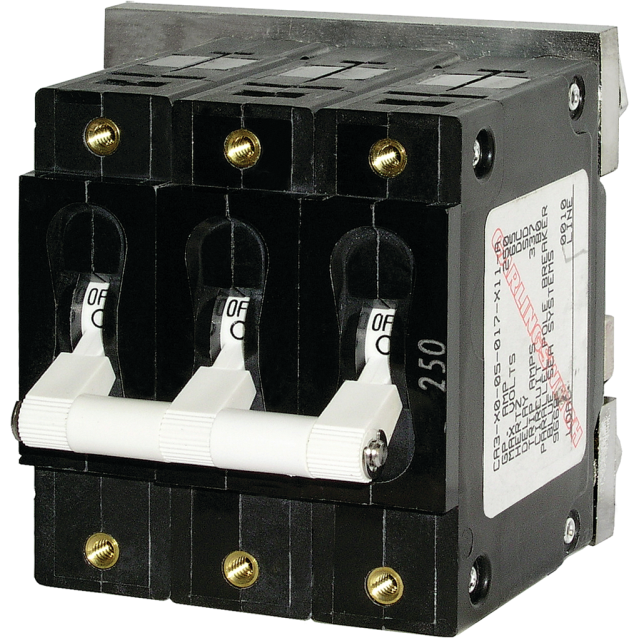

DC (Only) C-Series Triple Pole Circuit Breakers
Share THIS PAGE:

DC C-Series Triple Pole Circuit Breakers

High-Load, Toggle Circuit Breakers

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
• 50 to 300 ampere range provides over-current protection previously only available in fuses for inverters, bow thrusters, and windlasses
• Poles are ganged via buses to achieve high amperage capacities
• Combines switching and circuit protection in a single device
• Magnetic-hydraulic delay trip mechanism allows for short start-up current surges without tripping the breaker
• “Trip-Free” - cannot be held closed after trip
• Interrupt rating: 5,000 amperes
• Maximum voltage: 65 VDC
• Note: Double and triple pole C-Series circuit breakers for AC and DC are not interchangeable

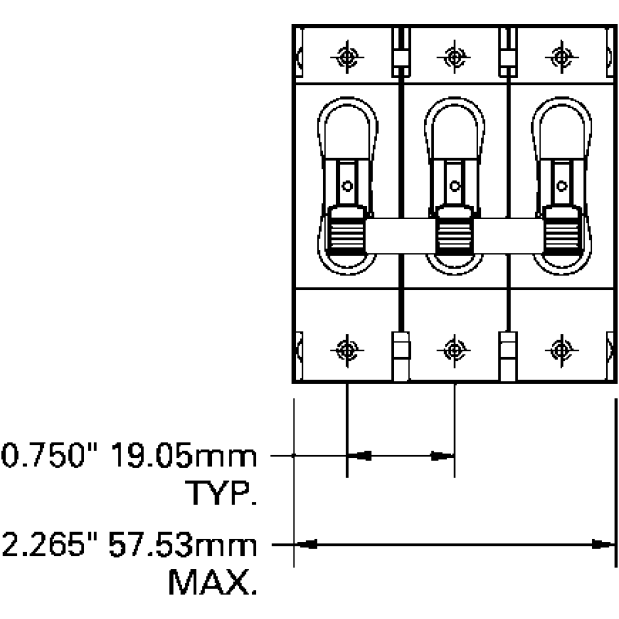

• C-Series DC triple pole circuit breaker case bodies measure 2.250"W x 2.50"H; terminal studs on bus are 5/16"

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDBlue Sea Systems#AvailabilityDescriptionUOMYour PriceQTY

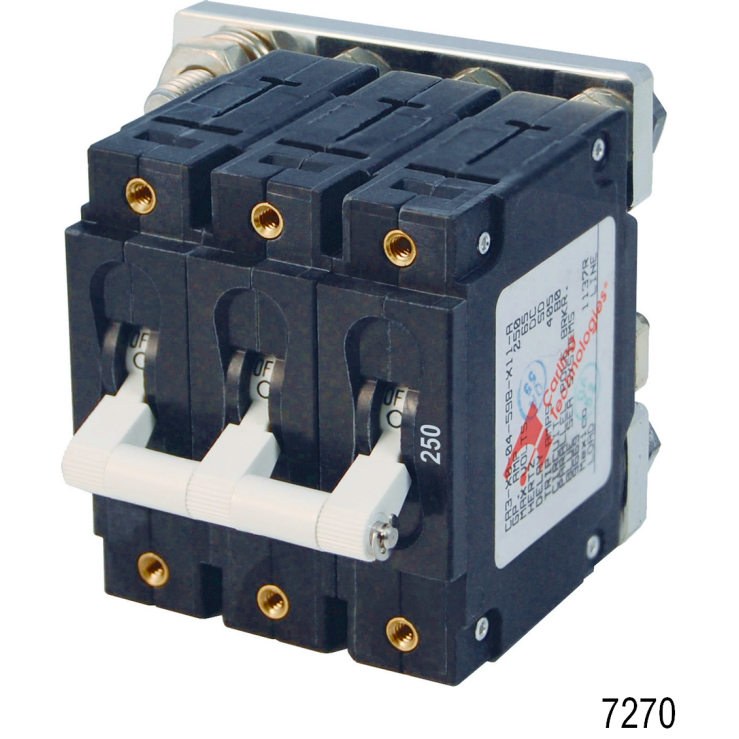

79918B/S 7270 7270Loading...DC C-Series Triple Pole Circuit Breakers, 250A DCLoading...

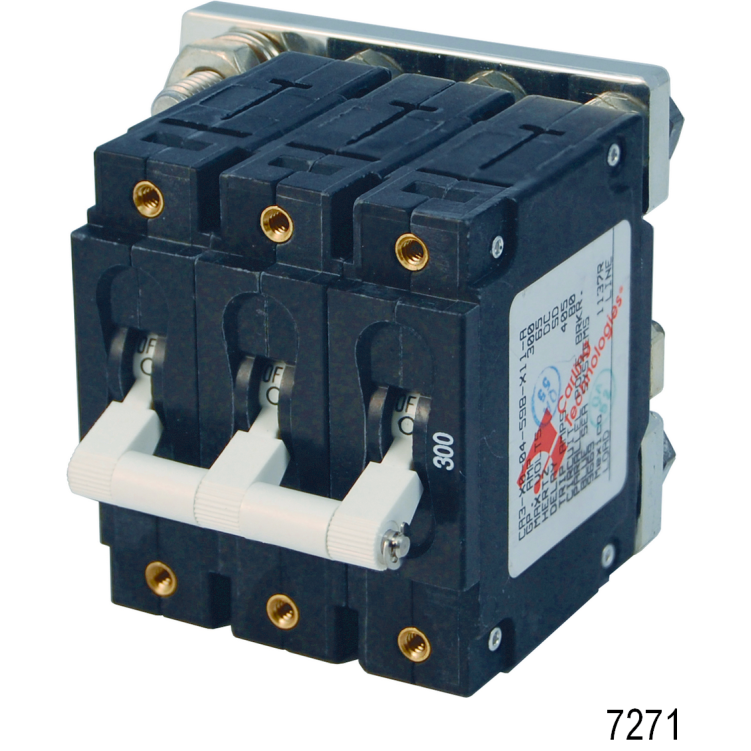

79919B/S 7271 7271Loading...DC C-Series Triple Pole Circuit Breakers, 300A DCLoading...
Add To Cart
