12 X 11 SS TRIM TAB KIT
Insta-Trim Boat Levelers
Share THIS PAGE:

Insta-Trim Kits

Complete Trim Tab Kits

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview

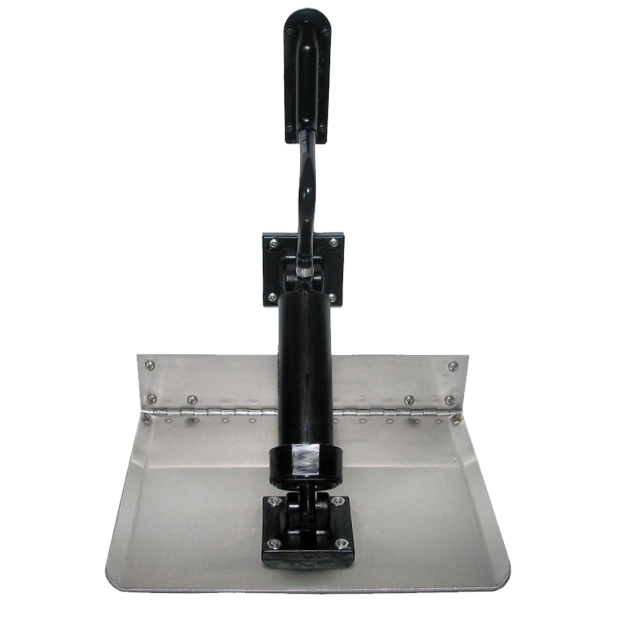

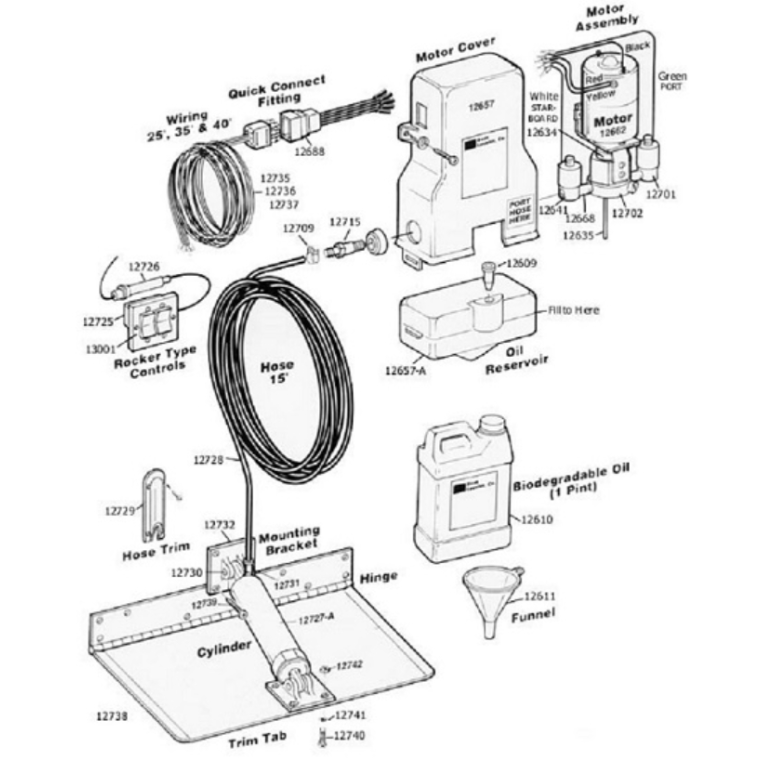

Insta-Trim boat levelers are made of 12 gauge 304 stainless steel and guaranteed against electrolysis. A 12 volt kit includes motor with a thermo-overload, pump with a built in by-pass, and epoxy-sealed solenoids for locking tabs in position. Also included is a protective cover with a transparent reservoir, hydraulic lines, cylinders, brackets, rocker type switches, wiring, stainless steel mounting hardware, and two stainless steel tabs with hinges.
• Tab depths are available in 8 and 11 inch chords; lengths vary depending upon the length of the boat
• Dual cylinders are standard for 46 to 72 inch tabs
• Twin outboard and I/O kits are appropriate only for low-displacement cruisers in the size ranges indicated; for heavier cruisers in a given size range, choose an inboard system
Note: ** two hydraulic cylinders per tab

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDBoat Leveler#AvailabilityDescriptionUOMYour PriceQTY
03445B/L N128000 N128000Loading...Insta-Trim Kits, 12" x 8" , 18' - 20' Single O.B. & I⁄OsLoading...
03446B/L N121100 N121100Loading...Insta-Trim Kits, 12" x 11" , 20' - 24' Twin O.B. & I⁄OsLoading...
03447B/L N141100 N141100Loading...Insta-Trim Kits, 14" x 11" , 24' - 26' Twin O.B. & I⁄OsLoading...
03448B/L N180000 N180000Loading...Insta-Trim Kits, 18" x 8" , 20' - 22' Single O.B. & I⁄OsLoading...
03449B/L N181100 N181100Loading...Insta-Trim Kits, 18" x 11" , 28' - 32' Twin O.B. & I⁄OsLoading...
03450B/L N241100 N241100Loading...Insta-Trim Kits, 24" x 11" , 32' - 36' Twin O.B. & I⁄OsLoading...
03451B/L N241800 N241800Loading...Insta-Trim Kits, 24" x 8" , 22' - 25' InboardsLoading...
03452B/L N308000 N308000Loading...Insta-Trim Kits, 30" x 8" , 22' - 25' InboardsLoading...
03453B/L N362629 N362629Loading...Insta-Trim Kits, 36" x 8" , 26' - 29' InboardsLoading...
03454B/L N403036 N403036Loading...Insta-Trim Kits, 40" x 8" , 30' - 36' InboardsLoading...
03455B/L N463741 N463741Loading...Insta-Trim Kits, 46" x 8" , 37' - 41' Inboards**Loading...
03456B/L N504250 N504250Loading...Insta-Trim Kits, 50" x 8" , 42' - 50' Inboards**Loading...
03457B/L N555155 N555155Loading...Insta-Trim Kits, 55" x 8" , 51' - 55' Inboards**Loading...
03458B/L N605663 N605663Loading...Insta-Trim Kits, 60 x 8" , 56' - 63' Inboards**Loading...
03459B/L N726100 N726100Loading...Insta-Trim Kits, 72" x 8" , 61' - UP Inboards**Loading...
