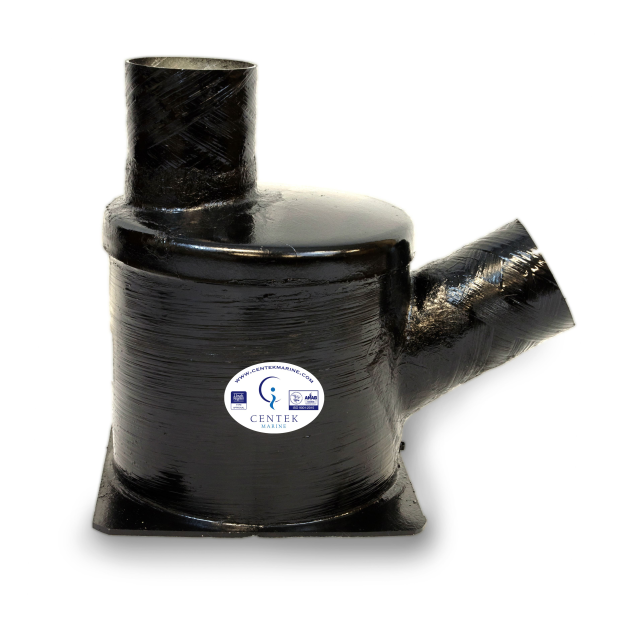

Vernalift- Side Angle In/Top Out Muffler

Marine Wet Exhaust Muffler
By: Centek

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
The compact Vernalift muffler was designed for sailboat auxiliary propulsion engines installed near or below the water line. If the engine exhaust manifold is near or below the waterline, a siphon break must be installed in the water supply line to prevent continued water flow after the engine is shut down. When several body sizes are available, choose the largest that will fit the available space. The increased volume will help ensure that residual water doesn't enter the engine after shutdown; the longer the exhaust system hoses, the more important this is.
• Inlet port is at a 45° angle
• Applications: powerboat, sailboat and generator engines
• Fuel type: gas or diesel
• Installation: above or below waterline, close to centerline
• Sound rating: better
• All models have square bases

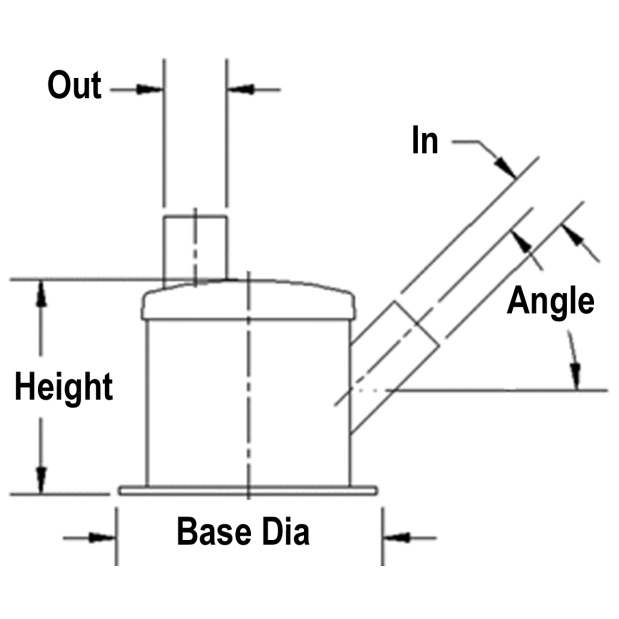

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDCentek#AvailabilityDescriptionUOMYour PriceQTY
136768VER 1500104 1500104Loading...Vernalift- Side Angle In/Top Out Muffler, 1.63" I/O x 7.92" H X 8.36" Diameter, 10 HP Diesel, 30 HP GasLoading...
189816VER 1500157 1500157Loading...Vernalift- Side Angle In/Top Out Muffler, 1.88" I/O x 8.00" H X 8.36" Diameter, 21 HP Diesel, 53 HP GasLoading...
170051VER 1500106 1500106Loading...Vernalift- Side Angle In/Top Out Muffler, 1.88" I/O x 10.16" H X 10.04" Diameter, 21 HP Diesel, 53 HP GasLoading...
76563VER 1500107 1500107Loading...Vernalift- Side Angle In/Top Out Muffler, 2" I/O x 10.16" H X 10.04" Diameter, 25 HP Diesel, 60 HP GasLoading...
125242VER 1500122 1500122Loading...Vernalift- Side Angle In/Top Out Muffler, 2.38" I/O x 10.16" H X 10.04" Diameter, 35 HP Diesel, 95 HP GasLoading...
92044VER 1500110 1500110Loading...Vernalift- Side Angle In/Top Out Muffler, 2.50" I/O x 10.16" H X 10.04" Diameter, 40 HP Diesel, 110 HP GasLoading...
69628VER 1500111 1500111Loading...Vernalift- Side Angle In/Top Out Muffler, 2.88" I/O x 10.16" H X 10.04" Diameter, 50 HP Diesel, 140 HP GasLoading...
85541VER 1500112 1500112Loading...Vernalift- Side Angle In/Top Out Muffler, 3" I/O x 12.00" H X 12.34" Diameter, 60 HP Diesel, 160 HP GasLoading...
190558VER 1500153 1500153Loading...Vernalift- Side Angle In/Top Out Muffler, 3"⁄4" I/O x 12.00" H X 12.34" Diameter, 125 HP Diesel, 280 HP GasLoading...
69627VER 1500113 1500113Loading...Vernalift- Side Angle In/Top Out Muffler, 3.50" I/O x 12.00" H X 12.34" Diameter, 85 HP Diesel, 220 HP GasLoading...
85540VER 1500114 1500114Loading...Vernalift- Side Angle In/Top Out Muffler, 4" I/O x 12.00" H X 12.34" Diameter, 125 HP Diesel, 280 HP GasLoading...
164345VER 1500115 1500115Loading...Vernalift- Side Angle In/Top Out Muffler, 4.50" I/O x 12.00" H X 12.34" Diameter, 170 HP Diesel, 320 HP GasLoading...
132295VER 1500116 1500116Loading...Vernalift- Side Angle In/Top Out Muffler, 5" I/O x 12.00" H X 12.34" Diameter, 210 HP Diesel, 370 HP GasLoading...
140064VER 1500117 1500117Loading...Vernalift- Side Angle In/Top Out Muffler, 6" I/O x 14.50" H X 16.17" Diameter, 280 HP Diesel, 440 HP GasLoading...
137663VER 1500118 1500118Loading...Vernalift- Side Angle In/Top Out Muffler, 8" I/O x 18.00" H X 18.50" Diameter, 420 HP Diesel, N⁄A GasLoading...
