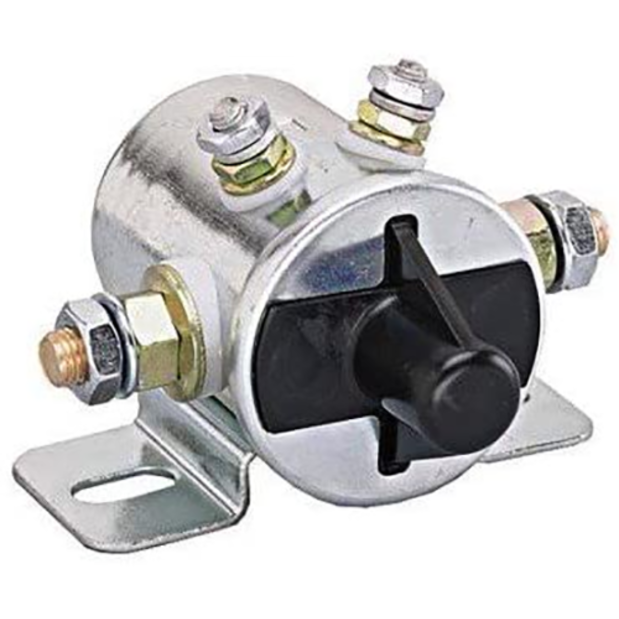

Designed for low duty cycle applications, such as electrically contolled water valves. These solenoids are activated via an On-Off-On momentary switch and incorporate a set of permanent magnets which hold the plunger in the closed position, even when no power is being applied.
Thus, depending on the polarity of the power applied, these solenoids remain in either the open or closed position, without the need for continuous power or its resulting heat production.
• Continues to hold, even after the power is disconnected
• Requires less than 3.5 amps to operate
• Compact: mounts in tight locations
• No heat generated: coil taken out of circuit
• Electrical rating: 110 amps continuous (carry only)
• Case: plated steel
• Terminals: coil 10-32 thread, large 5/16"-24 thread, hex nuts and lockwashers included
• Bracket mounting holes: .281" x .310", 2.20" on center
