2 POSITION PUSH-PULL SWITCH
Heavy Duty Marine Construction Switches
Share THIS PAGE:

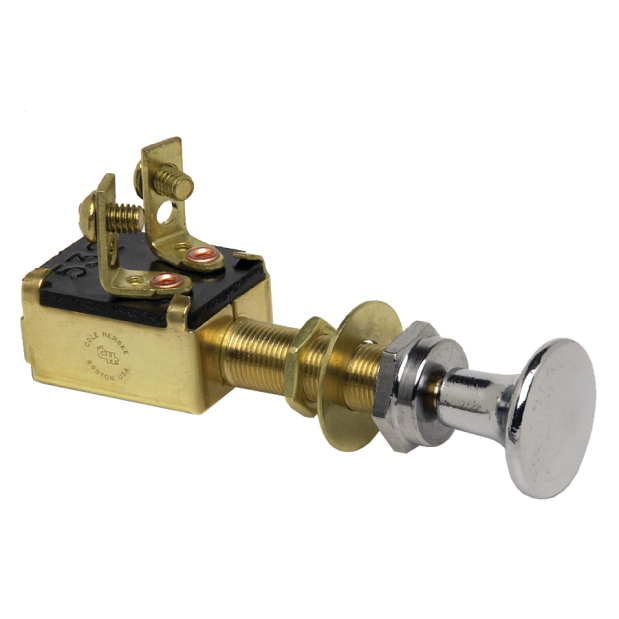

Marine Construction Push-Pull Switch - Normally Off

SPST Off - On, Normally Off

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
• Single Pole Single Throw; Two position: Off - On; Normally Off
• Two screw-type terminals
• Electrical rating: 10 amps at 12V (DC)
• For 6-36V (DC) electrical systems
• Brass case, mounting stem, terminals and mounting hardware
• Mounting stem 3/8"-32 thread, 11/4" long
• Mounts in panels up through 3/4" thick
• Complete with face nut, washer and hex nut for mounting
• Chrome plated brass knob and face nut knob face dia. 3/4"
• Note: bubble pack for display purposes

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDCole Hersee#AvailabilityDescriptionUOMYour PriceQTY
04495C/H M628 M628Loading...Marine Construction Push-Pull Switch - Normally Off, Chrome Plated Brass Knob And Face Nut (Each)Loading...
04496C/H M628BP M628BPLoading...Marine Construction Push-Pull Switch - Normally Off, Chrome Plated Brass Knob And Face Nut (Bubble Packed)Loading...
