1IN NPS/NPT BRZ FLANGE ADAPTER
IBVF - Ball Valve Flanged Adaptors
Share THIS PAGE:

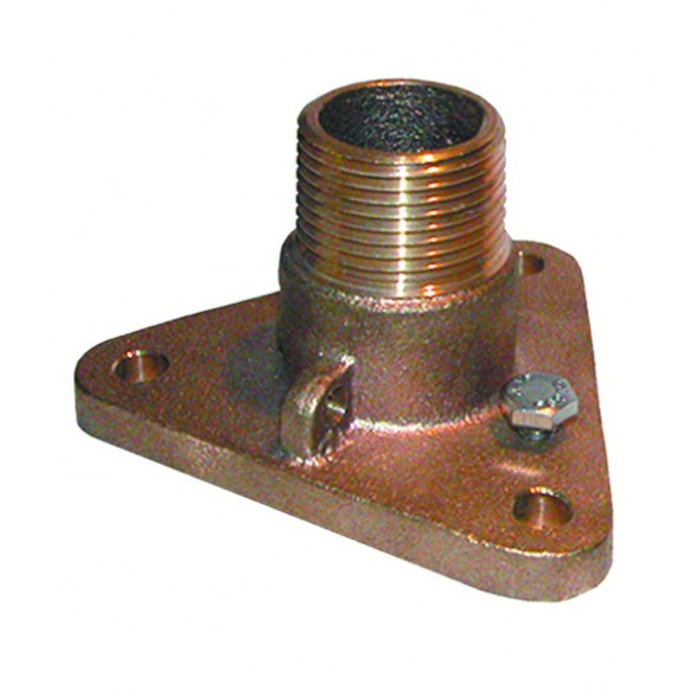

Bronze IBVF - Ball Valve Flanged Adaptors

Increase Strength of Valve to Thru-Hull Installations
By: Groco

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
IBVF Flanged Adaptors have been developed to address several problems in the marine industry - particularly, the ill-advised practice of attaching in-line ball valves directly to thru-hull fittings.
Without the structural advantage of a flanged seacock base to spread the potential forces applied, this creates a physically vulnerable situation. Installing an IBVF Adapter helps supply some of the structural stability provided by a flanged seacock, without the expense of buying an entirely new valve.

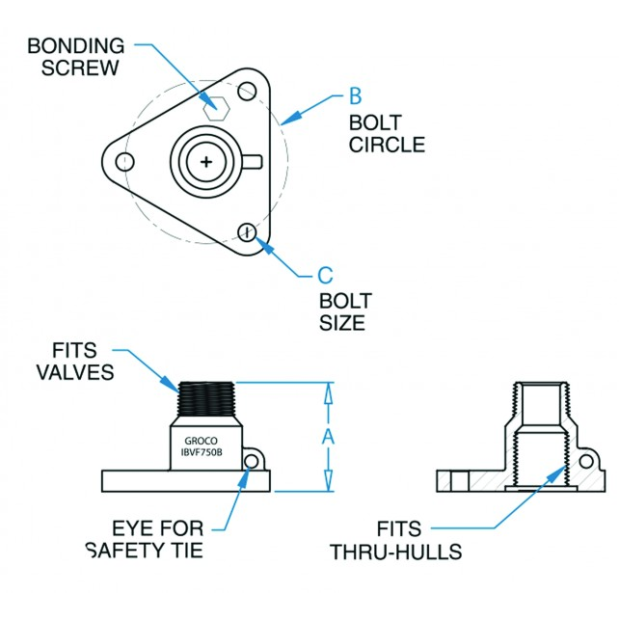

• Bottom port of IBVF adaptor has straight NPS threads to mate with thru-hulls; top port has tapered NPT threads to mate with ball valves
• Provides a safe and sturdy assembly when in-line valves are used as seacocks
• 316 stainless steel versions are available by special order

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDGroco#AvailabilityDescriptionUOMYour PriceQTY
187287GRO IBVF-750 IBVF-750Loading...IBVF - Ball Valve Flanged Adaptors, 3/4" x 3/4" NPSLoading...
187281GRO IBVF-1000 IBVF-1000Loading...IBVF - Ball Valve Flanged Adaptors, 1" x 1" NPSLoading...
187282GRO IBVF-1250 IBVF-1250Loading...IBVF - Ball Valve Flanged Adaptors, 1-1/4" x 1-1/4" NPSLoading...
187283GRO IBVF-1500 IBVF-1500Loading...IBVF - Ball Valve Flanged Adaptors, 1-1/2" x 1-1/2" NPSLoading...
187284GRO IBVF-2000 IBVF-2000Loading...IBVF - Ball Valve Flanged Adaptors, 2" x 2" NPSLoading...
187285GRO IBVF-2500 IBVF-2500Loading...IBVF - Ball Valve Flanged Adaptors, 2-1/2" x 2-1/2" NPSLoading...
187286GRO IBVF-3000 IBVF-3000Loading...IBVF - Ball Valve Flanged Adaptors, 3" x 3" NPSLoading...
Add To Cart
