Perforated Hull Strainer with Access Door
Share THIS PAGE:

Perforated Hull Strainer with Access Door

Easy Maintenance and Emergency Thru-Hull Access
By: Groco

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview

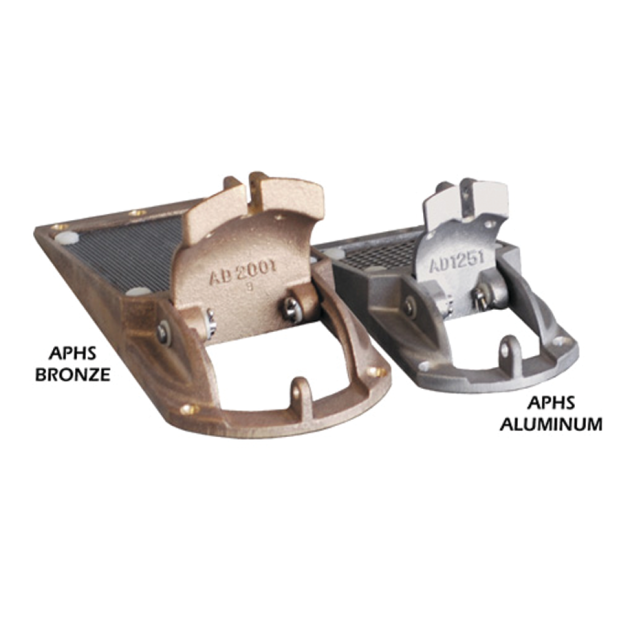

Access to the thru-hull fitting beneath this Groco hull strainer is made easy due to the patented access door design. There is no need to remove the entire strainer to remove nuisance marine growth. Aluminum models (see our website for listings) may be welded or screwed to aluminum hulls.

• Door held shut by a ring and clevis pin
• Ratio shown is size of strainer area compared to thru-hull pipe cross-sectional area, for the largest allowable thru-hull; smaller thru-hulls will have higher ratios
• Also available in slotted style (see separate entry for Groco ASC models)

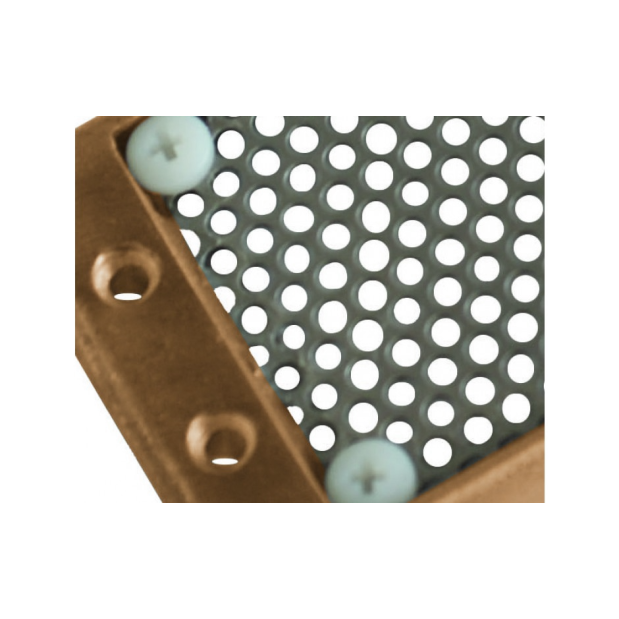

• The number after the dash in the part number indicates the size of the openings in the mesh

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDGroco#AvailabilityDescriptionUOMYour PriceQTY

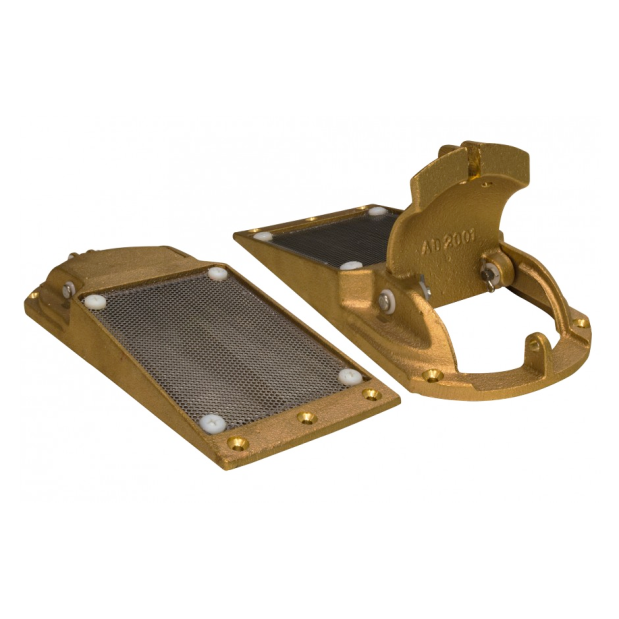

368821GRO APHS-1250-1 APHS-1250-1Loading...Perforated Hull Strainer with Access Door, Bronze 7"L x 3.38"W x 1.5"H 0.077" MeshLoading...
130667GRO APHS-2000-3 APHS-2000-3Loading...Perforated Hull Strainer with Access Door, Bronze 10.25"L x 4.38"W x 1.63"H 0.188" MeshLoading...
181050GRO APHS-3000-2 APHS-3000-2Loading...Perforated Hull Strainer with Access Door, Bronze 15.38"L x 6"W x 2"H 0.125" MeshLoading...
174771GRO APHS-6000-2 APHS-6000-2Loading...Perforated Hull Strainer with Access Door, Bronze 20.25"L x 11"W x 4"H 0.125" MeshLoading...
196587GRO APHS-6000-3 APHS-6000-3Loading...Perforated Hull Strainer with Access Door, Bronze 20.25"L x 11"W x 4"H 0.188" MeshLoading...

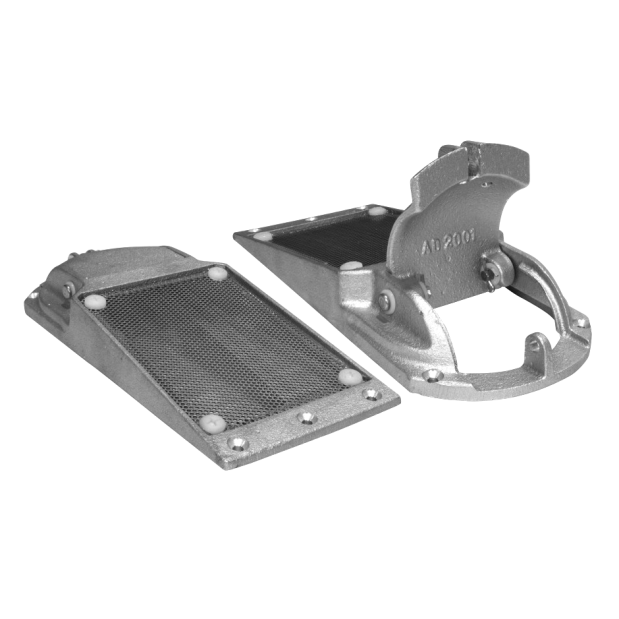

170274GRO APHS-1250-1 AL APHS-1250-1 ALLoading...Perforated Hull Strainer with Access Door, Aluminum 7"L x 3.38"W x 1.5"H 0.077" MeshLoading...
189075GRO APHS-2000-1 AL APHS-2000-1 ALLoading...Perforated Hull Strainer with Access Door, Aluminum 10.25"L x 4.38"W x 1.63"H 0.077" MeshLoading...
189638GRO APHS-3000-1 AL APHS-3000-1 ALLoading...Perforated Hull Strainer with Access Door, Aluminum 15.38"L x 6"W x 2"H 0.077" MeshLoading...
212686GRO APHS-3000-3 AL APHS-3000-3 ALLoading...Perforated Hull Strainer with Access Door, Aluminum 15.38" x 6"W x 2"H 0.188" MeshLoading...
