H3 GYPSY DRUM 12V 8MM 1000W WNDLASS
H3 Horizontal Windlasses
Lewmar H Series Windlass
Share THIS PAGE:

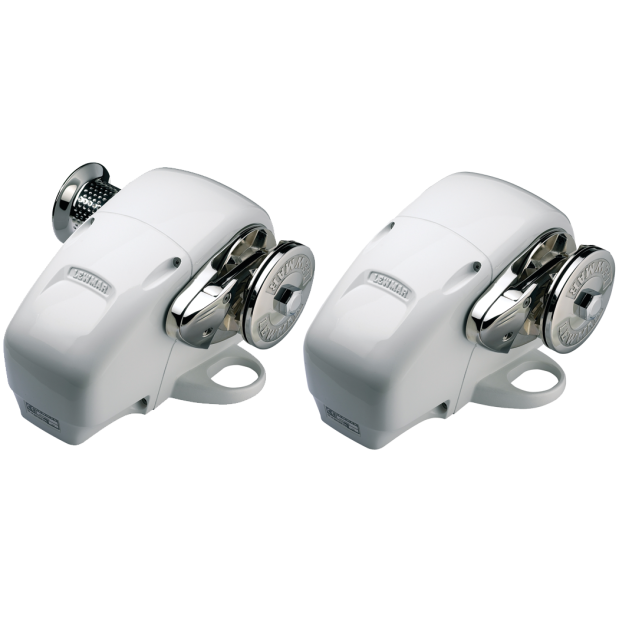

H3 Horizontal Windlasses

1960 lb Max. Pull • Typical Boat Length 36 - 45 Feet
By: Lewmar

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
The Lewmar H-series windlasses use the same reliable worm gearbox technology that Lewmar developed for the Concept and V-Series windlass ranges. The integral solenoid pack simplifies wiring and is protected by the durable maincase. These windlasses feature full power up/down functionality right out of the box. Easy, one-piece, above deck installation.

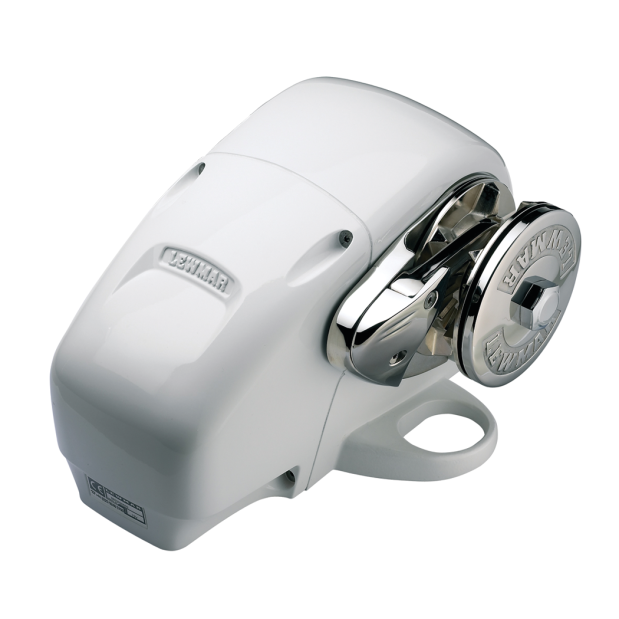

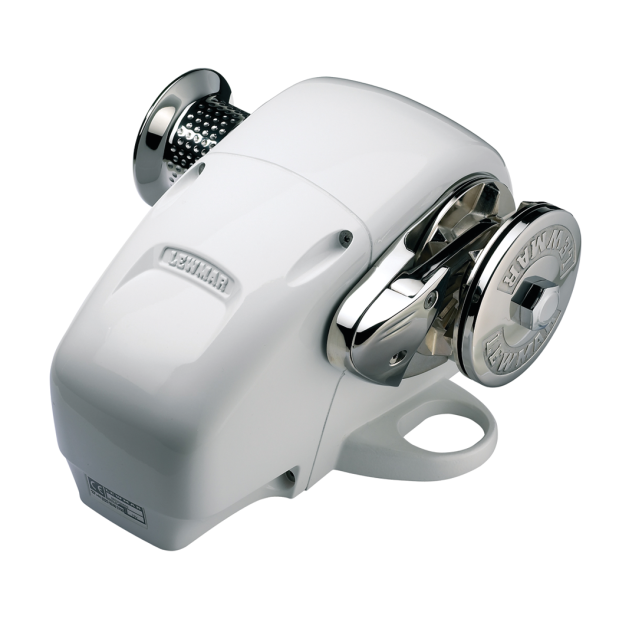

Note that the H2 and H3 Series of windlasses share the same housing. The difference between them is in the power of the series wound motors — 700W vs. 1000W.

• Dual direction operation gives total control when both retrieving or lowering the anchor
• Sealed waterproof unit requires minimum maintenance - even works under water
• Aluminium & composite main case for reduced weight
• Stainless steel warping drum with unique "wear & abrasion reduction pattern," can be operated independently of the gypsy
• Manual Recovery System (LEW#66840045) can be installed as an option
• All gypsies are designed for 5/8" 3-strand line
• Complete with guarded rocker switch, breaker, and integral dual-direction solenoid
• 3-year warranty

What's in the box — Complete with windlass, deck gasket, mounting bolts, guarded rocker switch, breaker, and integral dual-direction solenoid.

Is one of these windlasses a good choice for your boat? You can use the recommended typical boat lengths provided or, for a more rigorous determination, take the total weight of your ground tackle (anchor + rode) and multiply by 4. The maximum pull capability of the windlass should be at least as large as the resulting number.

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDLewmar#AvailabilityDescriptionUOMYour PriceQTY
145910LEW 69600541 69600541Loading...H3 Gypsy Only Windlass - Max Pull 1960 lb for Boats ∼35 - 44 ft, 5/16" HT (Only) Chain, 9/16" or 5/8", 3-Strand or 8-Plait Line, 12VLoading...
145912LEW 69600545 69600545Loading...H3 Gypsy + Drum Windlass - Max Pull 1960 lb for Boats ∼35 - 44 ft, 5/16" HT (Only) Chain, 9/16" or 5/8", 3-Strand or 8-Plait Line, 12VLoading...
145911LEW 69600542 69600542Loading...H3 Gypsy Only Windlass - Max Pull 1960 lb for Boats ∼35 - 44 ft, 3/8" BBB (Only) Chain, 5/8" (Only) 3-Strand or 8-Plait Line, 12VLoading...
145913LEW 69600546 69600546Loading...H3 Gypsy + Drum Windlass - Max Pull 1960 lb for Boats ∼35 - 44 ft, 3/8" BBB (Only) Chain, 5/8" (Only) 3-Strand or 8-Plait Line, 12VLoading...
