HWC Horizontal Windlass

For All-Chain Rode with Indepenent Capsrtan
By: Maxwell

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview

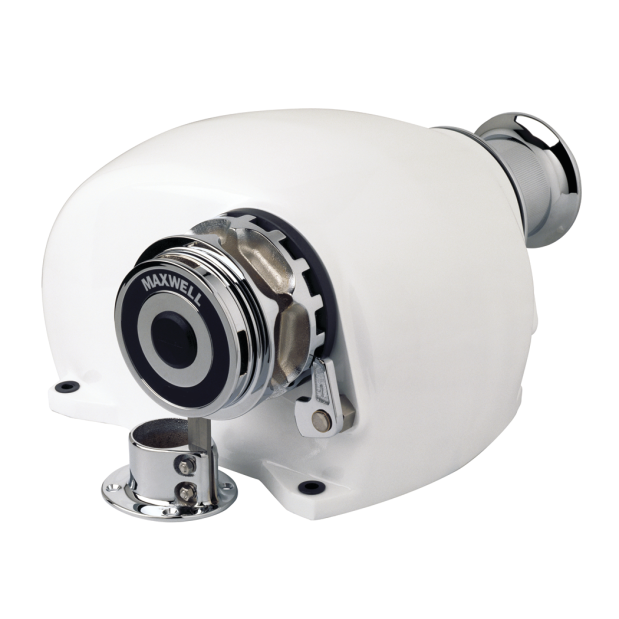

The HWC Series is designed for automatic horizontal handling of chain only anchor rodes while offering an independent capstan for the retrieval of a secondary rope and chain rode or to assist with docking procedures.
• Fully automatic single or dual direction chainwheel operation, for use with chain only rodes
• Functional rope hauling from fore and aft using independent warping drum with clutch disengagement of chainwheel for positive rope control

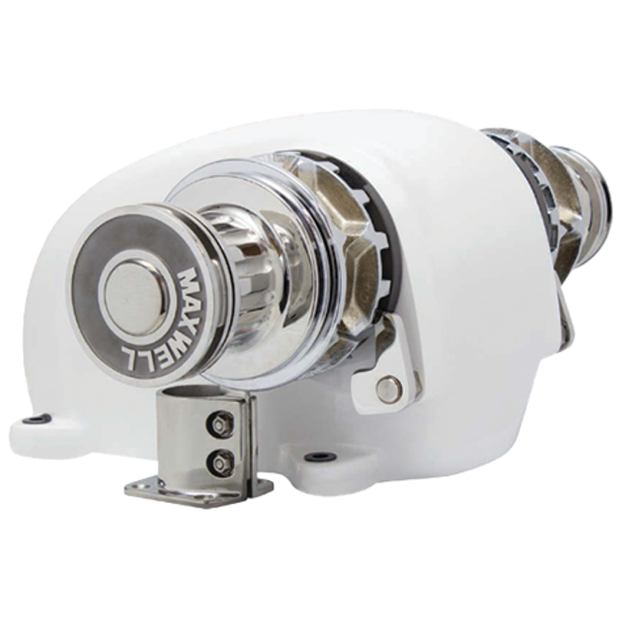

• Optional second gypsy for dual anchor handling with smooth independent control of each chainwheel via cone clutches, and a top-mounted vertical capstan
• Chain pipe assembly supplied
• Cone-type clutch/brake mechanism permits manual "free fall" anchoring. Cone clutches, unlike flat dog clutches, provide smooth progressive engagement ensuring safe and precise operator control
• Chainwheel locking pawl to assist when using warping drum independently
• Simple deck mounted installation with no under deck parts
• Simplified maintenance with ability to strip the running gear (chainwheel and drum) from the windlass without disturbing the windlass mounting
• Heavy duty, dual direction motor, designed for marine winches
• Chainwheel and warping drum of high-quality chrome finish over marine-grade bronze
• Marine-grade alloy casing pretreated, powder coated, and finished with a two component white polyurethane paint

What's in the box (U.S. models) — windlass and chainwheel, panel mounted up/down helm switch, dual direction solenoid kit, panel mounted on/off circuit breaker, two (2) deck mounted black covered low amperage foot switches, and clutch release/emergency manual retrieval handle.
Recommended options include: chain stopper (or chain snubber); see Accessories, below.
Additional options include: wired or wireless rode counters, windlass control and rode counter combo, wired or wireless handheld remote control; see Related Products.

Is one of these windlasses a good choice for your boat? You can use the recommended typical boat lengths provided or, for a more rigorous determination, take the total weight of your ground tackle (anchor + rode - presumably correctly sized for your particular vessel) and multiply by 3. The maximum pull capability of the windlass should be at least as large as the resulting number.

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDMaxwell#AvailabilityDescriptionUOMYour PriceQTY
364882MXW HWC150012V100 HWC150012V100Loading...HWC 1500 12v 3/8IN HT or PC chainLoading...
364908MXW HWC350024VXXX HWC350024VXXXLoading...HWC 3500 24v 3/8HTLoading...
364912MXW HWC350012VDCW058 HWC350012VDCW058Loading...HWC 3500 DBL 12v 3/8IN HT or PC chainLoading...
364911MXW HWC350012VDCW054 HWC350012VDCW054Loading...HWC 3500 DBL 12v 3/8IN 3B chainLoading...
364910MXW HWC350012VDCW033 HWC350012VDCW033Loading...HWC 3500 DBL 12v 5/16IN HT or 3B chainLoading...
364913MXW HWC350012VDCW016 HWC350012VDCW016Loading...HWC 3500 DBL 12v 1/2IN HT chainLoading...
364906MXW HWC350012V058 HWC350012V058Loading...HWC 3500 12v 3/8IN HT or PC chainLoading...
364904MXW HWC350012V054 HWC350012V054Loading...HWC 3500 12v 3/8IN 3B chainLoading...
364903MXW HWC350012V033 HWC350012V033Loading...HWC 3500 12v 5/16IN HT or 3B chainLoading...
364907MXW HWC350012V016 HWC350012V016Loading...HWC 3500 12v 1/2IN HT chainLoading...
428927MXW HWC1500HYD100 HWC1500HYD100Loading...MXW HWC1500HYD100 HWC 1500 HYD 3/8IN HT OR PC CHAINLoading...
364890MXW HWC150012VDCW114 HWC150012VDCW114Loading...HWC 1500 DBL 12v 3/8IN 3B chainLoading...
364887MXW HWC150012VDCW111 HWC150012VDCW111Loading...HWC 1500 DBL 12v 1/4IN HT chainLoading...
364886MXW HWC150012VDCW110 HWC150012VDCW110Loading...HWC 1500 DBL 12v 1/4IN 3B chainLoading...
364888MXW HWC150012VDCW105 HWC150012VDCW105Loading...HWC 1500 DBL 12v 5/16IN HT or 3B chainLoading...
364889MXW HWC150012VDCW100 HWC150012VDCW100Loading...HWC 1500 DBL 12v 3/8IN HT or PC chainLoading...
364883MXW HWC150012V114 HWC150012V114Loading...HWC 1500 12v 3/8IN 3B chainLoading...
364880MXW HWC150012V111 HWC150012V111Loading...HWC 1500 12v 1/4IN HT chainLoading...
364879MXW HWC150012V110 HWC150012V110Loading...HWC 1500 12v 1/4IN 3B chainLoading...
364881MXW HWC150012V105 HWC150012V105Loading...HWC 1500 12v 5/16IN HT or 3B chainLoading...
