Racor Turbine Filter Fuel Fittings - Straight Female NPTF

SAEJ1926 Straight Thread w/O-Ring to NPTF for Attaching NPT Hose Adapters to Your Racor Turbine Filter

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview

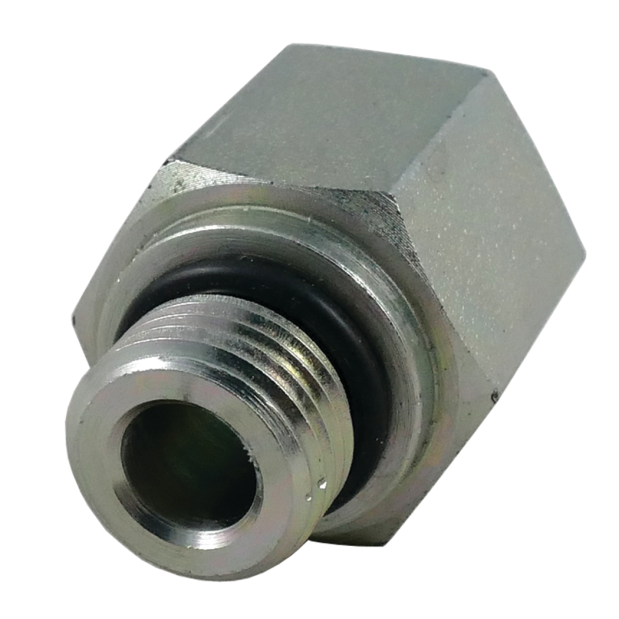

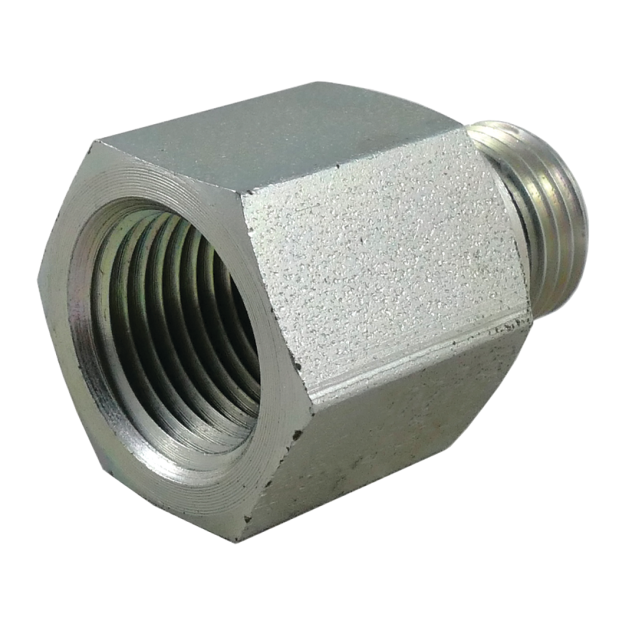

These adapter fittings thread into the O-ring sealed SAEJ1926 straight threaded ports on your Racor turbine style filter and have female NPTF* sockets which accept NPT plumbing fittings - such as hose adapters.


* Racor Turbine Series fuel ports have SAE J476 National Pipe Tapered for Fuels threads (NPTF - also known as Dryseal Pipe Thread). The crests of the threads crush slightly when tighened, allowing the flanks to make contact with each other - thus sealing the joint. Even so, use of a thread sealant (not Teflon® tape) is recommended to ensure a leak-proof seal. To avoid system contamination, do not apply sealant on the first few threads.
NPTF threads are compatible with NPT fittings.

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDParker Hannifin Corp#AvailabilityDescriptionUOMYour PriceQTY
200458PKR 911-08-F4 911-08-F4Loading...Racor Straight Fuel Line Fitting - 1/4" NPTF Female, Fits 500 Turbine FiltersLoading...
200459PKR 911-08-F6 911-08-F6Loading...Racor Straight Fuel Line Fitting - 3/8" NPTF Female, Fits 500 Turbine FiltersLoading...
200460PKR 911-08-F8 911-08-F8Loading...Racor Straight Fuel Line Fitting - 1/2" NPTF Female, Fits 500 Turbine FiltersLoading...
200454PKR 911-010-F4 911-010-F4Loading...Racor Straight Fuel Line Fitting - 1/4" NPTF Female, Fits 900 & 1000 Turbine FiltersLoading...
200455PKR 911-010-F6 911-010-F6Loading...Racor Straight Fuel Line Fitting - 3/8" NPTF Female, Fits 900 & 1000 Turbine FiltersLoading...
200456PKR 911-010-F8 911-010-F8Loading...Racor Straight Fuel Line Fitting - 1/2" NPTF Female, Fits 900 & 1000 Turbine FiltersLoading...
