27.5IN DIA WHT MOORING BUOY
CC Series Mooring Buoy
Share THIS PAGE:

CC Series Inflatable Mooring Buoy

A Reliable, Versatile Marker, Flotation or Mooring Buoy • Hole Through the Middle

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
Flexible center tube allows for use in variety of applications including long-lining, floats for fish farm pens, and more recently, for towing sonic cannons in gas and oil exploration.

• Reliable performance, even in the most extreme conditions
• May be strung horizontally or vertically

When strung with chain as a mooring ball, insert a piece of lubricated schedule 40 PVC pipe into the uninflated, lubricated float extending 3" beyond each end; secure the chain through the top end of the pipe with a suitable pin or bolt and attach a shackle to the bottom end of the chain.


Heavy on the technical side...

The CC Series Mooring System:
When using the CC series as a mooring ball, follow these instructions to achieve the maximum use and durability of this product.
• 1) The CC series has a flexible center tube. If you use a chain, you must first insert a rigid PVC pipe. (See Specification Table for sizing.) DO NOT inflate the buoy until you have inserted the pipe.
• 2) Lubricate both the internal tube channel and the PVC pipe with oil prior to inserting. Make the length of the pipe so that 3 inches of pipe will extend beyond the top and bottom of the buoy.

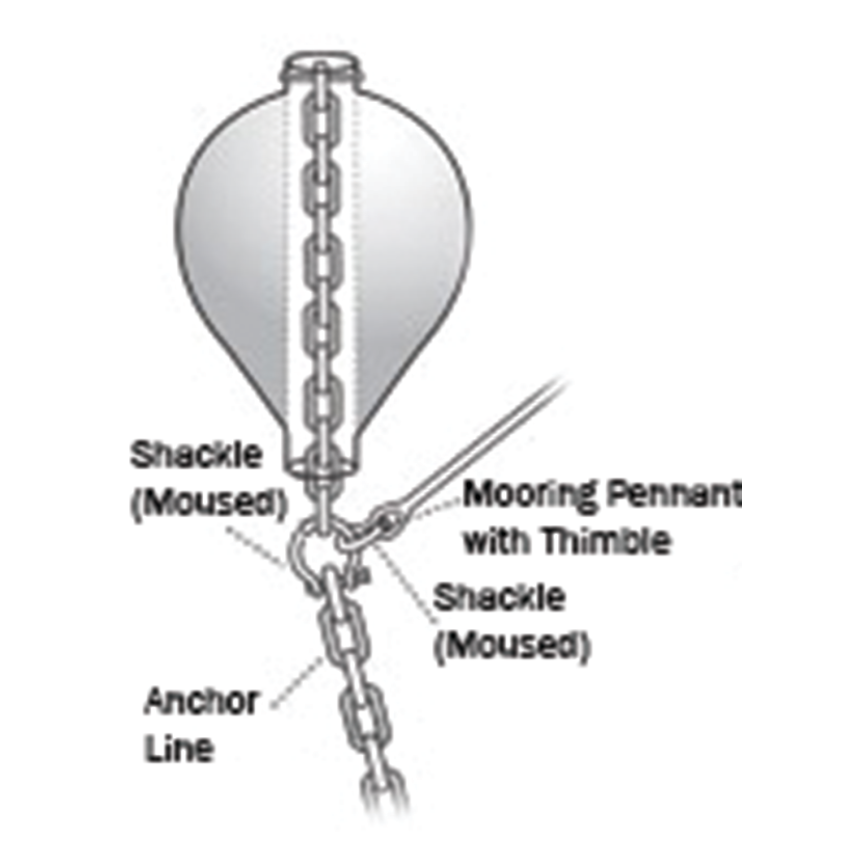

• 3) Run a captive pin (choose a suitable size for your load) through the extended top of the PVC pipe to secure the chain, and attach a shackle for your pennant to the chain at the bottom of the buoy. Note that in the accompanying diagram, a separate section of chain is run through the buoy.

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDPolyform US#AvailabilityDescriptionUOMYour PriceQTY
209094PLY CC1R CC1RLoading...CC-1 Center Hole Inflatable Mooring Buoy - Red, 10.5" x 13.5" (27 lb Buoyancy)Loading...
441784PLY CC 2 RED CC 2 REDLoading...CC-2 Center Hole Inflatable Mooring Buoy - Red, 14" x 16.5" (52 lb Buoyancy)Loading...
443726PLY CC2W CC2WLoading...CC-2 Center Hole Inflatable Mooring Buoy - White, 14" x 16.5&##34; (52 lb Buoyancy)Loading...
378732PLY CC 3 RED CC 3 REDLoading...CC-3 Center Hole Inflatable Mooring Buoy - Red, 17" x 21" (108 lb Buoyancy)Loading...
131216PLY CC3W CC3WLoading...CC-3 Center Hole Inflatable Mooring Buoy - White, 17" x 21" (108 lb Buoyancy)Loading...
437714PLY CC4W CC4WLoading...CC-4 Center Hole Inflatable Mooring Buoy - White, 20" x 25.5" (156 lb Buoyancy)Loading...
129772PLY CC5W CC5WLoading...CC-5 Center Hole Inflatable Mooring Buoy - White, 27" x 33" (384 lb Buoyancy)Loading...
160564PLY CC6W CC6WLoading...CC-6 Center Hole Inflatable Mooring Buoy - White, 32" x 43" (791 lb Buoyancy)Loading...
Add To Cart
