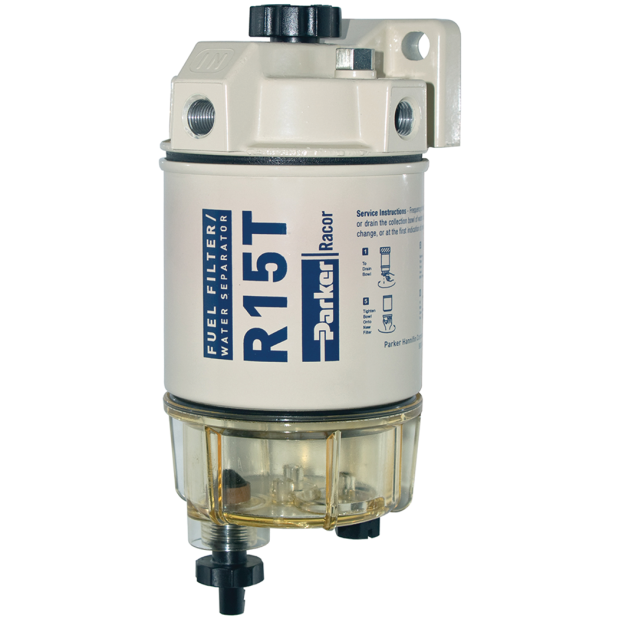

SPIN-ON FUEL FILTER 10MIC

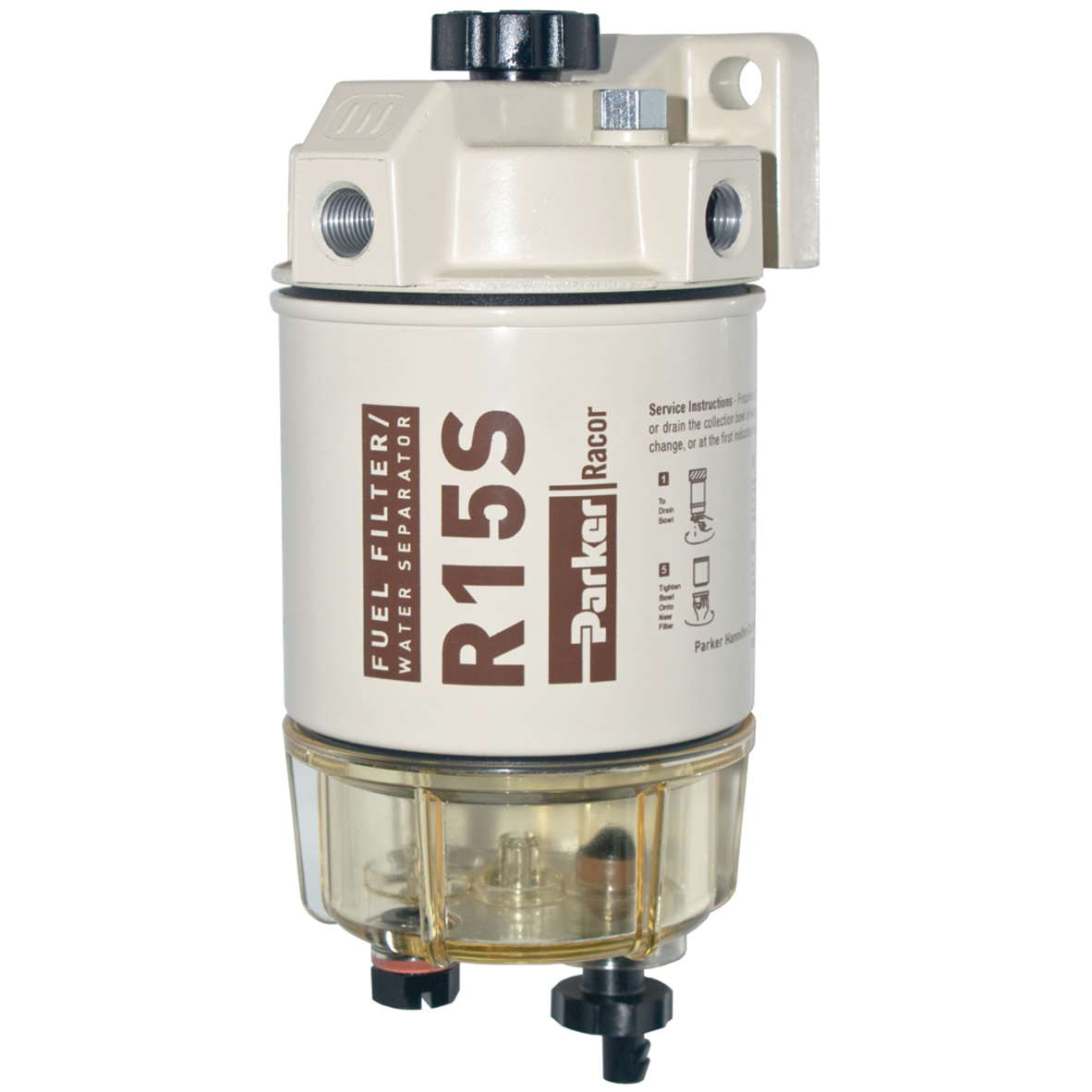

Series 200 Diesel Spin-On Fuel Filters
Share THIS PAGE:

215R Series Diesel Spin-On Fuel Filters - with Clear Bowl

15 GPH Filters • 2 and 10 Micron Models
By: Racor

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
The 215 series fuel filter and water separators come standard with an integral priming pump and a see-thru contaminant bowl, which can operate in applications up to 30 psi.

An upgrade feature is the optional 200-watt in-bowl heater for colder operating conditions.
Units may be ordered with an in-bowl 200W, thermostatically controlled resistance heater for outside applications.
This design places the heat source directly below the filter element to maximize heat transfer.

Applications include light-duty and medium-duty trucks and vessels, construction, agricultural and other diesel-powered equipment.

• Three 1/4-18 ports - a central inflow and right or left outflow ports to accommodate various installation requirements
• Top-mounted integral priming pump; screw-in to close
• See-thru bowl with available metal bowl option
• Can be used on both vacuum and pressure side of system
• Note: a water sensor kit or Racor relay kit might be necessary with heater option

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDRacor#AvailabilityDescriptionUOMYour PriceQTY
82974RAC 215R2 215R2Loading...Series 200 Diesel Spin-On Fuel Filters, 215R Filter with 2 Mic Element, 15 gphLoading...
157501RAC 215R10 215R10Loading...Series 200 Diesel Spin-On Fuel Filters, 215R Filter with 10 Mic Element, 15 gphLoading...
Add To Cart
