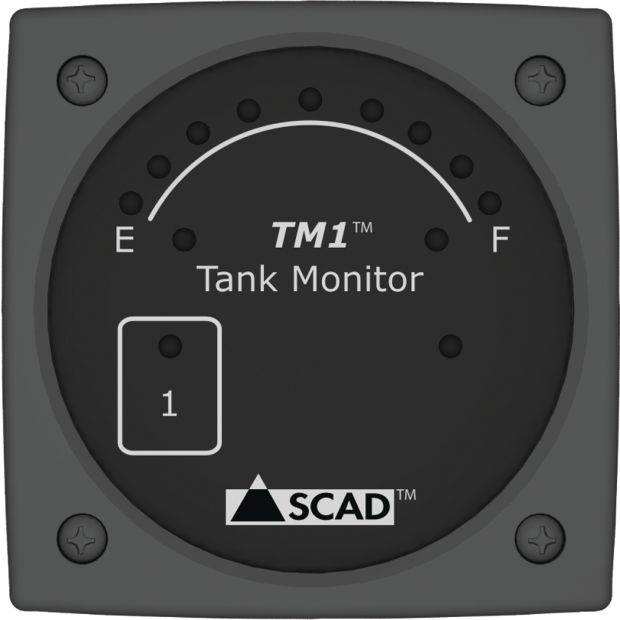

TM1 Tank Monitor with External Sensor

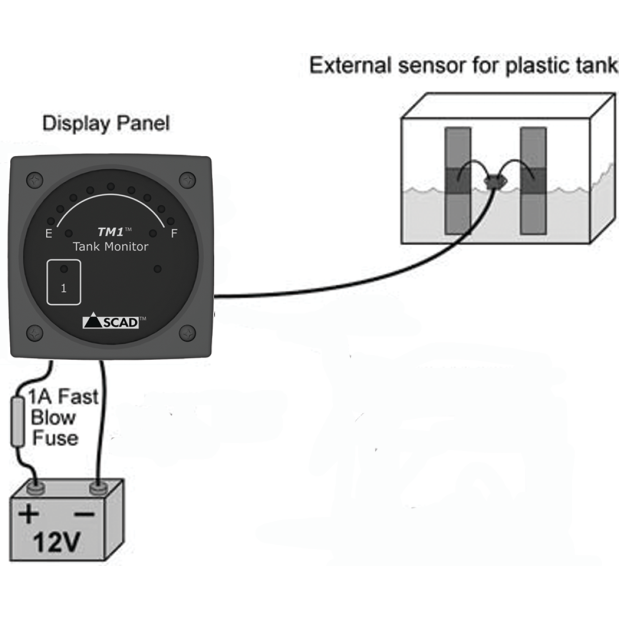

The SCAD TM1 is an easy to install and cost effective solution to monitoring the liquid level in a tank up to 30 inches tall by simply touching a pad. The system uses an external stickon level sensor (included) that cannot get fouled. The monitor automatically checks and alerts when liquid levels are critical and provides external alert power.
• Monitor water, grey water or holding tank level by simply tapping a touchpad; Compatible most fuel float sensors

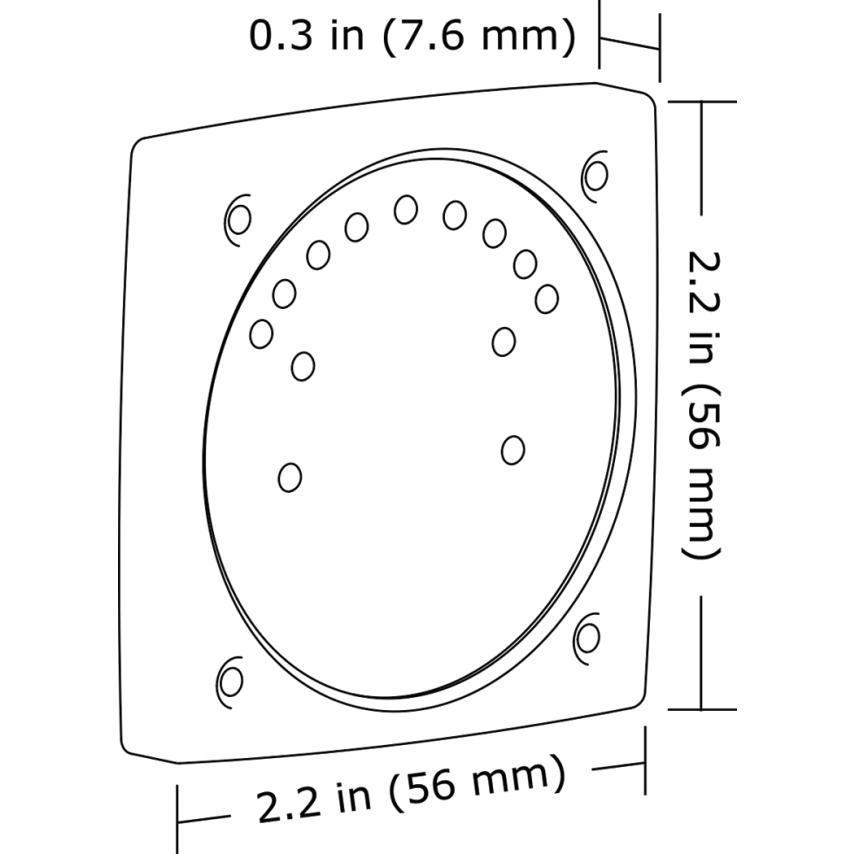

• Compact surface mount size; 1/2 inch hole required for wires
• Continuous read function provides handsfree monitoring while filling or emptying tanks

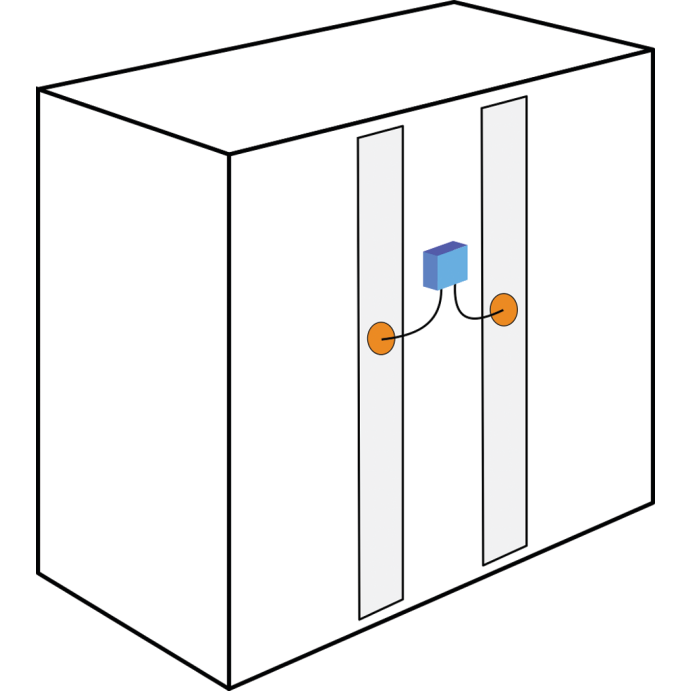

• External sensor easily sticks onto the outside of plastic and composit tanks and cannot foul (for water and waste)
• Optional internal sensor available for metal tanks
• Visual alarm that is user selectable on for empty or full
• Extermal alarm control wire
• Accomodates all tank shapes
• Easy to install, easy to operate, reliable and cost effective solution for monitoring tank levels
• External sensor (not included) eliminates fouling;
• Tank level can be continuously viewed while filling or emptying a tank
• Powers external devices during alert conditions
• Small surface mount foot print saves space
• Can be used with a variety of sensors
• Visual alarm on empty or full, or no alarm
