SC-USB-F1 Flip Pro Ultra-fast USB Socket

Ultra-fast USB charging for the next generation boater.

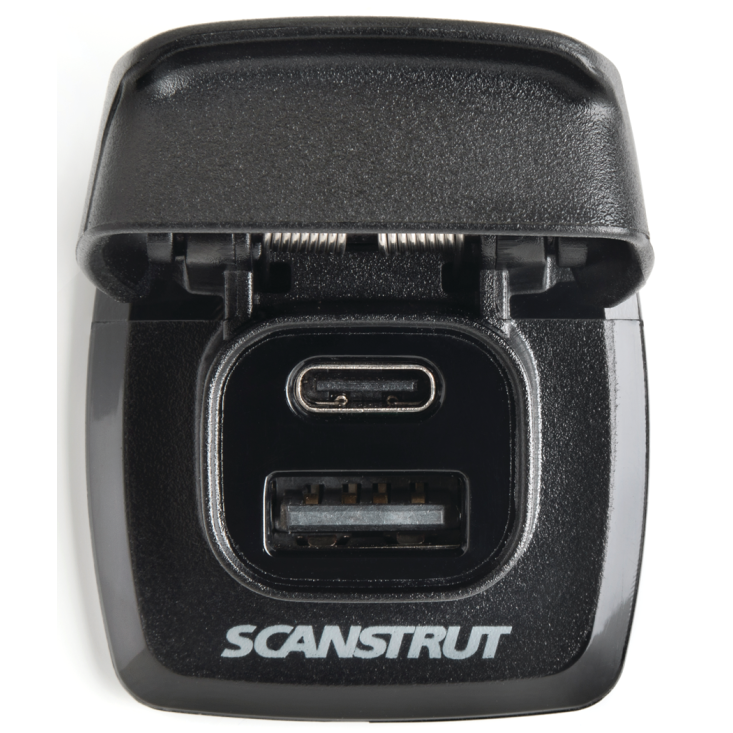

Flip Pro is designed for use with either a 12V or 24V input and features 1x USB-A and 1x USB-C charging port. This provides the optimum choice of connection for any device and the fastest charging for your device onboard. Both USB-A and USB-C ports can support USB 2.0 to 3.2

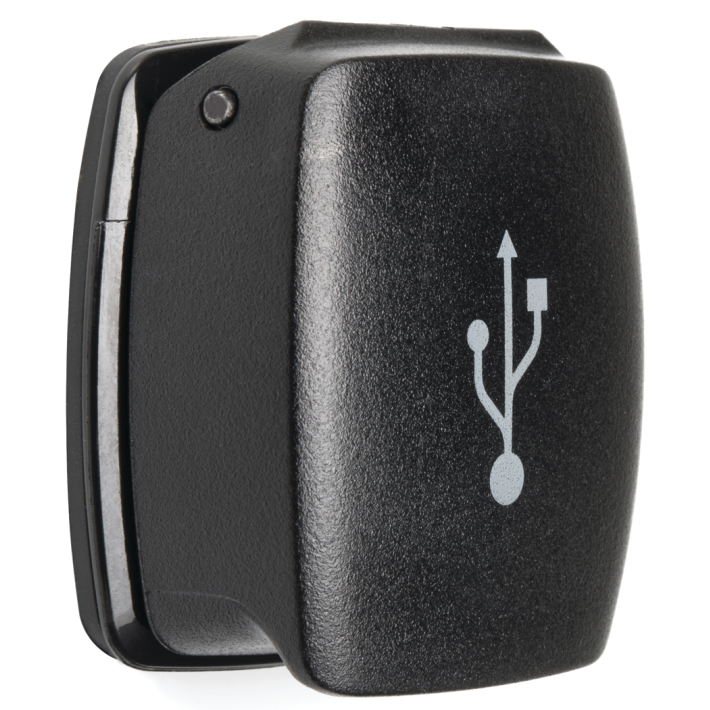

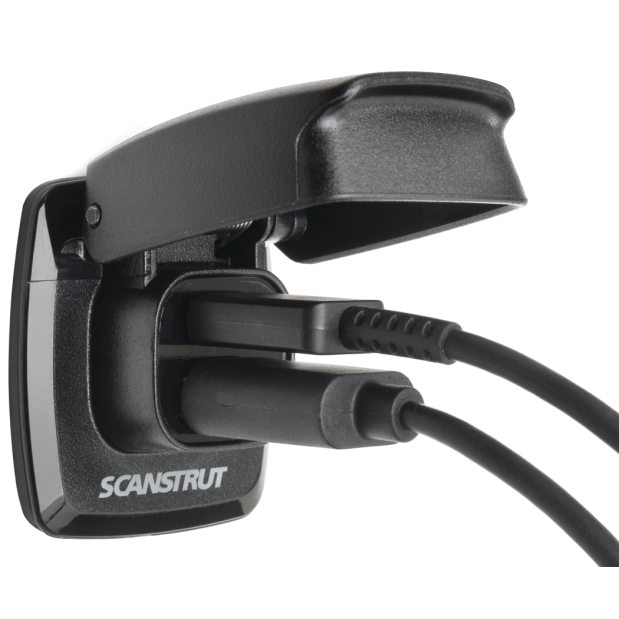

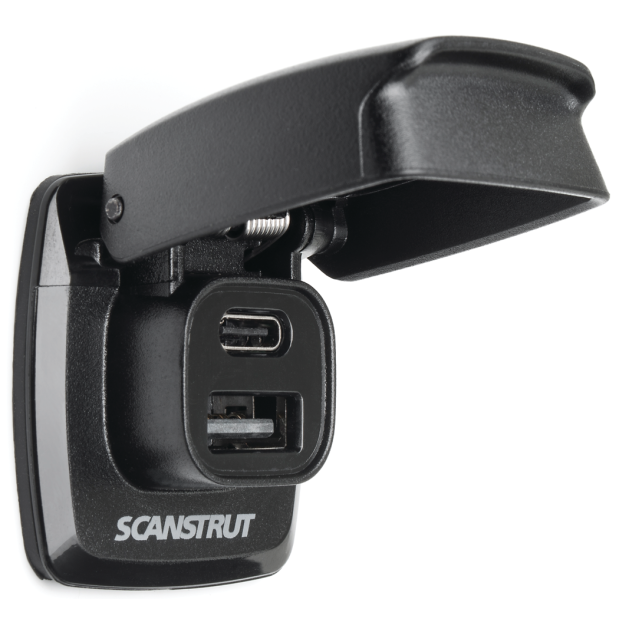

When not in use, the spring-loaded cap remains tightly closed, protecting the ports from the elements. When charging, it quickly locks open to protect your cables when plugged in.
Featuring a super-compact footprint, Flip Pro is constructed from premium, marine-grade materials. and is IPX4 waterproof, making it completely washdown-ready.
Flip Pro is FAST! It will charge at 36W on a 12V system or up to 60W on a 24V system. This makes it perfect for charging modern laptops via the USB-C port. It’s also 2x faster for charging large tablets and is designed to effortlessly charge both an iPad Pro & iPhone at the same time.

USB – C output:
• 60W max on 24V system
• 36W max on 12V system
USB – A output:
• 36W max
The install cut-out matches those of standard USB sockets for easy retrofit or swap of an existing USB charger, allowing you to keep up with the heavier power draws of modern electronic devices.

Universal
• Universal fit for any USB-A or USB-C connectors.
• Fast charge (60W max) up to 2 devices at a time.

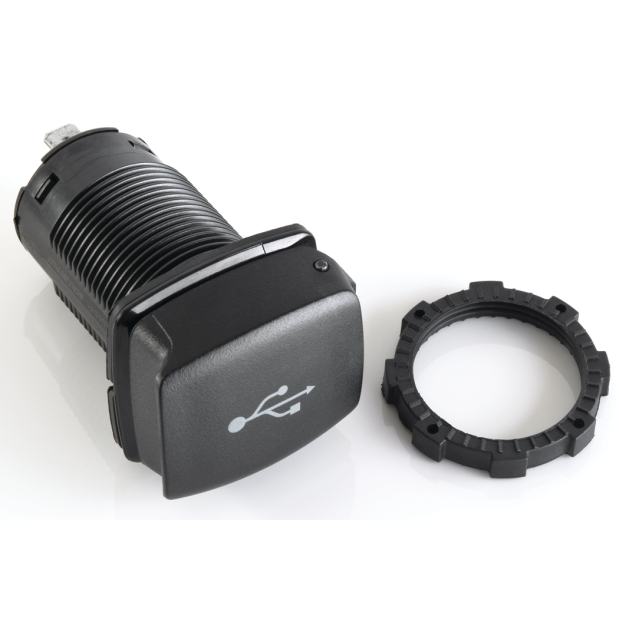

• Easy Install, using standard USB mounting hole - 29mm (1 1/8”)

Washdown Proof
IPX4 waterproof with the cover closed.

Marine Ready
• Internal anti-corrosion protective coating
• UV resistant.
• 316 stainless hinge and spring.

Electrical Information
• Input voltage: 10-30V DC (12/24V System)
• Input current Max: 6A (10A fuse recommended)
• Standby power draw: 0.01W

Important information The charge cable supplied with your device (tablet, phone, action camera, etc) must be used to achieve maximum charge performance from this charger. Phones will charge at the same speed whether on a 12V or 24V input voltage system. However, a 24V system must be used to get the full 60W output suitable for fast charging laptops.
