3 Series 37 mm Flat Base-SS Cheek

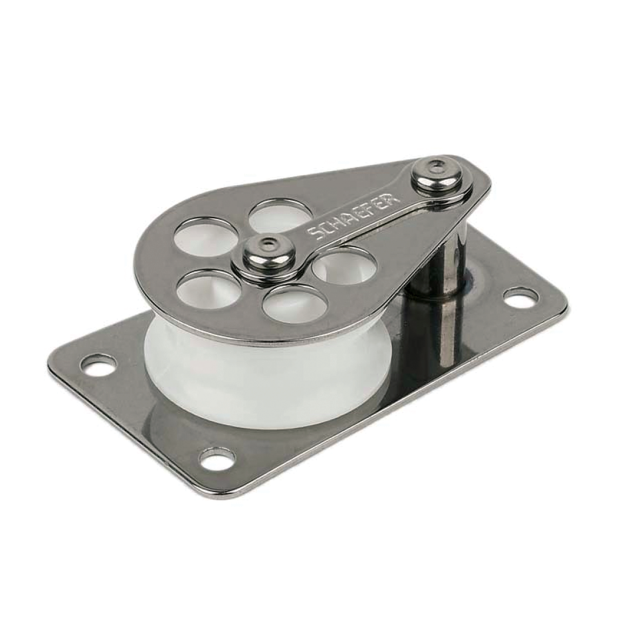

30-27 of Schaefer Marine 3 Series Flat Base-SS Cheek

CHECK BLOCK FLAT BASE S.S.

SKU: 132335 Item ID: SCH 30-27
  • Delrin Sheave
Your Price:$88.04/ Each
Availability:
2 In Stock
Ships immediately
Quantity:
Return Policy

Description

3 Series Cheek Block with Stainless Steel cheek and base. Delrin(tm) sheave ensures smooth operation and high safe working load. Stainless Steel base distributes loads to a large surface area. Sheave Dia. 1-7/16" (37 mm), Max Line 7/16" (11 m), Length 2-7/8" (73 mm), Width 1-3/4" (44 mm), H 3/4" (19 mm), Fasteners (4) #10 RH (5 mm), C/C 2-3/8" (60 mm), SWL 1000 lbs. (450 kg), Weight Stain. 2.6 oz. (74 g)

Are You a Pro?

Fisheries offers discounted pro pricing, real-time inventory and same-day shipping -- as well as our solid customer service reps.

Apply Now

Specifications

MFG #:30-27
Sheave Diameter
1-7/16" (37 mm)
Max Line
7/16" (11 m)
Length
2-7/8" (73 mm)
Width
1-3/4" (44 mm)
Height
3/4" (19 mm)
Fasteners
(4) #10 RH (5 mm)
Safe Working Load
1000 lbs. (450 kg)
Weight
2.6 oz. (74 g)
Warning
This item may be known to the State of California to cause cancer, birth defects, or other reproductive harm.
Barcode
740507025327
