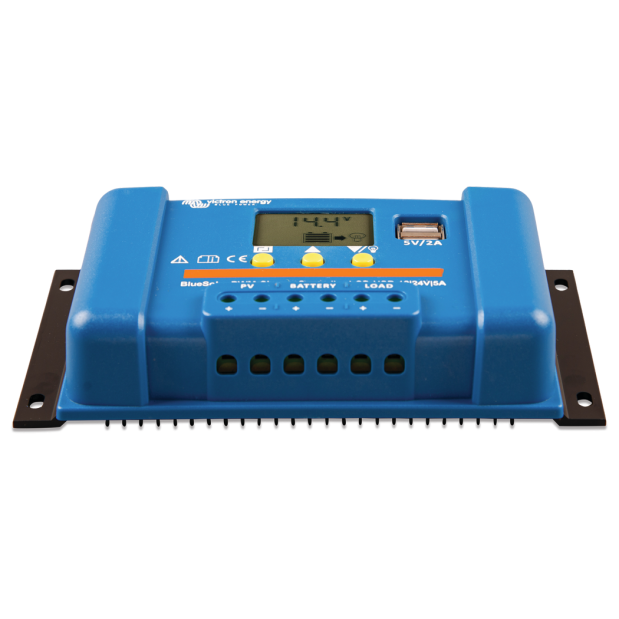

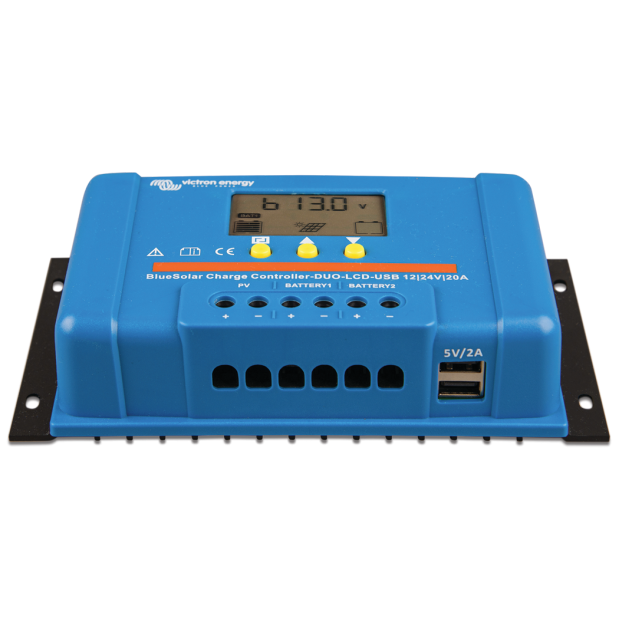

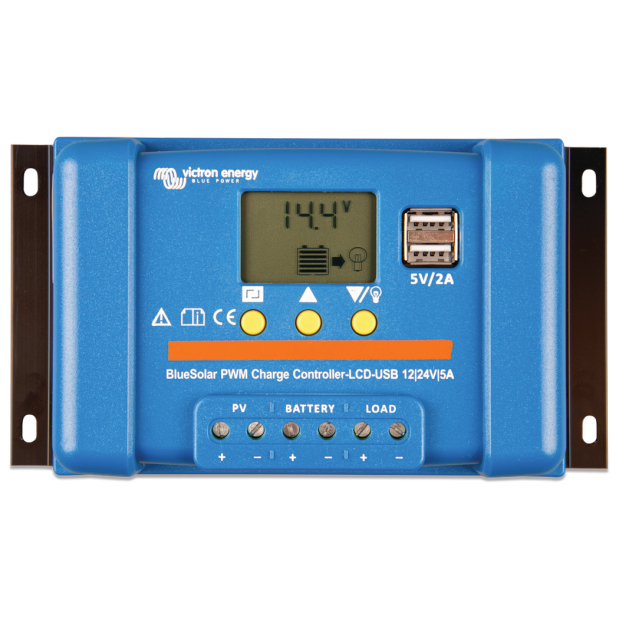

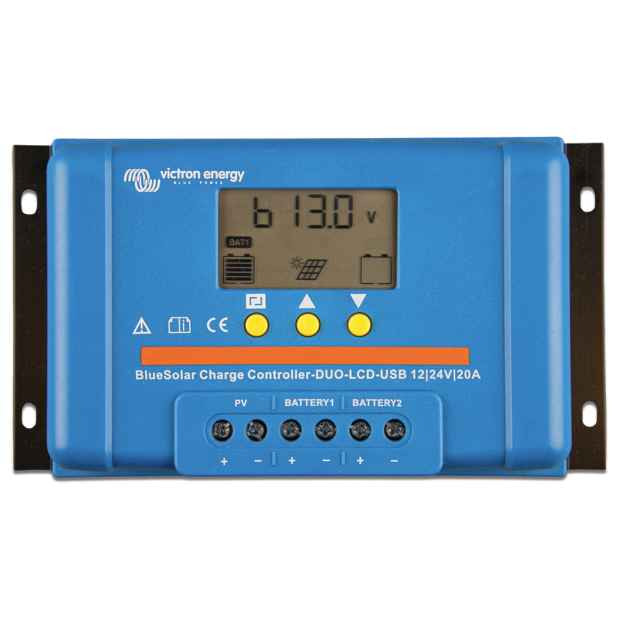

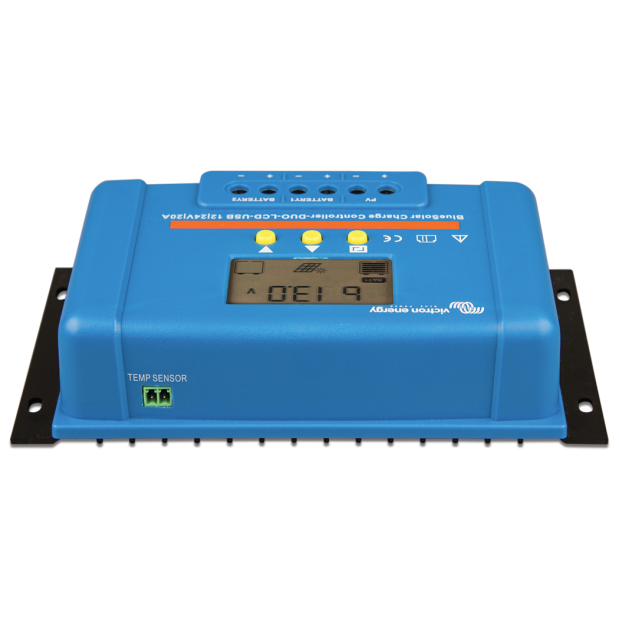

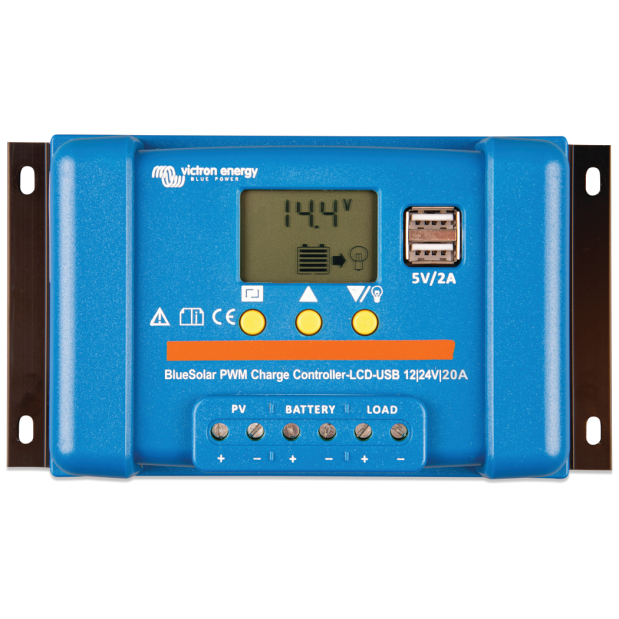

BlueSolar PWM Charge Controller LCD & USB

Liquid crystal display
For status monitoring and set-up

Load output
Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage. Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual. The connect and disconnect voltages are adjustable.

Day/night timing of the load output
This option allows for a pre-set ON-time after dusk.

Programmable battery charge algorithm
Preprogrammed algorithms for AGM, GEL, Flooded or LiFePO4 batteries (with internal BMS only)

Two 5 Volt USB outputs
Maximum current (both outputs combined): 2A

Overload protection
Shut down after 60s in case of 130% load, Shut down after 5s in case of 160% load, Short circuit: immediate shut down
