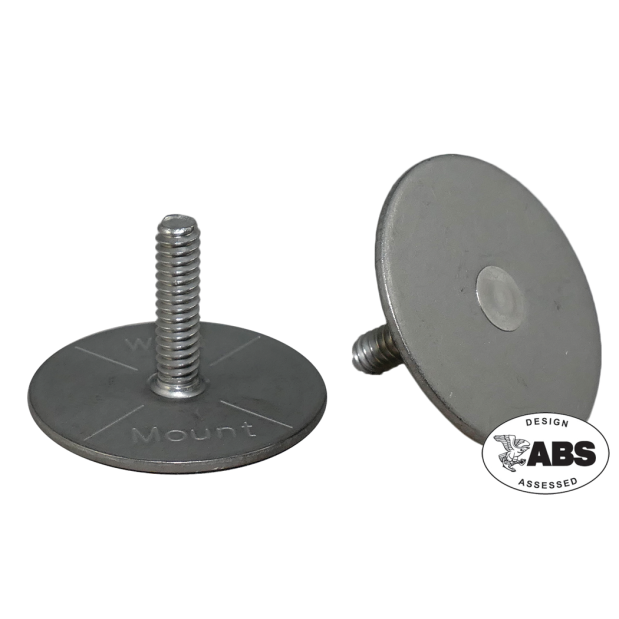

10-24 Threaded 304 Stainless Steel Stud Mounts

Model ST-125-1024 • Attach a Stud to Virtually Any Surface

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
These 304 alloy Stainless Steel Studs mount to virtually any surface using Weld Mount acrylic adhesive. This is a structural part with 500 pounds of tensile strength and 650 pounds in shear.
They are ideal for mounting wire clamps and securing items which require a relatively small stud diameter.

• Acrylic can be applied to either surface of the base plate - for front or rear side mounting
• Base plate is 1.25" in diameter
• Available studs range from 1/2" to 2-1/2" tall
• 500 lb tensile strength
• 650 lb shear strength

ABS Certification
Weld Mount has received PDA Certification (preliminary design analysis) by ABS (American Bureau of Shipping). This certification is required to allow the use of Weld Mount products on commercial ships (carrying passengers), as well as military and other vessels built to ABS standards.
This ABS Certification will allow commercial builders to know with confidence that Weld Mount products are appropriate for installation in their vessels.

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDWeld Mount#AvailabilityDescriptionUOMYour PriceQTY
443088WLD 102408100 102408100Loading...304 SS #10-24 Stud on 1-1/4" Base - 1/2" Tall (Pkg 100)Loading...
190603WLD 102412 102412Loading...304 SS #10-24 Stud on 1-1/4" Base - 3/4" Tall (Pkg 10)Loading...
190579WLD 102412100 102412100Loading...304 SS #10-24 Stud on 1-1/4" Base - 3/4" Tall (Pkg 100)Loading...
443089WLD 102416100 102416100Loading...304 SS #10-24 Stud on 1-1/4" Base - 1" Tall (Pkg 100)Loading...
389874WLD 102420 102420Loading...304 SS #10-24 Stud on 1-1/4" Base - 1-1/4" Tall (Pkg 10)Loading...
389863WLD 102420100 102420100Loading...304 SS #10-24 Stud on 1-1/4" Base - 1-1/4" Tall (Pkg 100)Loading...
190604WLD 102424 102424Loading...304 SS #10-24 Stud on 1-1/4" Base - 1-1/2" Tall (Pkg 10)Loading...
190580WLD 102424100 102424100Loading...304 SS #10-24 Stud on 1-1/4" Base - 1-1/2" Tall (Pkg 100)Loading...
443090WLD 102428100 102428100Loading...304 SS #10-24 Stud on 1-1/4" Base - 1-3/4" Tall (Pkg 100)Loading...
443101WLD 102432 102432Loading...304 SS #10-24 Stud on 1-1/4" Base - 2" Tall (Pkg 10)Loading...
443091WLD 102432100 102432100Loading...304 SS #10-24 Stud on 1-1/4" Base - 2" Tall (Pkg 100)Loading...
389875WLD 102436 102436Loading...304 SS #10-24 Stud on 1-1/4" Base - 2-1/4" Tall (Pkg 10)Loading...
389864WLD 102436100 102436100Loading...304 SS #10-24 Stud on 1-1/4" Base - 2-1/4" Tall (Pkg 100)Loading...
