ZF Split Shaft Couplings
- Ductile Iron - Cast
Description
All things being equal, split couplings are easier to install and remove than solid couplings.
• Order a "No Bore" coupling for machining a custom shaft size
• "No Bore" split couplings come with a 3/4" to 1-1/4" pilot bore

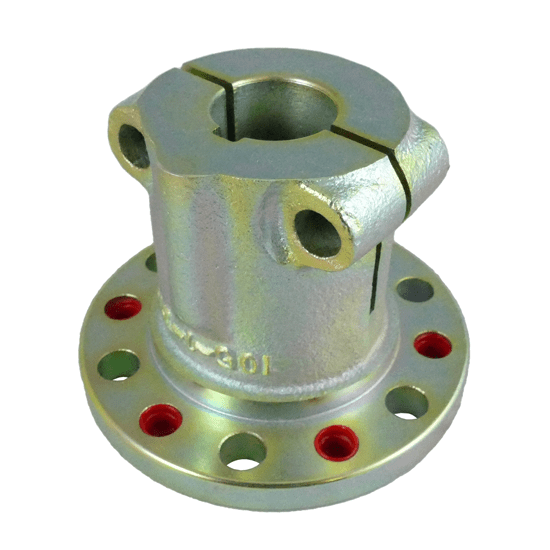

• Shown with a male (M Type) pilot
• In the table below, these are the codes for transmission types: A=Allison, B/W=Borg Warner, C=Capitol, H=Hurth, N=Newage, P=Paragon, TD=Twin Disc, VP=Volvo Penta, Y=Yanmar, ZF=ZF
• Shaft Range indicated is the available range for that model of coupling
• Note: in the table, the easiest way to locate the coupling you need is to start with the flange diameter, then shaft size and pilot, etc.
Specifications
MFG #:50575200U
| Coupling Size - Range x Size5-3/4"x2"
Bolt Circle
4-3/4"
Size
2"
Pilot
3" x 1/4"F
Shaft Range
1-1/4" - 2-1/4"
Bolt Size
5/8"
# Bolts
6
Type
H, TD, ZF
Length
4-3/16"
Keyway
1/2"
Flange
5-3/4"
Warning
This item may be known to the State of California to cause cancer, birth defects, or other reproductive harm.
Barcodes
5057522000
50575200U
]C15057522000
50575200U
]C15057522000
Product Options
| Selected | SKU # | MFG # | Availability | Coupling Size - Range x Size | Price | Quantity | |
|---|---|---|---|---|---|---|---|
| SKU #: 177402 | MFG #: 5010503000 | Special Order Only | 10-1/2"x3" | $2,160.05 | |||
| SKU #: 180578 | MFG #: 50476A1250 | Special Order Only | 4-3/4"x1-1/4" | $144.01 | |||
| SKU #: 160762 | MFG #: 50476A1500 | Special Order Only | 4-3/4"x1-1/2" | $139.82 | |||
| SKU #: 156052 | MFG #: 5057521500 | Special Order Only | 5-3/4"x1-1/2" | $289.22 | |||
| SKU #: 142820 | MFG #: 5057521750 | Special Order Only | 5-3/4"x1-3/4" | $303.70 | |||
| SKU #: 142821 | MFG #: 50575200U | Special Order Only | 5-3/4"x2" | $436.54 | |||
| SKU #: 156055 | MFG #: 505752NOBO | Special Order Only | 5-3/4"xNo Bore | $289.22 |
