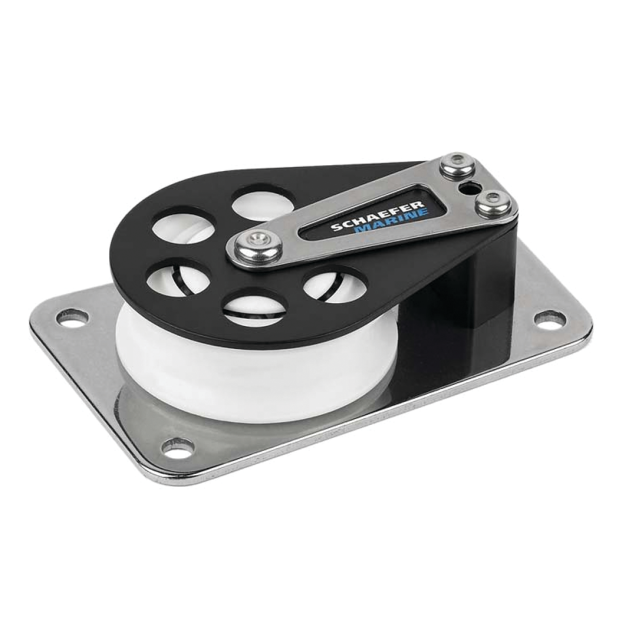

60 mm Flat Base Ball Bearing Cheek Block
60 mm Flat Base Ball Bearing Cheek Block - Delrin Sheave
SKU: 25611 Item ID: SCH 706-11
- Delrin Sheave
Description
Flat, stainless base plate distributes load to a larger surface area than other designs which place loads on mounting bolts only. Use on spars and decks to lead sheets, halyards, reefing gear, and any control line requiring a strong, smooth lead.
• All bases are polished stainless steel
• All cheek plates are black anodized aluminum
• SWL of Series 7 blocks is 2250 lbs. (1020kg)
Specifications
MFG #:706-11
Cheek Material
Aluminum
Length
4-3/8" (111mm)
Max. Line
1/2" (13mm)
Sheave Dia.
2-3/8" (60mm)
Sheave Material
Delrin
SWL
2,250 lbs. (1020kg)
Weight
9.6 oz. (272g)
Width
2-3/4" (70mm)
Barcode
740507011184
