984F Cubitron II Metalworking Grinding Belts
984F Cubitron II Metalworking Grinding Belts
Share THIS PAGE:

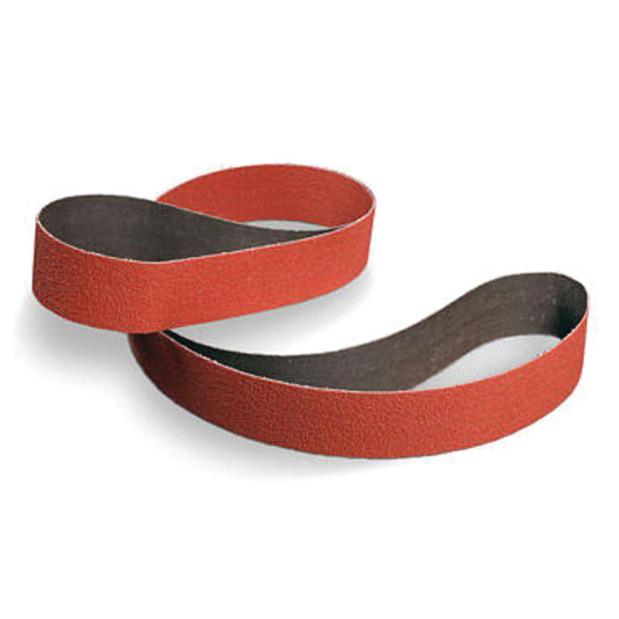

984F Cubitron II Metalworking Grinding Belts

Revolutionary Cubitron II Abrasive
By: 3M

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
Hands down the fastest cutting, longest lasting belt for stainless steel on the market.
3M's top-of-the-line belt for stainless steel, aluminum, and softer metal applications.
These belts average up to 30% faster cutting on hard-to-grind metals than the next-best competitive belt.

Made using 3M's breakthrough Cubitron II grain abrasive, this belt cuts faster, and increases productivity compared to other leading ceramic belts.
Lasts up to 4 times as long as conventional ceramic/aluminum oxide belts.

Cubitron II is a revolutionary 3M™ precision-shaped ceramic grain technology.
It is engineered with mineral crystals that are sharp-edged, fast-cutting, and shaped like pyramids which are electrostatically oriented so they point upwards - like sharp peaks. The peaks act like individual cutting tools - slicing through metal, wearing evenly, running cooler, and providing super-long life and cutting consistency.
Mineral breakdown is optimized because, instead of getting rounded as they wear, the pyramids continuously fracture to form brand new, sharp, cutting edges — maximizing performance and belt life.

By contrast, conventional ceramic abrasive grain is irregular in shape. Instead of a clean slicing action, the grain "plows" through the metal, causing heat build up, slower cutting and shorter life. See illustration at left.

• Premium 3M™ ceramic grain belt constructed on a very heavy YF weight, water resistant laminated polyester cloth backing for added durability
• Runs cooler — diverts heat from the workpiece and belt to the swarf
• Helps eliminate burnishing and heat stress
•Note - "+" grits indicate abrasive particles of the specified grade, and finer
NOTE — These standout belts are available in many sizes (too many to list here).
Please call 1-800-426-6930 to inquire.



How to Measure a Sanding Belt
Abrasive belts are always sized Width x Length (circumference).

To measure the Width of the belt:
1) Lay the belt on a flat surface and measure the width.

To measure the Length of the belt:
1) Make a small mark on the inside of the belt with a pen or marker
2) Make a corresponding mark on a large flat surface, benchtop or floor
3) Slowly roll the belt through a full rotation until the mark on the inside of the belt is once again touching the flat surface
4) Make a mark on the flat surface where it touches
5) Measuring between the 2 marks will give you the length of the belt

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item ID3M#AvailabilityDescriptionUOMYour PriceQTY
431237MMM 55057 55057Loading...2" x 72" 984F Cubitron II Metalworking Belt - 80+ Grit (25)Loading...
431236MMM 55034 55034Loading...2" x 72" 984F Cubitron II Metalworking Belt - 60+ Grit (25)Loading...
391218MMM 27516 27516Loading...2" x 72" 984F Cubitron II Metalworking Belt - 36+ Grit (50)Loading...
431239MMM 55056 55056Loading...2" x 132" 984F Cubitron II Metalworking Belt - 80+ Grit (25)Loading...
431238MMM 55044 55044Loading...2" x 132" 984F Cubitron II Metalworking Belt - 60+ Grit (25)Loading...
439573MMM 55069 55069Loading...2-1/2" x 60" 984F Cubitron II Metalworking Belt - 36+ Grit (50)Loading...
391149MMM 55049 55049Loading...3-1/2" x 15-1/2" 984F Cubitron II Metalworking Belt - 80+ (50)Loading...
391143MMM 55042 55042Loading...3-1/2" x 15-1/2" 984F Cubitron II Metalworking Belt - 60+ (50)Loading...
431241MMM 55059 55059Loading...6" x 48" 984F Cubitron II Metalworking Belt - 80+ Grit (20)Loading...
431240MMM 55037 55037Loading...6" x 48" 984F Cubitron II Metalworking Belt - 60+ Grit (20)Loading...
431242MMM 55071 55071Loading...6" x 48" 984F Cubitron II Metalworking Belt - 36+ Grit (10)Loading...
Add To Cart
