7IN GRY MED RIBBED DISC PAD FACE PLATE
Ribbed Grinding Disc Pad Face Plate
Share THIS PAGE:

Ribbed Grinding Disc Pad Backing/Face Plate

For 5/8-11 Long or Short Shaft Grinders
By: 3M

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
For use with any 5" or 7" grinding disc.
Use these Ribbed Backing Plates, between the grinding disc and the hub, to customize backing plate flexibility for the task at hand.
Compared to a Smooth backing plate, these Ribbed backing plates will result in a cooler running, longer lasting grinding disc.

Use with grinding discs with either a traditional 7/8" hole, or with any Scotch-Brite or fibre disc equipped with 3M's TN Quick Connect attachment system.

TN discs come with their own integral 5/8-11 retainer nut.
If you are using standard 7/8" hole discs, you will need a separate Retainer Nut. See Related Items, below.

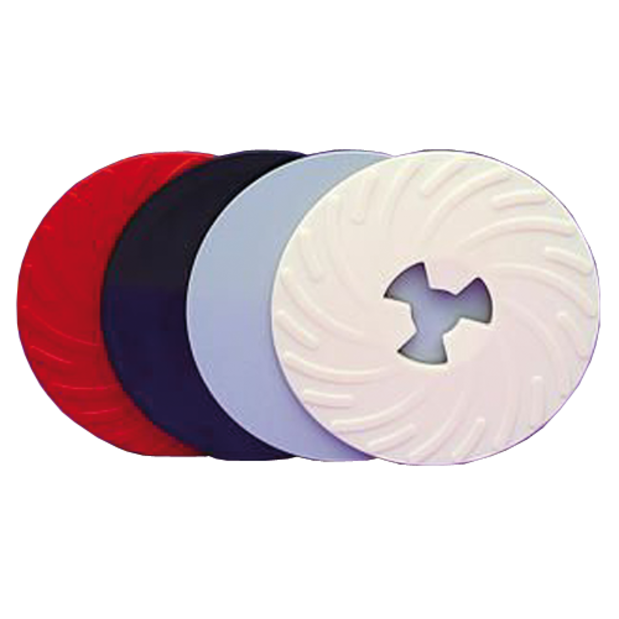

• Backing plates are color coded by flexibility
• Soft plates (white) - flexible for finishing and contour grinding
• Medium plates (gray) - general purpose grinding and finishing; aluminum and softer surfaces
• Hard plates (black) - heavy metal removal, such as large welds; steel and stainless steel
• Extra hard plates (red) - heavy grinding; cold rolled steel
• Note - lower surface is ribbed, upper surface is smooth

See related items, below, for Grinding Disc Hubs.

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item ID3M#AvailabilityDescriptionUOMYour PriceQTY

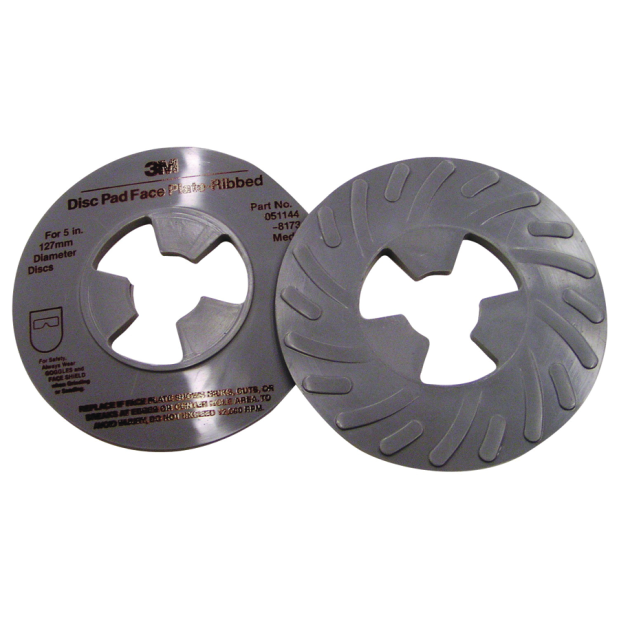

177702MMM 81734 81734Loading...5" Ribbed Grinding Disc Pad Face Plate - Medium - GrayLoading...
201138MMM 81733 81733Loading...5" Ribbed Grinding Disc Pad Face Plate - Hard - BlackLoading...
211200MMM 81732 81732Loading...5" Ribbed Grinding Disc Pad Face Plate - Extra Hard - RedLoading...
194366MMM 80517 80517Loading...7" Ribbed Grinding Disc Pad Face Plate - Soft - WhiteLoading...
209214MMM 80516 80516Loading...7" Ribbed Grinding Disc Pad Face Plate - Medium - GrayLoading...
211202MMM 80515 80515Loading...7" Ribbed Grinding Disc Pad Face Plate - Hard - BlackLoading...
211201MMM 80514 80514Loading...7" Ribbed Grinding Disc Pad Face Plate - Extra Hard - RedLoading...
368396MMM 81729 81729Loading...9" Ribbed Grinding Disc Pad Face Plate - Hard - BlackLoading...
368395MMM 81728 81728Loading...9" Ribbed Grinding Disc Pad Face Plate - Extra Hard - RedLoading...
