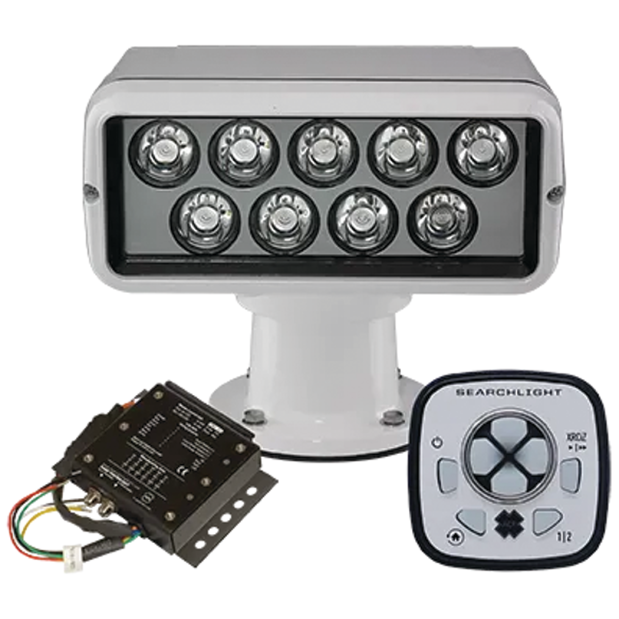

RCL-100 LED Searchlight with URC-104 Controller & URP-103 Point Pad

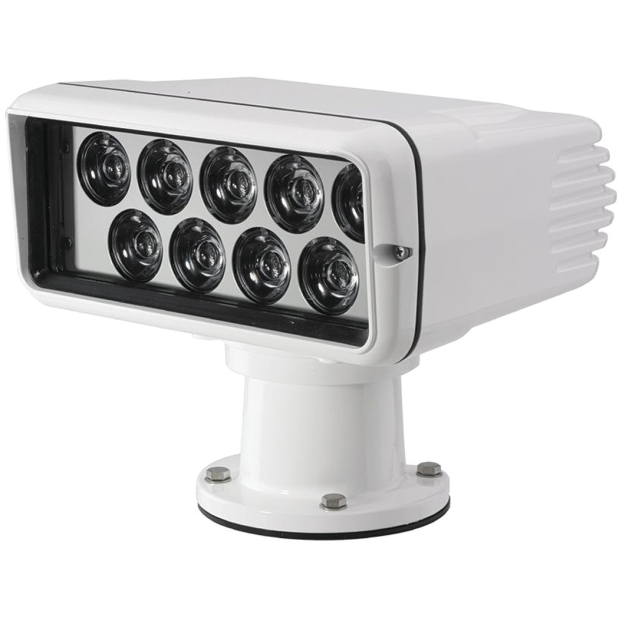

The RCL-100 LED searchlight maintains the same robust design as its predecessor, the RCL-100D, while integrating a new efficient 9 LED array that generates over 220,000 candelas of illumination. The durable yet lightweight aluminum casing, along with the glass lens, is weather-sealed to ensure years of reliable performance.

Additional features include a wired remote that facilitates continuous 360-degree rotation at both fast and slow speeds, eliminating the inconvenience of a hard stop. With a beam angle of 7 degrees, the light also offers elevation angles of 9 degrees upward and 17 degrees downward, making it easy to illuminate drawbridges, buoys, and docks.

Not all searchlights are made the same; the body is triple-primed and coated with a UV stabilizer to endure years in harsh marine conditions. The internals of the RCL-100 LED searchlight are fully enclosed, providing precise pitch control of the beam while remaining protected. The efficiently designed LED array offers over 40,000 hours of use. Furthermore, the light features our Exclusive XRCiZ™ technology, which rotates independently every 30 days from activation to ensure that all bearing surfaces remain free of corrosion and that all electrical contacts are operational. The RCL-100 LED is weather-resistant and can operate on either 12 or 24 DC power.

• Ultra-bright, 9 LED array generates over 220,000 peak candela
• Efficient, long-life LED’s – 40,000 operating hours
• Reduced power consumption demand by up to 50% on 12V vessels
• The controller has state-of-the-art electronics to protect the light from most power surges
• Internal elevation mechanism for precise pitch control of beam; protects elevation mechanism from weather
• Rugged triple-primed and sealed, marine-grade aluminum housing
• Includes fingertip remote control Point Pad; up to three remote Point Pad units may be installed on system; surface/flush mount options included
• Exclusive XRCiZ™ feature rotates and moves light assembly every 30 days from activation to keep all bearing surfaces free of corrosion and all electrical contacts functional
• The wiring harness of 15 feet (4.57 m)
• Two-speed motor

URP-103 Point Pad
The ACR Point Pad, with updated, sleek styling that blends with today’s marine dashboards and control panels, includes the following features:
• Stylized iconography for function buttons and a sleek stainless steel ring encapsulating the primary directional buttons.
• Backlit buttons, including the centralized ACR logo, utilizing multiple colors for indication of different modes and/or functions.
• The ability to control one or two searchlights independently or simultaneously.
• A return to home feature which returns the searchlight(s) to a forward-facing orientation.
• ACR’s exclusive XRCiZ™ technology – a self-maintenance feature that automatically rotates the light every 30 days to help prevent corrosion and keep all moving parts and electrical components functioning flawlessly.
• Adhesive faceplates in black and white for a unified and consistent look.

URC-104 Master Controller
The ACR Master Controller is the critical hub that enables seamless remote operation of the searchlights. Designed to be mounted discreetly behind the dash, it ensures full functionality of the ACR Point Pad and Handheld Remote.
