7/16X7/16 TOGGLE TURNBUCKLE NO STUD
Jaw to No Stud Turnbuckle
Share THIS PAGE:

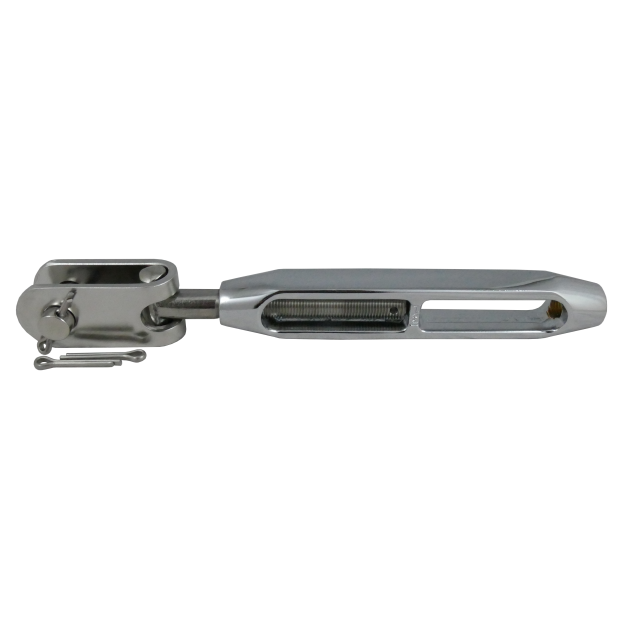

T-bolt Toggle Jaw Turnbuckle without Stud

Chrome Plated Bronze Body & Stainless Steel Toggle

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
This unit consistes of a turnbuckle body with a left-hand toggle jaw at the lower end. Also known as a partial turnbuckle or turnbuckle less stud, use this turnbuckle on new rigging when terminating wires with mechanical stud terminals, such as Sta-loks, or if re-rigging and your wires terminate in a swaged stud, which you plan to re-use.

Traditionally, the left-hand threaded terminal of a turnbuckle is used as the lower end and is attached to the chainplate. As a result, stud terminals on rigging wires tend to be right-handed. Beware if you have a boat built in Taiwan, however, as these yards sometimes use the right hand end of the turnbuckle as the lower one, with left-handed studs on the wire.

• Bodies come standard in highly polished chrome over forged bronze, and a 316 stainless steel stud which eliminates stainless on stainless galling
• Especially useful when used with field maintainable mechanical wire studs for open ocean cruising

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDAlexander Roberts#AvailabilityDescriptionUOMYour PriceQTY
01179ARC TS-000808 TS-000808Loading...T-bolt Toggle Jaw Turnbuckle without Stud, 1⁄4", 1⁄4"-28Loading...
01180ARC TS-001010 TS-001010Loading...T-bolt Toggle Jaw Turnbuckle without Stud, 5⁄16", 5⁄16"-24Loading...
01181ARC TS-001212 TS-001212Loading...T-bolt Toggle Jaw Turnbuckle without Stud, 3⁄8", 3⁄8-"24 Loading...
64197ARC TS-001214 TS-001214Loading...T-bolt Toggle Jaw Turnbuckle without Stud, 7⁄16", 3⁄8"-24Loading...
64212ARC TS-001414 TS-001414Loading...T-bolt Toggle Jaw Turnbuckle without Stud, 7⁄16", 7⁄16"-20Loading...
01182ARC TS-001616 TS-001616Loading...T-bolt Toggle Jaw Turnbuckle without Stud, 1⁄2", 1⁄2"-20Loading...
64198ARC TS-001620 TS-001620Loading...T-bolt Toggle Jaw Turnbuckle without Stud, 5⁄8", 1⁄2"-20Loading...
01183ARC TS-002020 TS-002020Loading...T-bolt Toggle Jaw Turnbuckle without Stud, 5⁄8", 5⁄8"-18Loading...
75150ARC TS-002424 TS-002424Loading...T-bolt Toggle Jaw Turnbuckle without Stud, 3⁄4", 3⁄4"-16Loading...
Add To Cart
