14/2 BLK/RED SHIELD/TWIST WIRE (100FT)
Duplex Twisted⁄Shielded Pair Boat Cable
Share THIS PAGE:

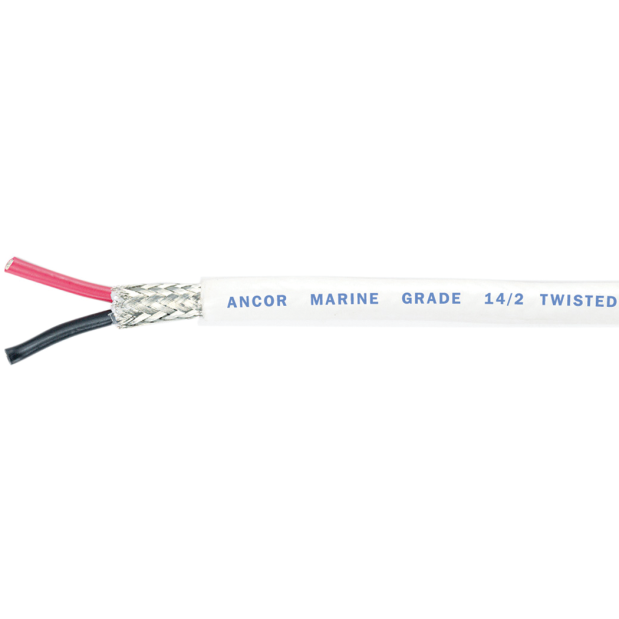

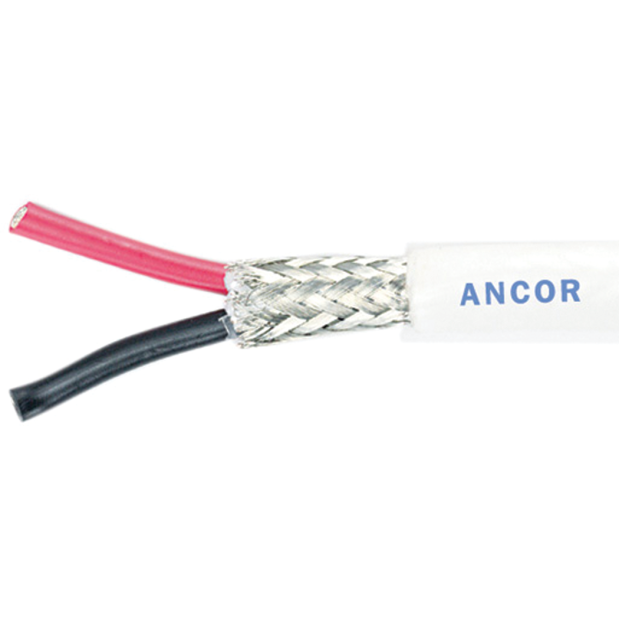

14/2 Duplex Twisted/Shielded Pair Boat Cable

Recommended for Metal Boats and for Sensitive Electronics
By: Ancor

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
This round cable has a 93% tinned copper shield for maximum EMI and RFI rejection. It also has a 2-3" twisted lay for magnetic interference cancellation per ABYC 11.16.4.2.1 recommendations for use of DC current carriers in the vicinity of compasses and other magnetically sensitive devices.

Made to surpass the highest UL Boat Cable standards with ultra flexible (Type 3/Class K) stranding to resist fatigue due to vibration and flexing. Stranding is tinned for corrosion resistance.

• Two 14 gauge conductors, red and black, in a white outer jacket insulation
• Outer jacket is made for easy removal and provides the best abrasion resistance available
• Proprietary vinyl insulation stays flexible even in extreme cold and resists saltwater, battery acid, oil, gasoline and ultra-violet radiation
• Exclusive insulation is rated at 600 volts, 105°C dry and 75°C wet, and is resistant to heat and abrasion
• Priced and sold by the spool

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDAncor#AvailabilityDescriptionUOMYour PriceQTY
146466ANC 141410 141410Loading...Duplex Twisted/Shielded Pair Boat Cable, 14/2 (100 ft.)Loading...
364667ANC 141425 141425Loading...Duplex Twisted/Shielded Pair Boat Cable, 14/2 (250 ft.)Loading...
