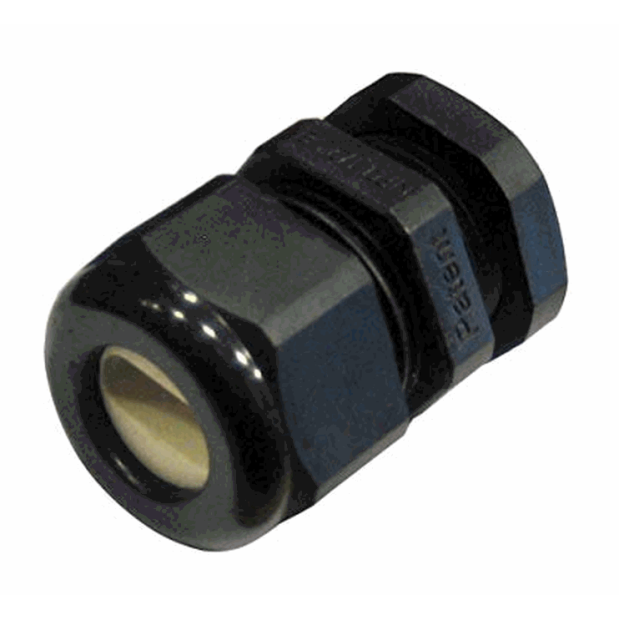

Watertight Wire Seal for Flat Cable - 1/2" NPT, for 12/2 - 10/2 Cable
Ancor's Through-Deck Wire Seals allow you to run wire through a surface using a waterproof, strain-relieving seal.
Ancor Wire Seals provide cable entries through boat decks, and into panels or junction boxes for a wide range of wire sizes including round, flat, duplex and triplex wires.
They can also be used for propane enclosures (where a tight connection for solenoid wires is critical), for antenna installations and hydraulic hoses.
The Wire Seals listed here are specifically designed for use with flat cables.
The clamping mechanism works like a compression nut or packing gland. As the top nut is tightened, a seal on the inside is compressed around the wire (or tubing) that runs through it. The body of the Wire Seal has NPT threads on the outside and inserts into the surface. A threaded nut (included) on the other side clamps the body to the surface.
They are safe to use underwater to depths of 300 feet (91.4 meters) and 150 PSIG, provided there is a liquid-tight seal between body and housing.
• Seal has "flat-slot" entry design for best use with flat duplex and triplex cables
• Clearance hole at 0.83" formed using white plastic insert
• Utilizes non-corrosive materials for use in the marine environment
• Type 6/6 Nylon, flame resistant, self extinguishing Buna-N form seal
• All seals exceed NEMA 4x or 6 specifications
• Overlapping clamping spines allow for superior pull-out protection and resistance
• Strain relief fittings are resistant to salt water, acids, alkalies, alcohol, oils, and gasoline
• Body length - 1.10"
• Thread length - 0.51"
• UL (94 v-0) and CSA approved to work with flat cable
• Made in USA
