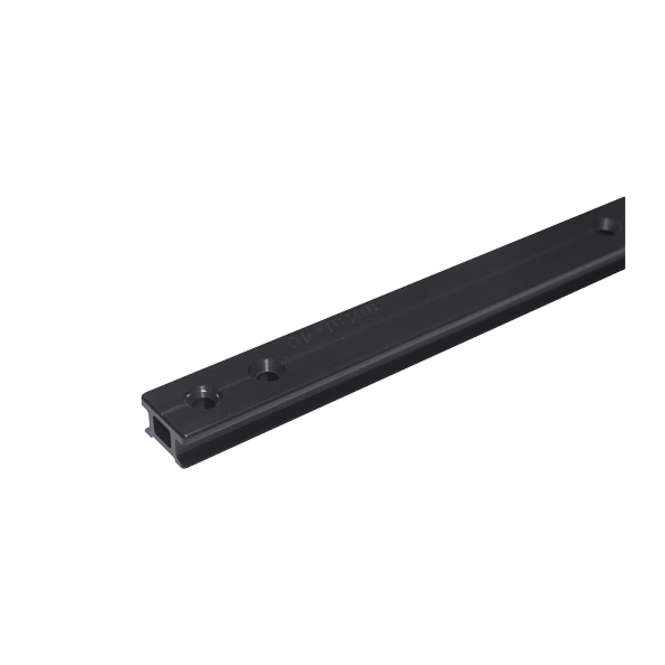

ANL HS22.221 MAST TRACK #40 SLUG/DIRECT MT 2M 120MM
- HS22 Sys Track - All Car Sizes
- For Use on Stepped Masts
- 120 mm Hole Spacing
Description
This slug mounted track is specifically designed for installing on masts that already have an internal round or flat track built into the mast. Available HS22 slugs (both round and flat) are positioned in the internal track, and then this HS22 track is fastened to the mast by screwing into the slugs. No drilling into the mast.
This HS22 System Track is suitable sailboats up to 40 feet in length, and racing sailboats from 40 to 60 feet.
It is used with all sizes of available mast track sliders in the HS22 40/50/60 systems – HS22.40, HS22.40/R and HS22.50/R and HS22.60/R.
HS22 track is available with two different hole spacings – 60 mm spacing (for boats 50 to 60 feet long) and 120 mm spacing (for boats 40 to 50 feet long).
Direct (fastener) mounting requires drilling and tapping holes in the mast.
The Track is a hard black anodized, Teflon® coated aluminium extrusion.
Weight = 0.34 kg/m.
