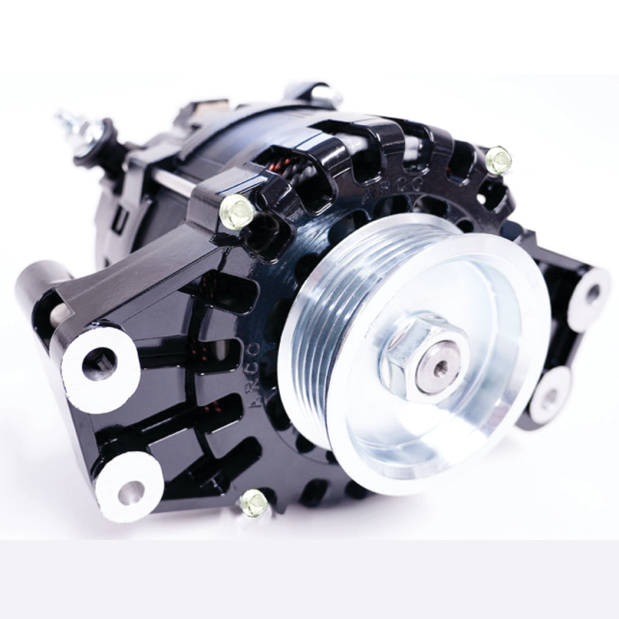

- Fits Mercury Verado outboard
- 2 to 3x faster charge times
Description
Now, you have the opportunity to recharge your batteries and power your high-draw applications. This will allow you to ensure that your devices have the necessary power supply. By recharging your batteries, you can confidently run high-draw applications without any interruptions.
• Fits your Mercury Verado outboard
• Designed high-draw applications such as stabilizers, air conditioners, water/ice makers, trolling motors and more

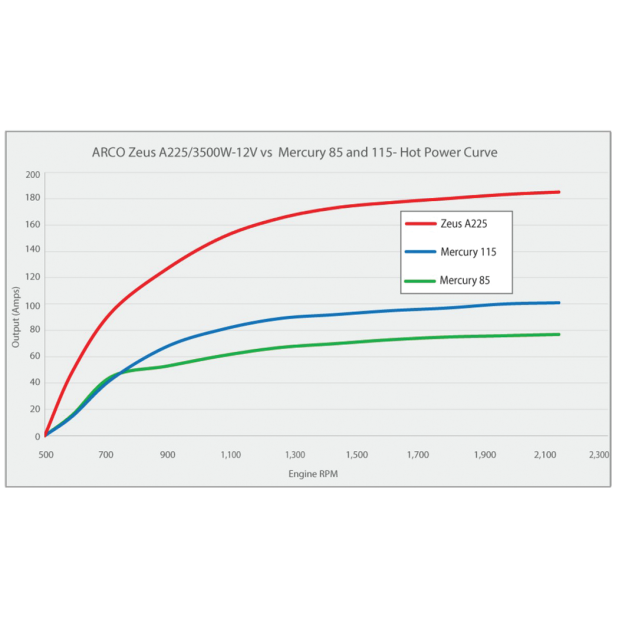

• Delivers 2 to 3x faster charge times vs OEM units (see graph below for real-world performance)
• Supports high continuous current draw
• Batteries continue charging even at low engine speeds (idle)
• Enables efficient charging without dedicated engine or generator runtime
• Voltage: 12V
• Field Type: P
• Rotor Poles: 16
• Weight: 14.9 lb (6.7 kg)
• Regulation: Internal/ External (IE) and External (EX)
• Battery Sense Harness: Included
• Alternator Fuse Link: Included
• Alternator Belt: Included
• Cut-In Alternator RPM: 1,288
• Maximum Alt RPM: 19,000
• Side Mount Battery Post: M8 Thread
• Standard Pulley: K6 75 mm
• Shaft Diameter: .66 in (17 mm)
• Avalanche Diodes: 50 amps
• Max Output(Cold): 254 amps
• Sustained Cruising Output (Hot, 2,000 RPM): 187 amps
• Sustained Idle Output (Hot, 1,000 RPM): 157 amps
• Max Continuous Operating Temperature: 110 degrees C
