- 3" sheave
- Up to 5/8" line
- WLL 1,320 lb
Your Price:$313.58/ Each
Availability:
1 Remaining In Stock
Ships immediately
Description

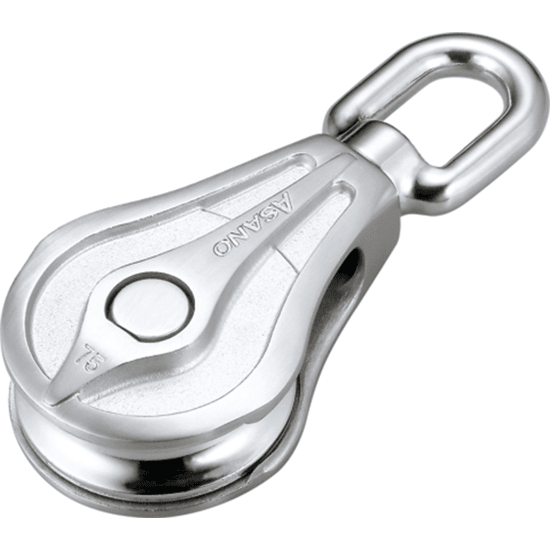

These blocks are now re-designed with a larger bolt in the swivel base for increased strength.
The edges of the sheave in this block fit into recesses in the cheeks to eliminate the possibility of the line snagging.
• Materials - SCS14 (equivalent to 316 SS)
• Swivel, Swivel pin, Sheave pin, nut - SUS304 (304 SS)
• Cheek design prevents rope from snagging
• Dual stainless steel bushings (one on each side) with rubber seals - see image
• Nut in the center of the main body is left-hand thread
Specifications
MFG #:AK10301
Size
75
Sheave Diameter
2.95" (75mm)
Max. Line Diameter
0.63" (16mm)
Working Load Limit
1,320 lb (600kg)
L
7.64" (194mm)
L1
1.50" (38mm)
L2
4.37" (111mm)
L3
4.69" (119mm)
d
0.49" (12.5mm)
B
3.23" (82mm)
B1
0.75" (19mm)
t
0.94" (24mm)
t1
1.73" (44mm)
Bearing #
#6002
Weight
2.65 lb (1.2kg)
Warning
This item may be known to the State of California to cause cancer, birth defects, or other reproductive harm.
Barcode
4513440103010
