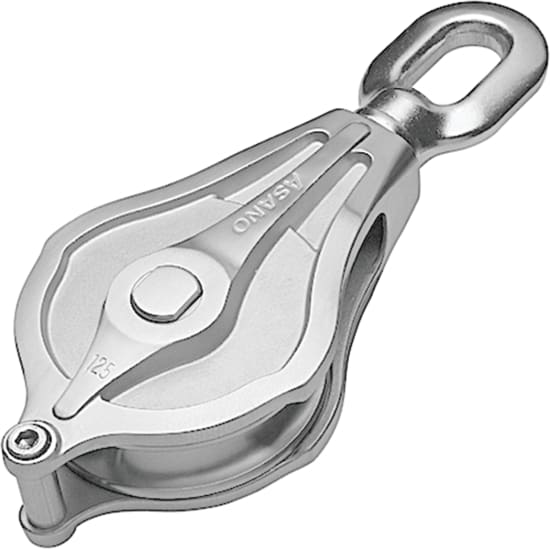

AK Block Type PB II Bearing & Becket - Size 125, 4.92" Sheave, 1" Line, 3,300 lb WLL
SKU: 1002913 Item ID: ASA AK10073
- Stainless steel construction
- 5" sheave with SS bushings
- 1" Line, 3,300 lb WLL
Your Price:$928.27/ Each
Availability:
1 Remaining In Stock
Ships immediately
Description
The edges of the sheave in this block fit into recesses in the cheeks to eliminate the possibility of the line getting jammed.
• Dual bushings in the sheave facilitate smooth rotation
• Sheave pin is tightly fixed through crimping to prevent loosening during use
• Forged swivel for increased safety

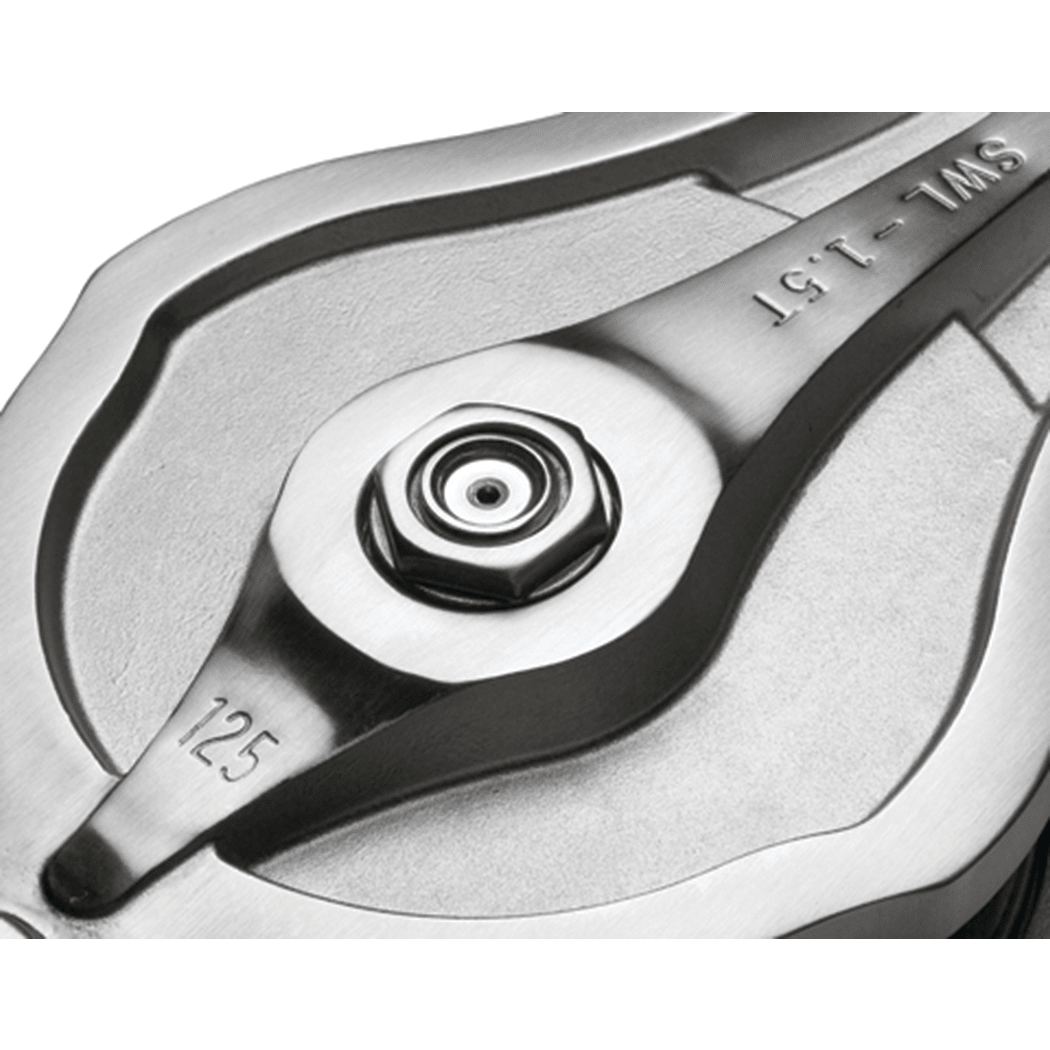

• Dual stainless steel bushings (one on each side) with rubber seals - see image
Material - SCS11 (SUS329J1) special dual-phase stainless steel - selected for its high strength and abrasion/corrosion resistance.
Swivel, swivel pin, sheave pin, becket bolt, becket collar - SUS304 (304 SS).
Specifications
MFG #:AK10073
Type
AK Block Type PB II Bearing & Becket
Sheave Diameter
4.92" (125mm)
Size
125
Max. Line Diameter
0.98" (25mm)
L
13.43" (341mm)
L1
2.05" (52mm)
L2
6.85" (174mm)
d
0.75" (19mm)
B
5.39" (137mm)
B1
1.06" (27mm)
t
1.42" (36mm)
t1
2.72" (69mm)
Hex Wrench Size
8 mm
Bearing #
#62/28
Weight
9.92 lb (4.5kg)
Working Load Limit
3,300 lb (1.5t)
