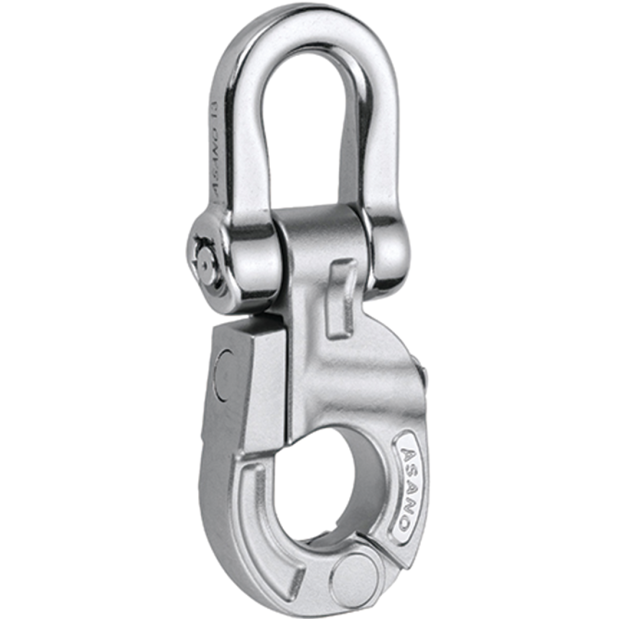

Purse Seiner Snap Shackle Type-2

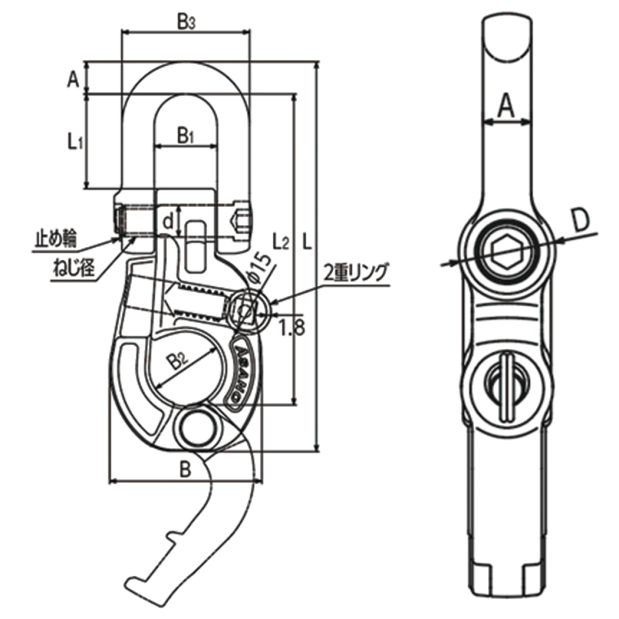

Dimensions of Asano Metal Industry Purse Seiner Snap Shackle Type-2
Dimensions of Asano Metal Industry Purse Seiner Snap Shackle Type-2

Purse Snap Shackle Type-2 - 6-1/4" Long, 1.18" Max. Rope Size, 1,763 lb WLL

SKU: 1004231 Item ID: ASA AK18225
  • Non-Swivelling
Your Price:$292.88/ Each
Availability:
Special Order Only
Quantity:
Each
Return Policy
undefined
Purse Seiner Snap Shackle Type-2

Edit
$292.88

Description

The Purse Snap Shackle Type-2 is designed for use on purse seiners.

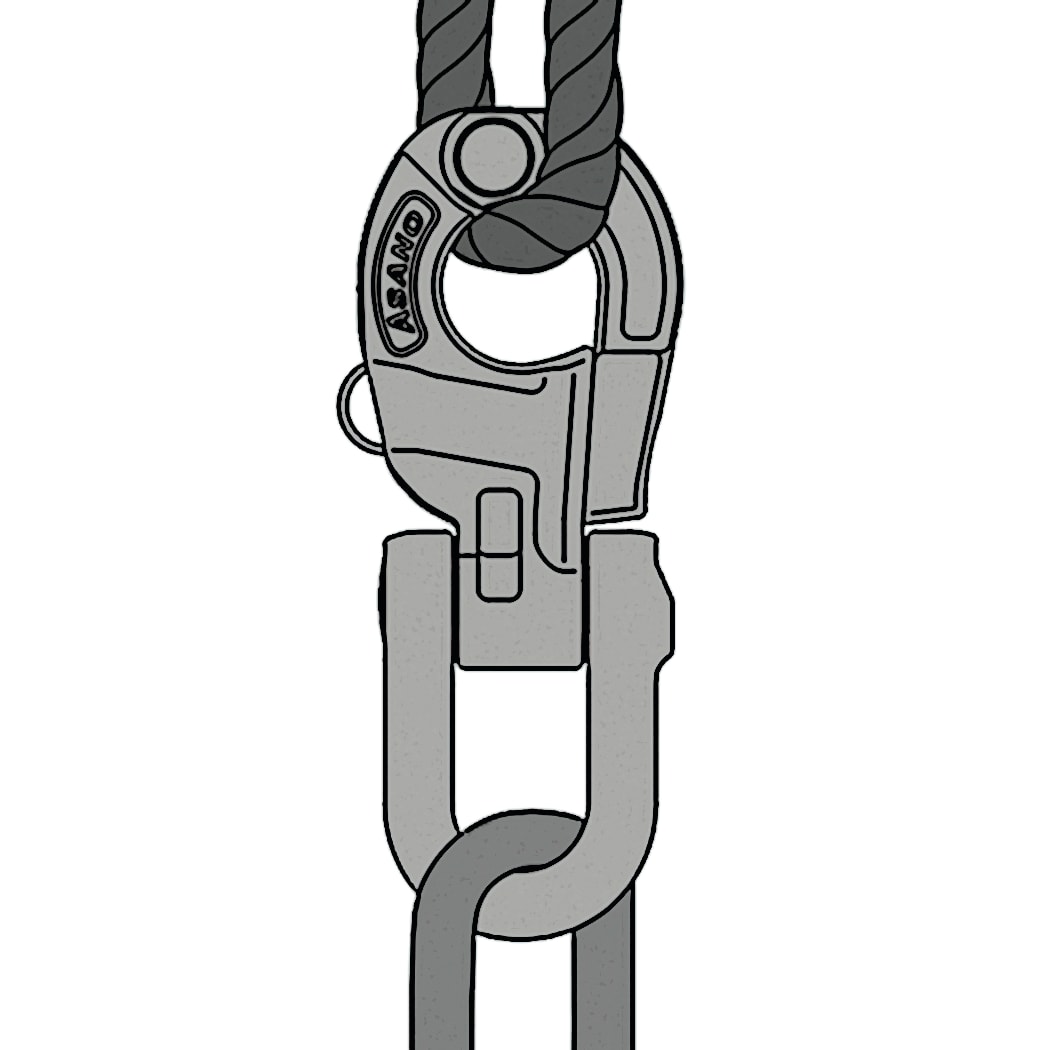

This snap shackle can be connected directly to a second shackle. It can also be used for making a connection between ropes and rings, ropes and wire, etc..

• Material - SCS11 (SUS329J1) special dual-phase stainless steel - selected for its high strength and abrasion/corrosion resistance; and SCS24 (SUS630) special stainless steel - selected for its high strength and abrasion/corrosion resistance

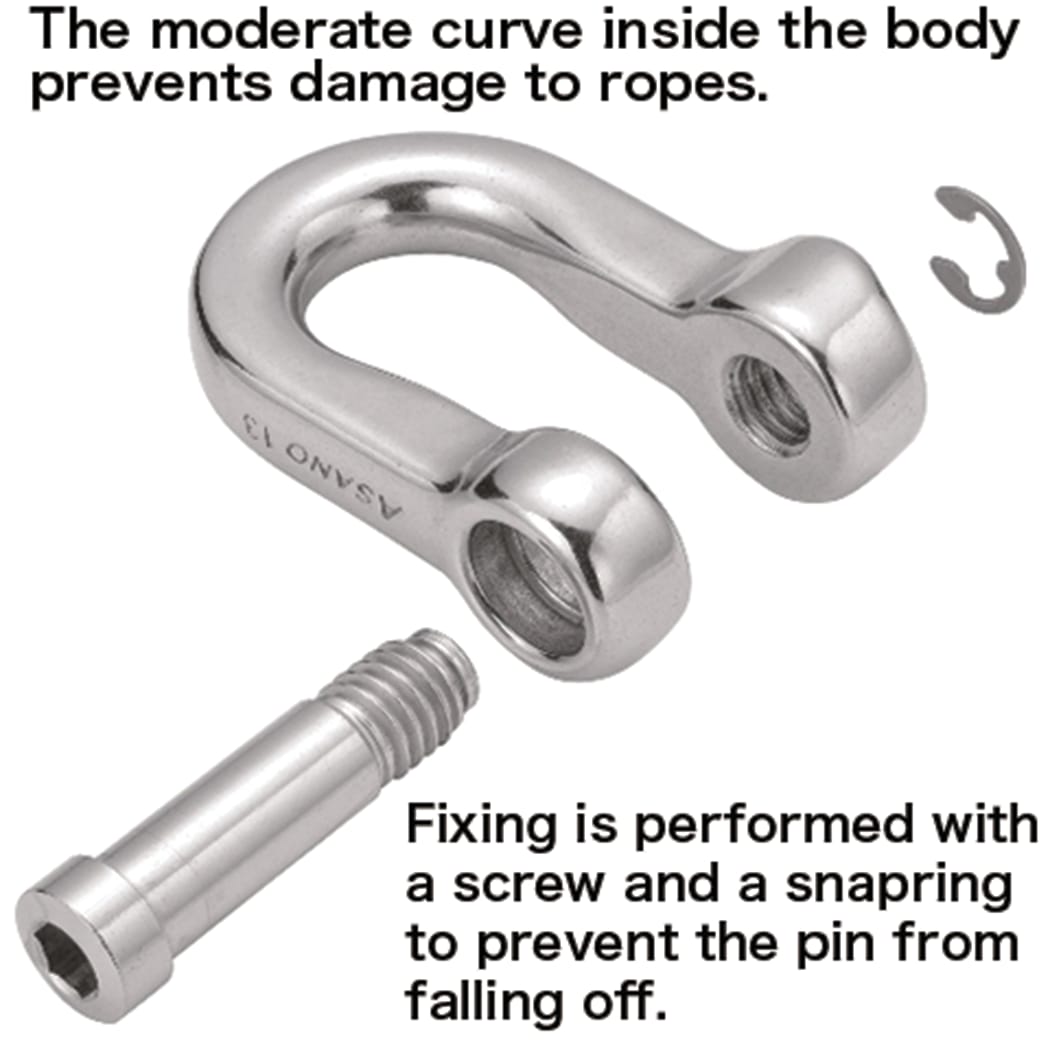

• Pin - SUS316 (316 SS)
• Retaining Ring - SUS304 (304 SS)
• Double Ring (Wire dia.-1.8mm, Inner dia.-15mm) - SUS304 (304 SS)

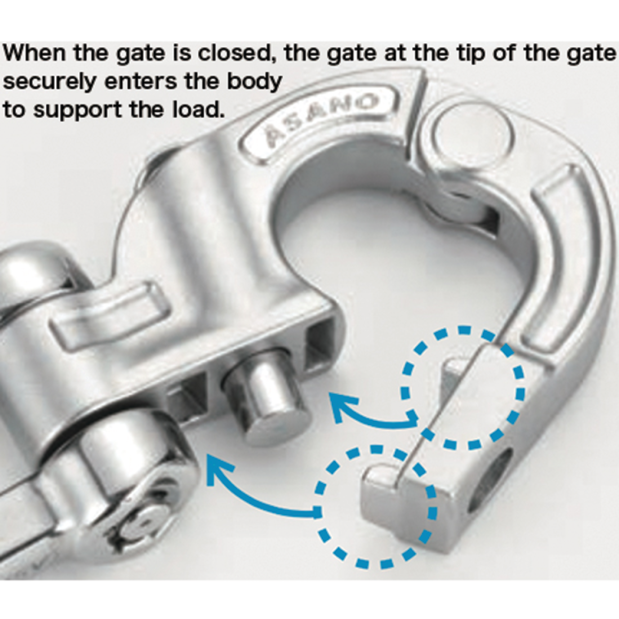

• Spurs on the gate interlock with the shackle body to support the load

Are You a Pro?

Fisheries offers discounted pro pricing, real-time inventory and same-day shipping -- as well as our solid customer service reps.

Apply Now

Specifications

MFG #:AK18225
Type
Purse Snap Shackle Type-2
Size
M
d
0.51" (13mm)
L
6.26" (159mm)
L1
1.54" (39mm)
L2
5.00" (127mm)
A
0.51" (13mm)
B
2.44" (62mm)
B1
1.02" (26mm)
B2
1.18" (30mm)
B3
2.05" (52mm)
D1
1.02" (26mm)
Thread Diameter
W1/2 mm
Hex Wrench Size
8 mm
Stopper Ring Size
0.31" (8mm)
Weight
1.85 lb (840gm)
Working Load Limit
1,763 lb (800kg)
