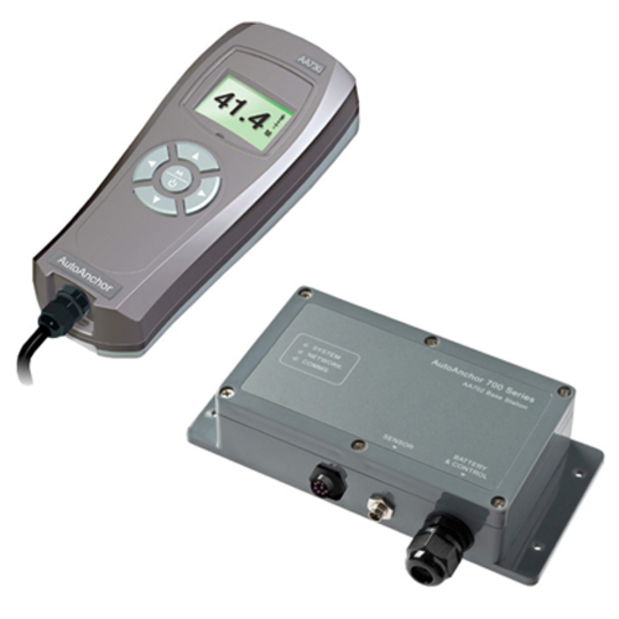

AA730 Wired Handheld Remote - Base Station & Cradle included

AA730 Wired Handheld Remote, Complete Kit (Includes Base Station and Handheld with Cradle)
Hand held remote control and anchor rode kit complete with hand remote, base station, magnet and sensor, instructions and operators manual.
Note: When connecting to solid stage switching or other low current windlass drive, a PLC or AC variable frequency drive, a dummy resistor load may be required
Rope/Chaine Rode: Must have a minimum of 10 ft (3m) of chain. Chain must be galvanized steel. Rope should be a good quality nylon anchor rope. Type 66 or equivalent.
• 4 meter spiral cable
• Electrical protection against back-emf
• Rubber over-moulding for shock protection and grip
• Stowage on cradle
• Operation in parallel with all AutoAnchor products
• Connect to DC, AC and hydraulic systems
• Rugged cable and connectors

Windlass Control with Chain Counter:
• Presents the length of rode to deploy
• Counts rope/chain or all-chain rode
• Choice of measurement in feet, meters or fathoms
• Logs windlass operating hours for maintenance
• Easy calibration
• Electronic diagnostics for troubleshooting installation
• Auto stop and docking alarm when the anchor is close to docking
• Two speed operation

Kit Includes: one handheld console unit with cradle, one base station, a deck socket with 2m lead, a socket sealing cap, one sensor, 2 magnets, screws for the cradle and socket, installation and operation instructions.
