Description

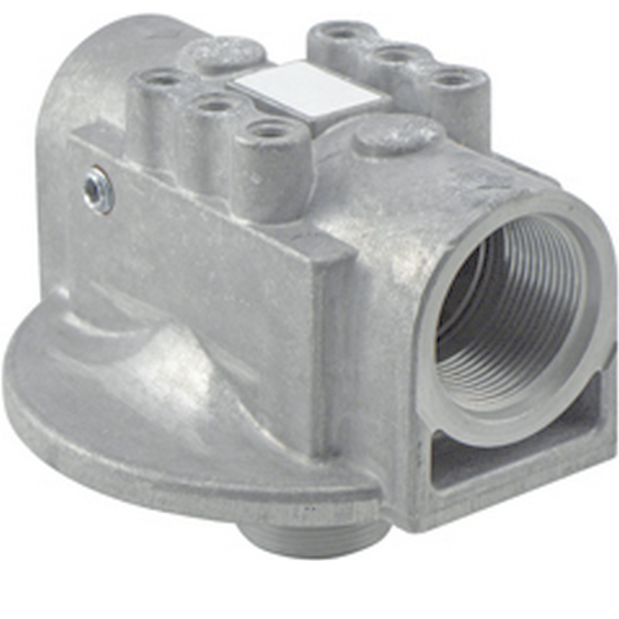

This Hydraulic Filter Base requires the use of the G286-C gasket (included with elements: BT387, BT387-10, BT388, BT388-10 and BT8424-MPG, optional on others) for installation of the filters listed below. For use on the return side.
Use this base with these elements: BT287, BT287-10, BT287-3, BT351, BT387, BT387-10, BT388, BT388-10, BT389, BT389-10, B7011, BT8307-MPG, BT8308-MPG, BT8308-MPG KIT, BT8309-MPG, BT8310-MPG, BT8368, BT8421-MPG, BT8422-MPG, BT8423, BT842
Contains 25 PSID By-Pass Valve; Threaded Stud 1-1/2-16; Threaded Stud 1-1/4-11 BSP
OD - 5-13/32" (137.3mm)
Inlet - 1-5/8-12 SAE
Outlet - 1-5/8-12 SAE
Length - 5-5/16" (134.9mm)
Specifications
