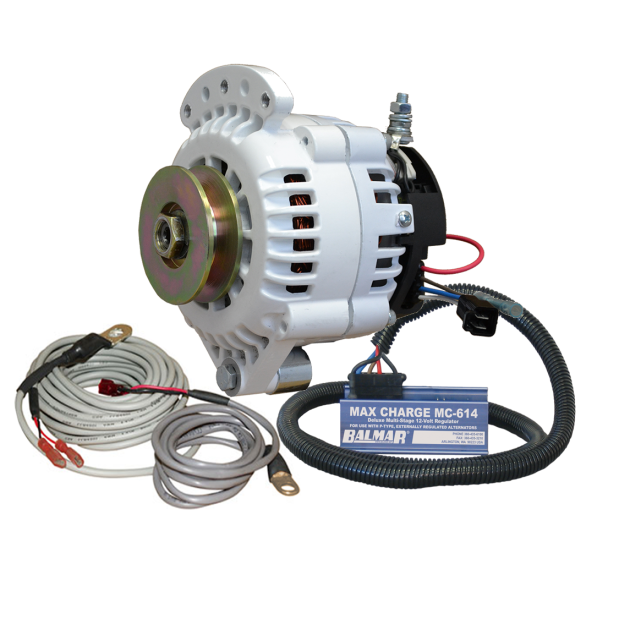

100A 6-Ser Alternator/Regulator Kit - Single Vee Belt, VUP Package w/MC-614 Max Charge Regulator

The 6-Series is Balmar’s Top Selling Alternator Line. With a 12 Volt output, the 6-Series is available in 70A, 100A, 120A and 150A versions.

Balmar's Smart Ready™ internally regulated 6-Series alternator and newly updated ARS-5 advanced external voltage regulator with battery-type optimized programs deliver the smartest charge possible, with the added assurance of built-in redundancy.

Features of the 6-Series 621-VUP-MC-100-SR-KIT Alternator/External Regulator Kit
• 12V output
• 621 1" or 2" (with adapter) spindle-type single mounting foot
• VUP package (see below for details)
• MC Max Charge external voltage regulator (model MC-614)
• SR Patented Smart Ready Fixed Voltage Internal Regulator Technology
• 100 Amp output
• 4.0 HP power take-off
• Dual Fan Cooling
• High Airflow Frame
• Maximum RPM: 12,000
• USCG Title 33, ISO, SAE and CE Compliant
• Ideal for Modest Charging Upgrades
• One year limited warranty

Max Charge packages include an upgrade to the deluxe MC-614 external voltage regulator

YP packages fit most Yanmar, Mercruiser and Mitsubishi applications, as well as other marine gas and diesel engines using a 3.15" I.D. saddle style (dual foot) mount

VUP packages can be used on Volvo, Nanni, Westerbeke and others using a 1" or 2" (with adapter) single mounting foot

Alternator/Regulator Kits include MC-TS-A and MC-TS-B alternator and battery temperature sensors

YP packages include Yanmar installation hardware kits
