BAL XT-SF-170-DV-KIT ALTERNATOR XT SERIES 170A DUALPUL KIT

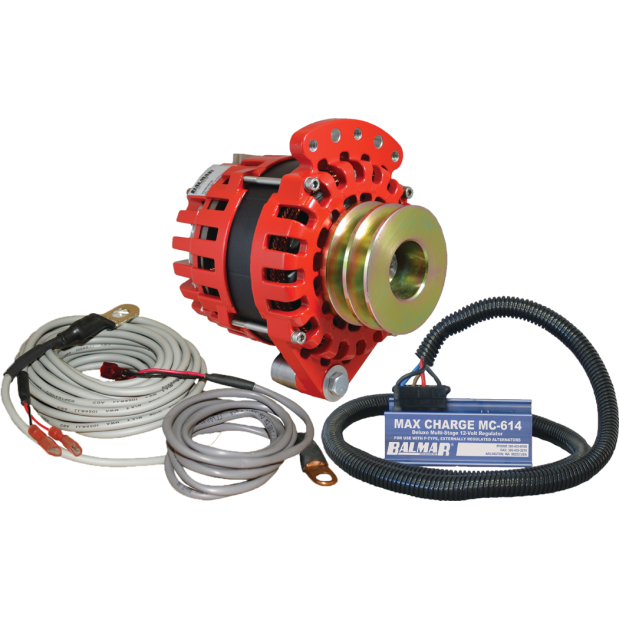

This Alternator Charging Kit includes a XT-DF-170-DV 12 volt 170 Amp Alternator with a dual vee belt pulley, plus an MC-614 Multi-Stage External Regulator, Alternator and Battery Temperature Sensors, and Mounting Hardware.

The XT-Series Alternators from Balmar uses the latest innovations in alternator design to deliver incredible charging power in a compact, Marine-friendly package suitable for installation in most small-to-medium sized diesel engines and most GM-based 4.3L to 8.1L gasoline engines.

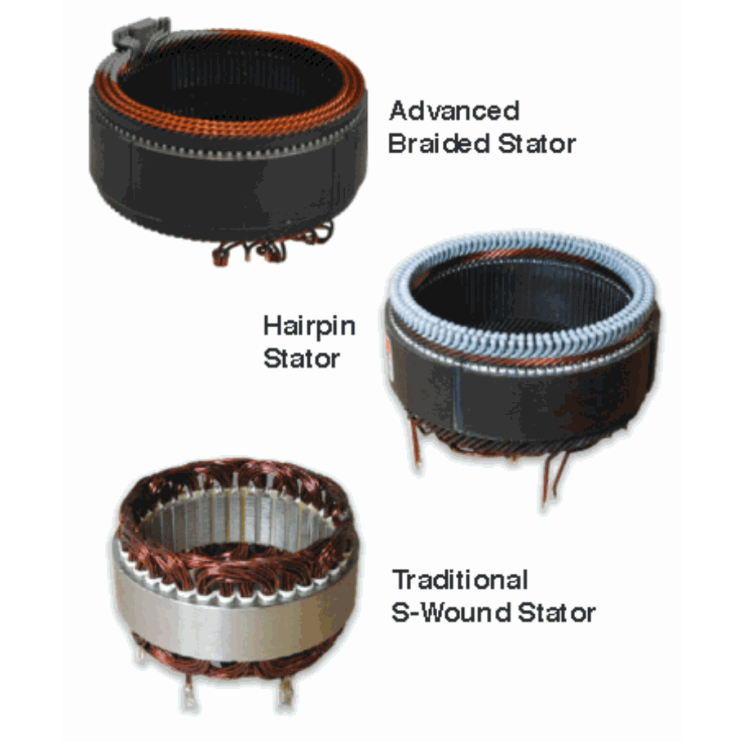

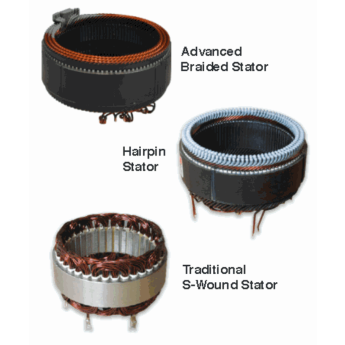

The 170 Amp XT-Series alternators feature a state-of-the-art, braided wire stator design to generate exceptional output in the smallest possible case. These upgraded XT alternators produce slightly more power than Balmar's previous AT-Series 165A design and also operate 9&deh;-18°F cooler.
In addition, they feature Balmar’s Smart Ready® internal regulator technology to provide an additional level of fault tolerance for cruising boaters.

Available XT-Series mounting styles have been expanded to include the “Vortec” 9Si design found on many GM gasoline engines, in addition to 1" (Motorola) and 2" (Delco) spindle mounts, and 3.15" (Hitachi) dual foot mounts.

XT-Series alternators may require a Tachometer Signal Stabilizer (Part No. 15-TSS) if your current tachometer is not adjustable.
XT-Series alternators should only be used in Dual Vee or Multi-Groove Serpentine belt configurations.
If you are replacing an alternator which does not use a Dual Vee or Serpentine belt, an available Balmar AltMount® belt/pulley conversion kit may be required to handle your alternator Power Take-Off (“PTO”) load.

Alternator features —
• 170A output in a small case package
• Up to 140A at idle speeds
• 12V output
• 1" Motorola-style spindle mount (1" single foot)
• Adapter for 2" Delco-style spindle mount (2" single foot)
• Dual deep vee pulley
• 5.2 HP power take-off
• XT Series alternators feature a patented Smart Ready® internal voltage regulator, with the option for (MC-614) external regulation
• Dual fan cooling, high airflow frame
• Case ground
• Ideal for large battery banks
• USCG Title 33, CE, ISO 8846 and SAE J1171 Certified

1″ Motorola-Style Single Foot Mounting; Typical for Westerbeke, Lehman, Hino & Pathfinder Engines
2″ Delco-Style Single Foot Mounting; Typical for Volvo Penta (Gas & Diesel), John Deere, Perkins, Mercruiser, Pleasurecraft, Crusader, Indmar, Marine Power & other GM-based Engines

Replaces Balmar: AT-SF-MC-165-KIT, AT-SF-165-DV-KIT

See Data Sheet for full specifications and dimensions.
