170A 12V XT Ser Alternator Charging Kit - J10 Serpentine Pulley, Dual Ft Mt

This Alternator Charging Kit includes a XT-DF-170-J10 12 volt 170 Amp Alternator with a J10 serpentine belt pulley, plus an MC-614 Multi-Stage External Regulator, Alternator and Battery Temperature Sensors, and Mounting Hardware.

The XT-Series Alternators from Balmar uses the latest innovations in alternator design to deliver incredible charging power in a compact, Marine-friendly package suitable for installation in most small-to-medium sized diesel engines and most GM-based 4.3L to 8.1L gasoline engines.

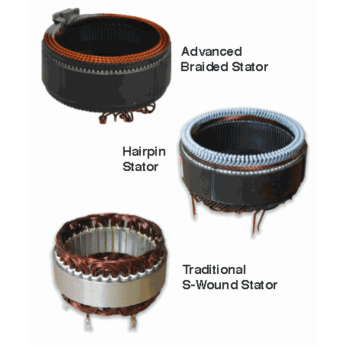

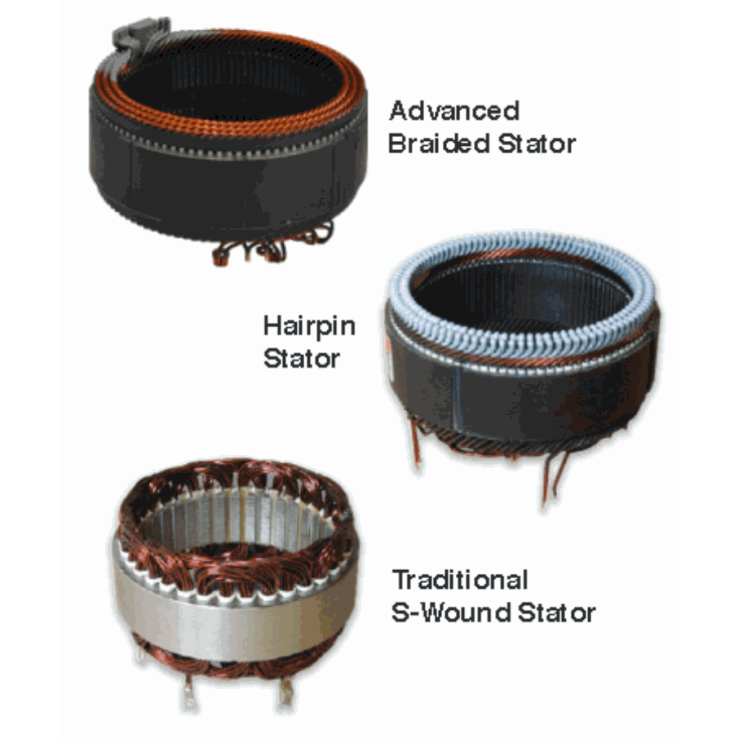

The 170 Amp XT-Series alternators feature a state-of-the-art, braided wire stator design to generate exceptional output in the smallest possible case. These upgraded XT alternators produce slightly more power than Balmar's previous AT-Series 165A design and also operate 9°-18°F cooler.
In addition, they feature Balmar’s Smart Ready® internal regulator technology to provide an additional level of fault tolerance for cruising boaters.

Available XT-Series mounting styles have been expanded to include the “Vortec” 9Si design found on many GM gasoline engines, in addition to 1" (Motorola) and 2" (Delco) spindle mounts, and 3.15" (Hitachi) dual foot mounts.

XT-Series alternators may require a Tachometer Signal Stabilizer (Part No. 15-TSS) if your current tachometer is not adjustable.
XT-Series alternators should only be used in Dual Vee or Multi-Groove Serpentine belt configurations.
If you are replacing an alternator which does not use a Dual Vee or Serpentine belt, an available Balmar AltMount® belt/pulley conversion kit may be required to handle your alternator Power Take-Off (“PTO”) load.

Alternator features & Specs —
• 170A output in a small case package
• Up to 140A at idle speeds
• 12V output
• Hitachi-style 3.15" saddle mount (dual foot)
• J10 AltMount Multi-Groove Serpentine Pulley
• 5.2 HP power take-off
• XT Series alternators feature a patented Smart Ready® internal voltage regulator, with the option for (MC-614) external regulation
• Dual fan cooling, high airflow frame
• Case ground
• Ideal for large battery banks
• USCG Title 33, CE, ISO 8846 and SAE J1171 Certified

Hitachi-Style Dual Foot Mounting – Typical for Yanmar, Westerbeke, Lehman & Perkins-Sabre Engines

Replaces Balmar: AT-DF-MC-165-KIT, AT-DF-165-J10-KIT

See Data Sheet for full specifications and dimensions.
