Description
• Continuous rating: 275 Amps DC
• Intermittent rating: 455 Amps DC
• Cranking rating: 1250 Amps DC
• A contour lock system, allowing it to be a stand alone unit, or locked together with other switches
• It features a control knob which cannot be removed while in the on or off position, however can be removed by switching to an anti-clockwise 45° position
• The control knob also features an interchangeable labeling system allowing a full range of applications

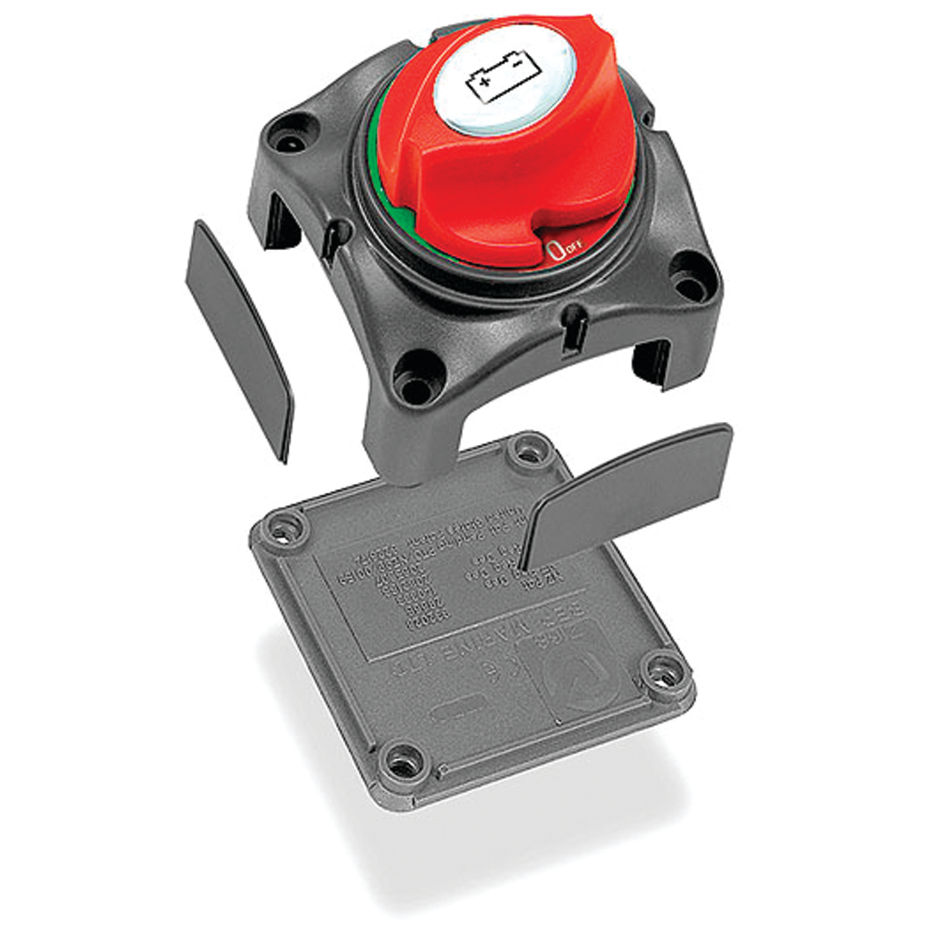

• Features removable side plates on four sides for access of up to 1/0 cables
• Rear cover insulates the rear terminals against any short circuits ensuring the switch meets ABYC requirements
• Volts: 48 V DC
• Continuous ratings: 2.75"L x 2.75"W x 3"H
• Tin plated copper studs and nuts
Specifications
870216000015
020870216000015
