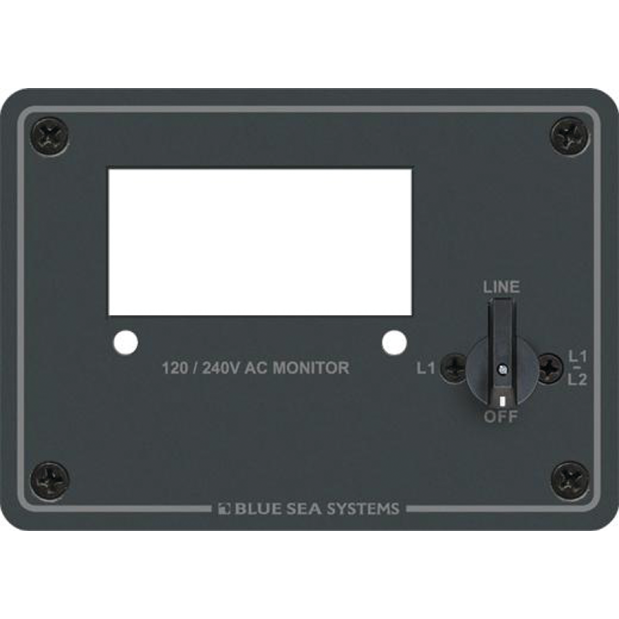

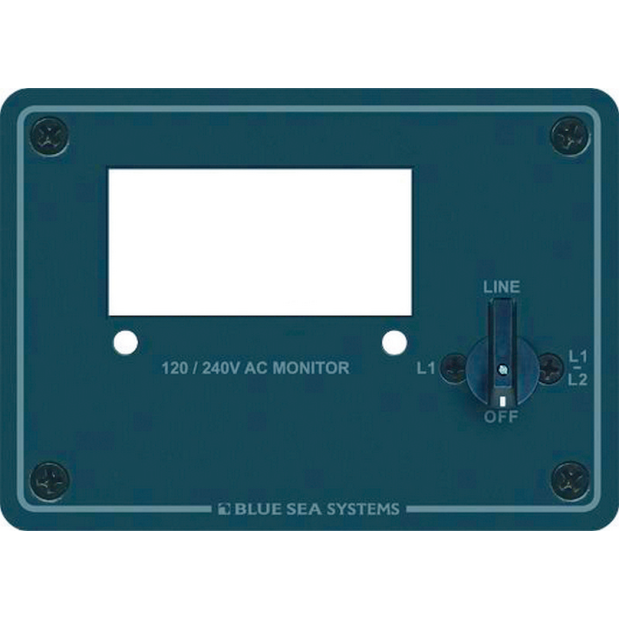

This blank panel is a kit which allows a single digital multimeter to completely monitor a 120/240V AC 60Hz, single phase, three wire system. The assembly is installed in a Blue Sea Systems' standard size panel with a cut-out for the multimeter, which is sold separately, see Table.
• Monitor line 1 or line 2 to neutral, and line 1 to line 2 voltages
• Monitor 120V and 240V currents
• Convenient terminal block for connections
• Intended for use with AC digital multimeter (No. 8247), which is sold separately
• Includes two No.8256 current transformers (coils), in addition to the one supplied with the 8247 multimeter, for 240 volt capability
• Heavy 1/8" 5052 aluminum alloy
• 2-part polyurethane slate gray finish
• Dimensions: 3.75"H x 5.25"W
