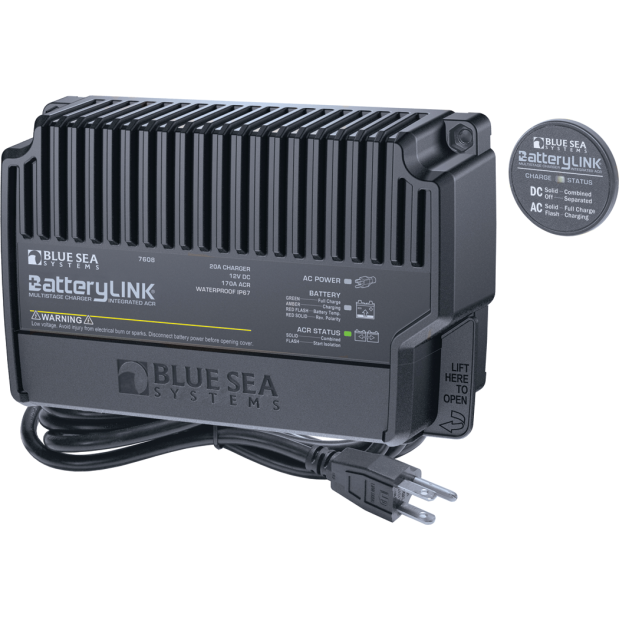

BatteryLink Multi-Stage Charger with ACR - 20 Amps
BatteryLink Multi-Stage Charger with ACR - 20 Amps
SKU: 1008387 Item ID: B/S 7608
- Charge at or Away From Dock
Description
Charge two batteries at or away from the dock with a 20A multistage battery charger and integrated 170A Automatic Charging Relay (ACR).
AC charging at the dock: Use AC shore power to charge two isolated battery banks with the 3-Stage 20 Amp battery charger.
DC charging away from the dock: Share the DC power from the alternator with both the Start and the Auxiliary battery through the integrated 170A ACR.
• Compact 12V 20A – 2 Bank AC Charger
• 170A Continuous ACR
• Remote Emergency Jump Start
• Battery Temperature Compensation
• Remote Display Included
• IP 67 Waterproof
Specifications
MFG #:7608
AC Input Frequency
50/60Hz
Battery Types
AGM, Flooded, TPPL
CCA
850CCA
Continuous Output
20A
Number of Outputs
1 Negative, 2 Positive
Recommended Battery Bank Sizes
60Ah Minimum
Terminal Stud Size
1/4"-20
Type
BatteryLink Multi-Stage Charger with ACR - 20 Amps
Universal AC Input Voltage
90-265V AC
Barcode
632085076085
