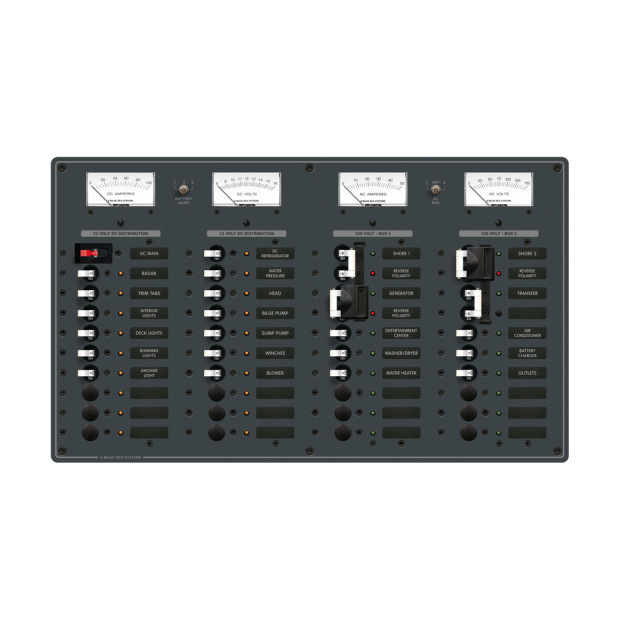

• Panel is ready to install
• All AC and DC buses installed, fully pre-wired
• Includes pre-installed backlighting, LEDs and 60 common labels
• 120 volts AC/12 volts DC
• Panel main buses: 50 amps AC/100 amps DC
• Ready for installation of optional isolation cover (no. 4031)
AC Features:
• Two separate AC load groups with reverse polarity indicators and transfer switch to combine into one load group
• Twenty AC circuit breaker positions
• Three 30 amp and one 50 amp double pole AC main circuit breakers with lockout slides installed
• Six 15 amp single pole circuit breakers installed; six empty
• 0-50 amp AC ammeter (No.9630) with remote sensing coil
• 0-150 VAC voltmeter (No.9353)
DC Features:
• 100 amp C-Series circuit breaker: provides both main circuit protection and master switching for DC branch circuits
• Nineteen branch DC circuit breaker positions; thirteen 15A single pole circuit breakers installed; six empty
• 0-100 amp DC ammeter (No.8017) with remote shunt
• 8-16V DC (No.8003) voltmeter with 3-position switch for sensing multiple battery banks
• Panel can be owner upgraded to 24 volts with 18-32V DC voltmeter (No. 8240)
