350A RED E SERIES BATTERY SWITCH 4 POS
e-Series Battery Selector Switch - 4 Positions
Share THIS PAGE:

350A e-Series Battery Selector Switch - 4 Positions

#9001/2e • Switches Isolated Or Combined Battery Banks to All Loads

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
Rated 350A continuous for applications requiring high power output and reliability.
That's 45% higher than standard switches.

• Ignition protected - safe for use on gasoline powered boats

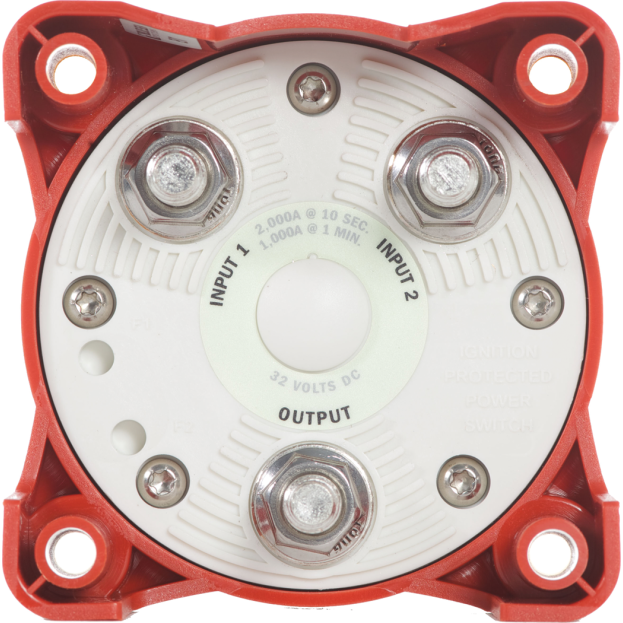

• 3/8" tin-plated copper studs for maximum conductivity and corrosion resistance
• Accepts up to 4/0 battery cables
• Make before break contact design
• AFD (Alternator Field Disconnect) switch on 9002e protects alternator diodes if the selector switch is inadvertently turned to the "OFF" position while the engine is running

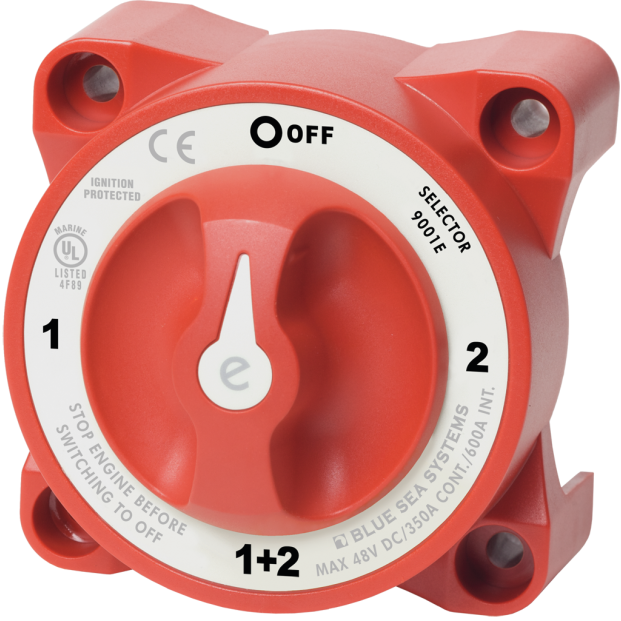

• Tactile textures indicate knob position by feel

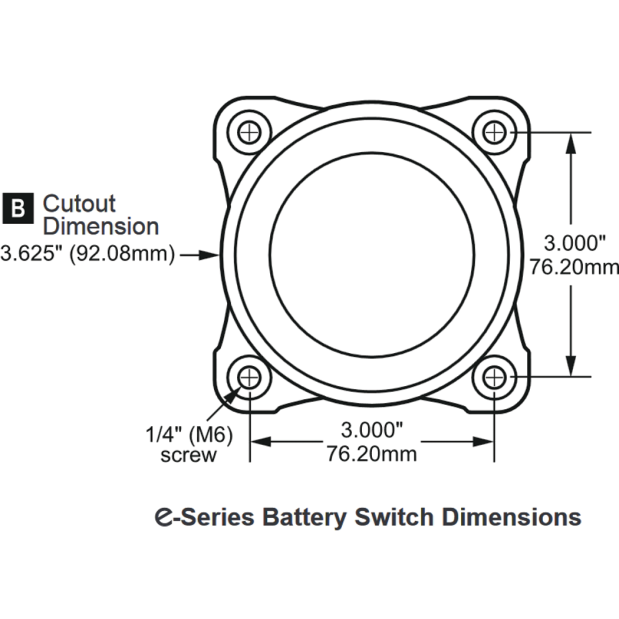

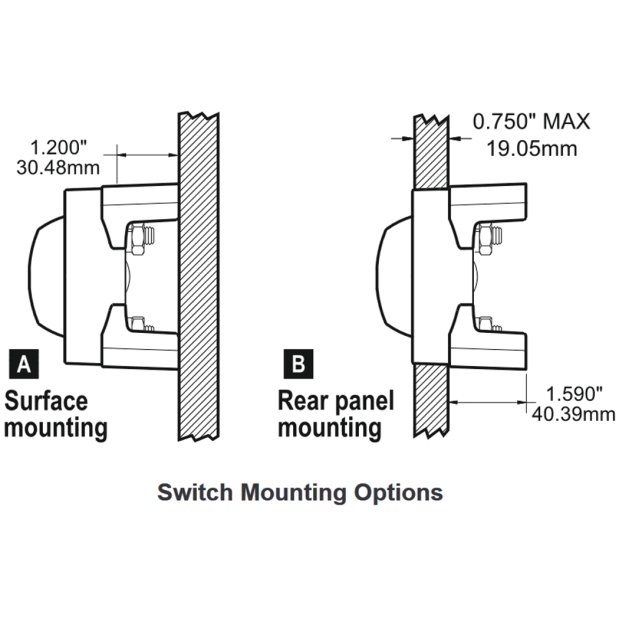

• Case design allows surface or flush mounting
• Fits all Perko low amperage battery switch hole patterns

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDBlue Sea Systems#AvailabilityDescriptionUOMYour PriceQTY
146071B/S 9001E 9001ELoading...e-Series Battery Selector Switch - 4 Positions, 4-Position Batt. SwitchLoading...
146276B/S 9002E 9002ELoading...e-Series Battery Selector Switch - 4 Positions, 4-Postion Batt. Switch w⁄AFDLoading...
