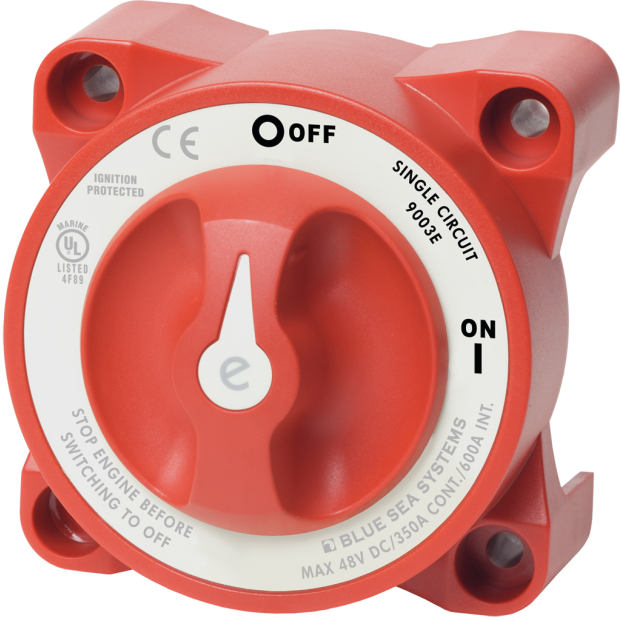

350A e-Series Battery Switch - On/Off
Description
Rated for 350 amp continuous duty for applications requiring high power output and reliability.
That's 45% higher than standard switches.
Higher than most, these switches have a maximum operating voltage of 48V DC.
• Ignition protected - safe for use on gasoline powered boats
• 3/8" tin-plated copper studs for maximum conductivity and corrosion resistance
• Accepts multiple cable terminals up to 4/0
• Rated at IP66 - withstands heavy seas, jets of water
• Case design allows surface or flush mounting
• Fits Perko and Guest low amperage battery switch hole patterns
Specifications
MFG #:9003E
10 Sec Cranking
2000A
60 Sec Cranking
1000A
AFD
No
Battery Inputs
1
Cont. Amp
350A
Dimensions
3.85"W x 3.85"H x 3.10"D
Int. Amp
600A
Positions
2
Stud
3/8"
Type
On/Off Battery Switch
Volts
48VDC Max.
Weight
0.95 lb
Barcodes
50632085900354
9003E
632085900359
9003E
632085900359
