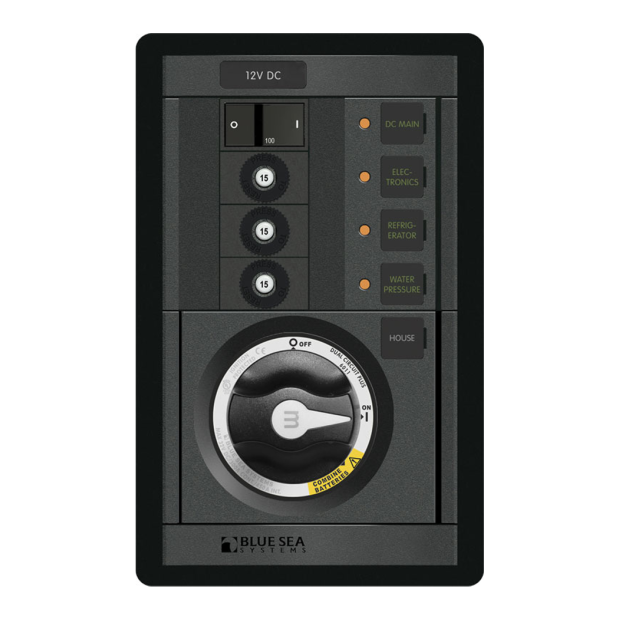

On/Off/Both small format m-Series 300A battery switch combined with DC main flat rocker circuit breaker controlling three 15 ampere 24-hour/"always on" DC circuits.
This DC main control panel isolates the Start circuit from the House circuit, allowing them to function independently. An emergency "Both" function is available for difficult starting situations.
The three unswitched, push-button reset 15A circuit breakers provide 24-hour circuit protection for "always On" devices that have their own on/off switches.
These circuits are ideal for bilge pumps and alarms that need to be "On" 24 hours a day, as well as digital clocks and other electronics with programmed memory or pre-sets which are sensitive to loss of electrical power.
• Design matches 360 Panel System
• Incorporates On/Off/Both m-Series Dual Circuit Plus™ small format battery switch (#6011200)
• Designed for single engine configurations
• Protects electronics from sags and spikes caused by engine starting
• DC main (100A flat rocker #7549) circuit protection, and three 15 amp push-button breakers (#7056) installed
• For use with 12V DC systems
• Includes Waterproof Square Label Set - 30 labels (#4218)
• "On" indicating LEDs
• Backlit circuit labels
• Ignition protected - safe for installation aboard gasoline-powered boats
• Dimensions: 4.88"W x 7.75"H x 3.50"D
• Snap on end-plates conceal mounting screws
• Addition of an Automatic Charging Relay (#7610 or ML-Series #7622/7623) will automate charging of both battery banks
Installation and User Guide for this product, and
a Cut-Out Template for mounting the panel.
