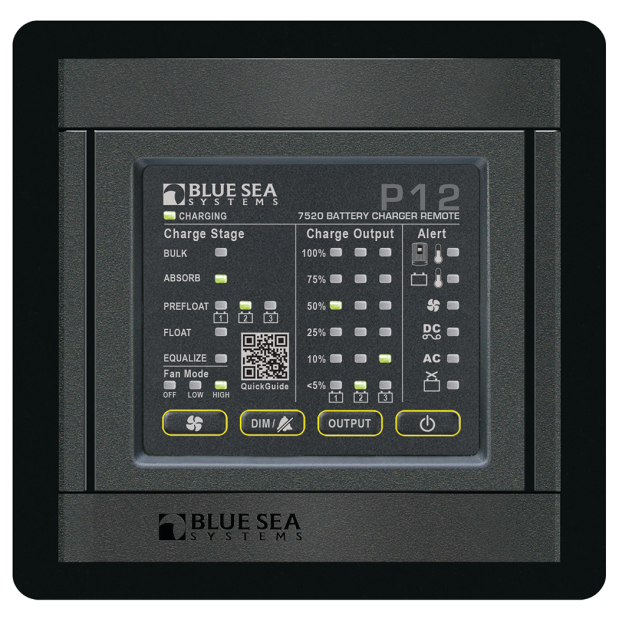

This custom panel matches the styling of Blue Sea Systems' semi-custom 360 range of electrical panels.
As a remote control for P12 Battery chargers, it indicates the battery charger state, provides alerts, and controls basic functions.
LED Indicators
• Charging - Quick check for green light confirms charging is in progress
• Charge Stage - Displays charging stage
• Equalize - Indicates if the charger is currently in Equalization mode
• Fan Mode - Indicates charger's internal fan mode
• Charge Output - Displays the percentage of output current for each battery. Will also indicate maximum output setting when maximum output is adjusted to accommodate for AC source limitations
• Alert - Icon LEDs provide warnings and alert status for quick diagnosis
Four Control Buttons
• Fan - User adjustable settings (Off, Low, or High)
• Dim/Alarm - Provides adjustment to brightness of LEDs on display as well as a Silence function for alarms
• Output - User adjustable charger output when AC source limitations exist that require lowering the AC current draw (e.g. when using a genset for AC power)
• Standby - Puts P12 charger in standby mode
Dimensions - 4.88"H x 4.75"W
Includes 25 ft Cat5e connecting cable (maximum cable length allowed is 150 ft) and instructions
Instruction Manual for this product.
