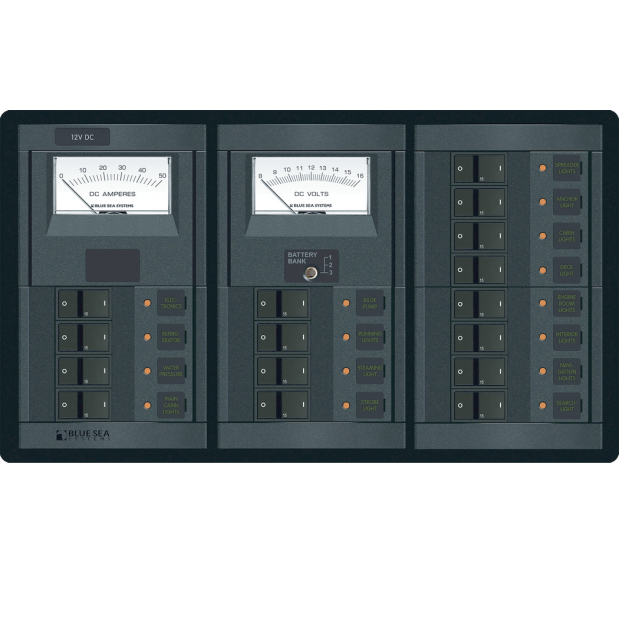

360 Panel Systems DC - 16 Positions w/Meters
360 Panel Systems DC - 16 Positions with Analog Amp & Voltmeters, Rocker DC 16 Position
SKU: 189549 Item ID: B/S 1201
- Analog amp & voltmeter
- Changeable backlit labels
- LED active indicator lights
Description
Part of an entire series of modular panel components, these panels represent the most frequently asked for configurations of DC circuit breaker panels with digital or analog meters.
• Snap-on end plates conceal mounting screws
• In DC panels, all rocker branch circuit breakers are A-Series; main breakers are C-Series
• Flat rocker circuit breakers or black toggle switches
• Easy to change backlight labels
• LEDs on each circuit illuminate to indicate "On" position and/or reverse polarity
• Panel column identification
• 12 volts; 24 volts available on custom panels
Specifications
MFG #:1201
Actuator
Rocker
Breakers
16 x 15A
Dimensions
13.3"W x 7.6"H
Meter
Amp/Volt
Meter #
8022, 8003
Type
DC 16 Position
Barcode
632085012014
