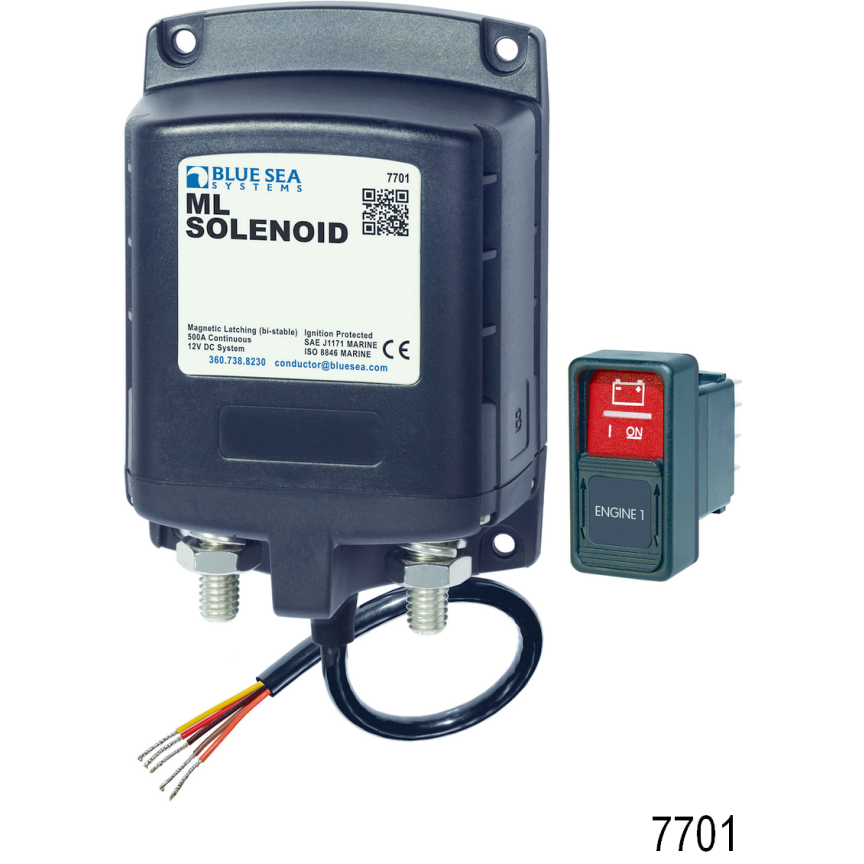

500A ML-Series Solenoid On/Off Remote Battery Switch

500A ML-Series Solenoid On/Off Remote Battery Switch

#7701 & 7703 • Magnetic Latching Solenoid Provides High-Current Remote Battery Switching

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
Please choose product option(s).
No more crawling into the engine compartment, lifting floorboards, or piling up cushions to change over your battery switch. You can use this convenient solenoid battery switch to connect or disconnect your battery banks remotely from the cockpit or control panel, without having to access the actual battery switch.

Unlike typical solenoids which are only activated when a current is present, the magnetic latching feature of these solenoid battery switches means that the battery switch will remain in either state (contacts open or closed) until changed by the operator.

These models of the 500A ML Remote Battery Switch are designed for installations where manual control of the solenoid is not required.
If you need a manual control right on the solenoid (in addition to the remote control feature), use the ML-RBS Remote Battery switch with Manual Control versions - see Related Products, below. The manual version provides an added level of safety by allowing control of the solenoid with or without power.

For use with inboard gasoline or diesel engines, this switch reduces long runs of heavy battery cables because it activates with low currents through small wires. No current draw, except to actually change the configuration of the switch.

• Silver alloy contacts provide high reliability in high amperage switching
• 3/8" tin-plated copper studs can accept multiple 4/0 AWG cable max.
• SAE J1171 ignition protected; UL rated; CE marked
• Label recesses for circuit identification
• IP66 water resistance (dust tight and able to withstand water from heavy seas)
• CE marked
• Note: specs in Table are based on using 2/0 cables; these switches can handle 500 amp continuous loads when 4/0 cables are used

Click here for additional information and technical data about this product.
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDBlue Sea Systems#AvailabilityDescriptionUOMYour PriceQTY
204886B/S 7701 7701Loading...500A ML-Series Remote Control Solenoid Switch - 12V DCLoading...
204888B/S 7703 7703Loading...500A ML-Series Remote Control Solenoid Switch - 24V DCLoading...
