Blue Sea 600A Heavy Duty Series Battery Switch
3000 of Blue Sea Systems Blue Sea 600A Heavy Duty Series Battery Switch
3000 of Blue Sea Systems Blue Sea 600A Heavy Duty Series Battery Switch

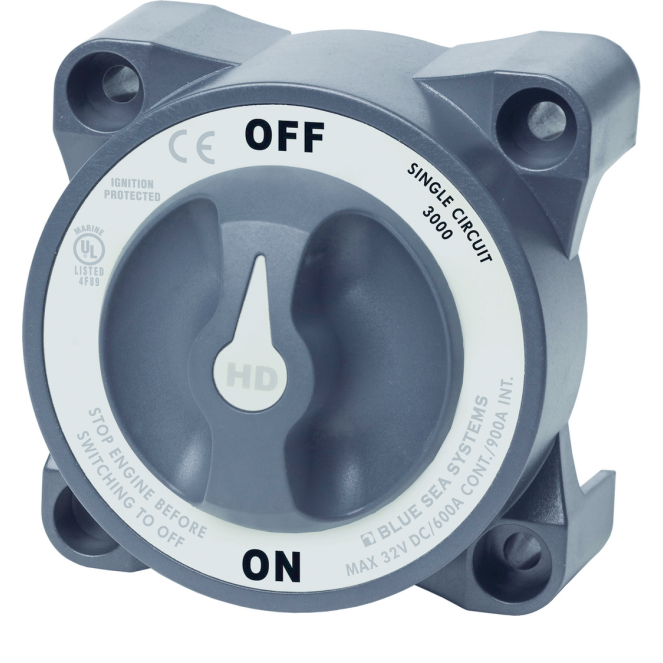

Blue Sea 600A Heavy Duty Series Battery Switch

SKU: 165629 Item ID: B/S 3000
  • Higher amps than standard
  • Ignition protected
  • For a single battery bank
Your Price:$95.78/ Each
Availability:
22 In Stock
Ships immediately
Quantity:
Each
Return Policy

Description

These heavy duty switches are rated at 600 continuous amps - 70% higher than standard switches - and are suitable for large diesel engines.

• Ignition protected - safe for installation aboard gasoline powered boats
• Corrosion-resistant, one-piece, tin -plated, 1/2" copper studs cannot loosen, and accept multiple cables up to 4/0
• Meets all American Boat and Yacht Council (ABYC) requirements for battery switches
• Rated at IP66 - withstands heavy seas, jetting water

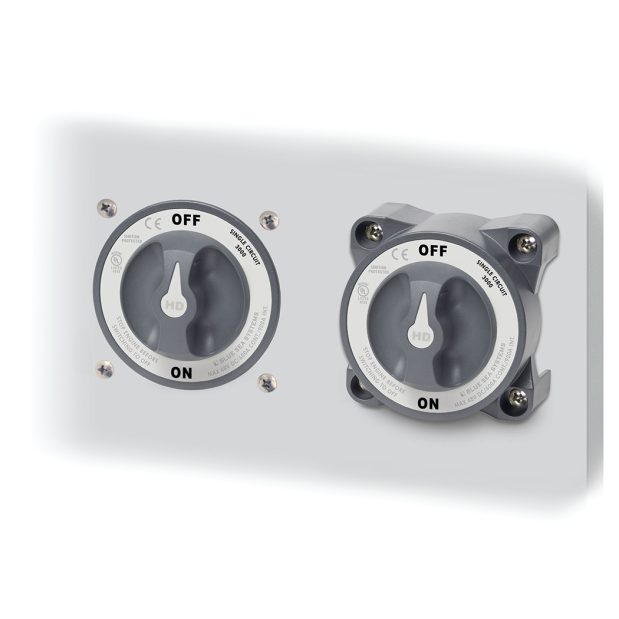

• Case design allows surface or flush mounting
• Dimensions: 3.85"W x 3.85"H x 3.10"D
• Fits Perko and Guest low amperage battery switch hole patterns

Note: Maximum ratings in Specification Table are when using 4/0 cable.

Specifications

MFG #:3000
AFD
No
Battery Inputs
1
Battery Switch Rating (Using 4/0 Cables)
600A Continuous, 900A Intermittent (5 Min),1750A Cranking (30 Sec)
Dimensions
3.85"W x 3.85"H x 3.10"D
Stud
1/2"
Type
600A Heavy Duty Battery Switch - On/Off
Volts
32V DC Max
Weight
1.30 lb
Barcodes
50632085030006
3000
632085030001
