AC/DC A-Series Single Pole Circuit Breakers - Black Toggle

"World" (A-Series) Black Toggle Circuit Breakers

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
"World" circuit breakers were developed in recognition of the trend toward increased international trade. They have the same case size as traditional A-Series circuit breakers, but have improved ratings to meet the requirements of foreign markets. Among others, they have an improved interrupt rating which is a measure of the current a breaker can interrupt without catastrophic failure. World circuit breakers meet ABYC standards, are UL 1077 recognized, TUV certified, CE marked for Europe, and CSA certified for Canada
• Replaces A-series breakers as the industry standard circuit breaker for Blue Sea Systems' electrical panels
• Combines switching and circuit protection into a single device
• Magnetic-hydraulic delay trip mechanism allows for short start-up current surges without tripping the breaker
• "Trip-Free" design cannot be held "ON" during a fault current condition
• Maximum voltage: 277 VAC/65 VDC

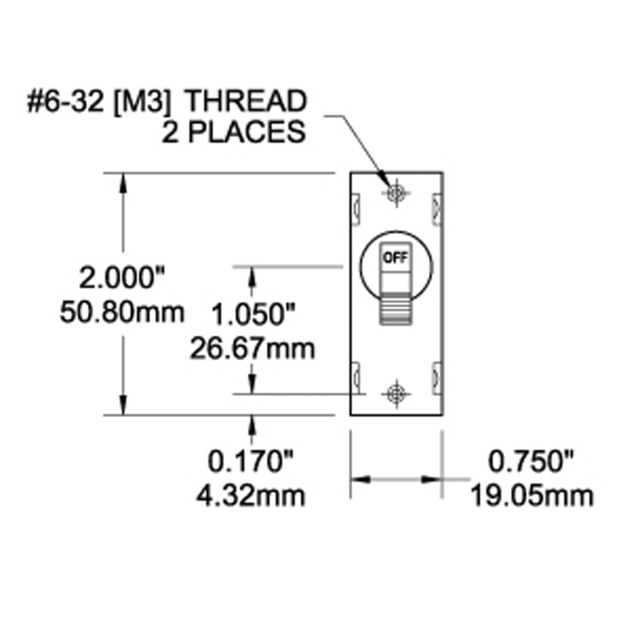

• Series A circuit breakers are available up to a maximum rating of 50 amps; case bodies measure 0.75"W x 2.00"H

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDBlue Sea Systems#AvailabilityDescriptionUOMYour PriceQTY
71849B/S 7200 7200Loading...AC/DC A-Series Single Pole Circuit Breaker - Black Toggle, 5ALoading...
182064B/S 7347 7347Loading...AC/DC A-Series Single Pole Circuit Breaker - Black Toggle, 8ALoading...
71853B/S 7204 7204Loading...AC/DC A-Series Single Pole Circuit Breaker - Black Toggle, 10ALoading...
71857B/S 7208 7208Loading...AC/DC A-Series Single Pole Circuit Breaker - Black Toggle, 15ALoading...
71861B/S 7212 7212Loading...AC/DC A-Series Single Pole Circuit Breaker - Black Toggle, 20ALoading...
71865B/S 7216 7216Loading...AC/DC A-Series Single Pole Circuit Breaker - Black Toggle, 25ALoading...
71869B/S 7220 7220Loading...AC/DC A-Series Single Pole Circuit Breaker - Black Toggle, 30ALoading...
71873B/S 7224 7224Loading...AC/DC A-Series Single Pole Circuit Breaker - Black Toggle, 40ALoading...
71877B/S 7228 7228Loading...AC/DC A-Series Single Pole Circuit Breaker - Black Toggle, 50ALoading...
Add To Cart
