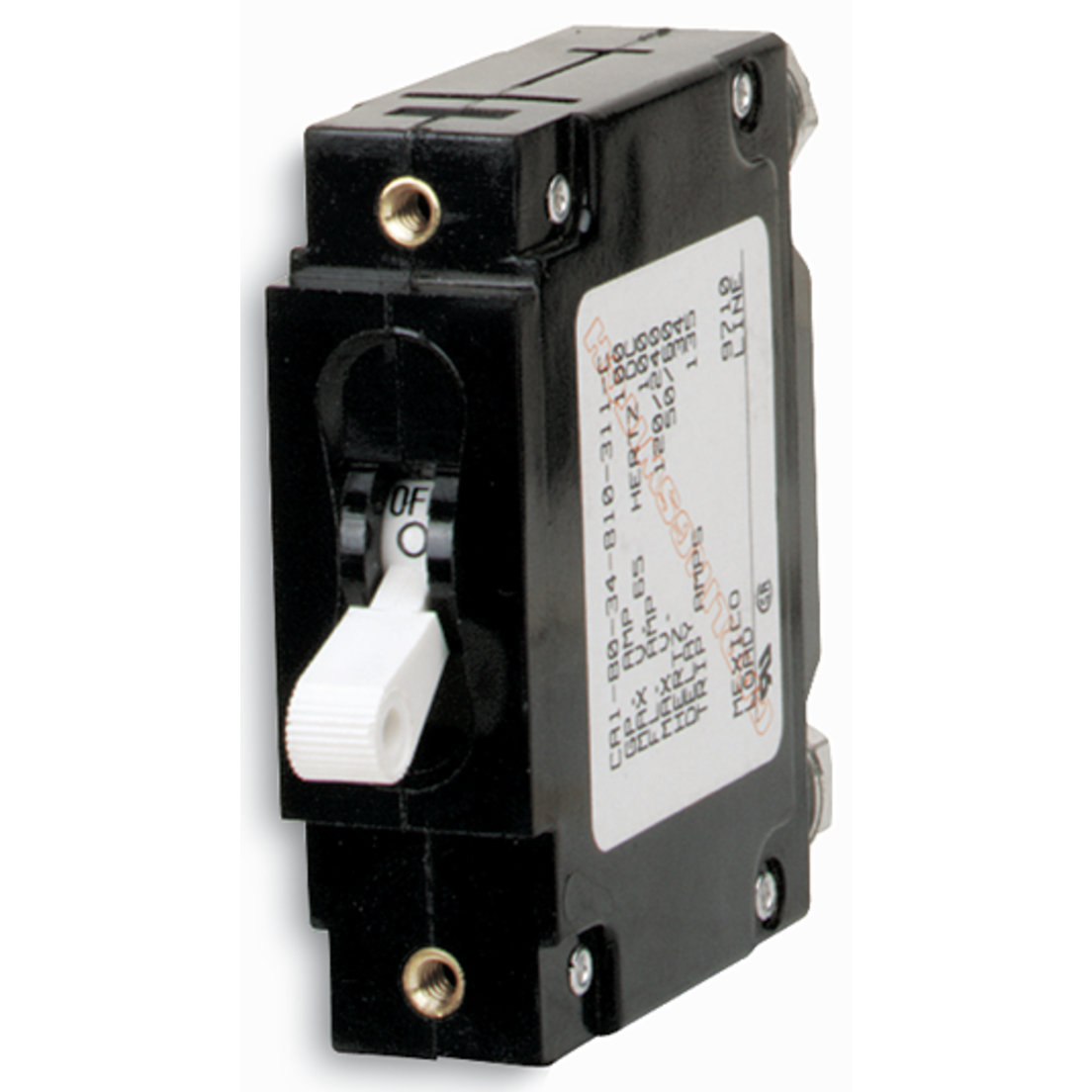

AC/DC C-Series Single Pole Circuit Breakers
AC/DC C-Series Single Pole Circuit Breakers, 50A
- High-Load
Description
A range of 5 to 300 amperes provides over-current protection previously only available in fuses for inverters, bow thrusters, and windlasses. These breakers have a 5,000 ampere interrupt capacity to meet ABYC requirements for 120/240 volt main circuit protection, (interrupt capacity is a measure of the ability to interrupt currents without catastrophic failure).
• Combines switching and circuit protection in a single device
• Magnetic-hydraulic delay trip mechanism allows for short start-up current surges without tripping the breaker
• "Trip-Free" - cannot be held closed after trip
• Maximum voltage: 80 VDC/250 VAC

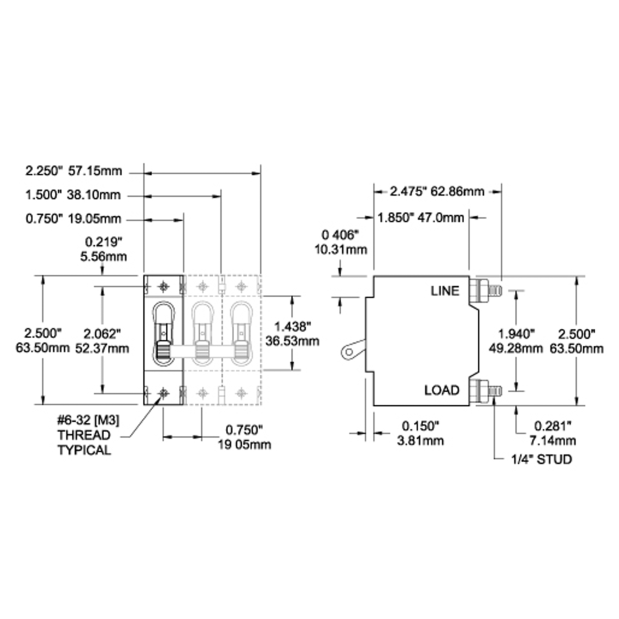

• C-Series circuit breakers are available up to a maximum rating of 100 amps (single pole); case bodies measure 0.75"W x 2.50"H
Specifications
632085072445
7244
Product Options
| Selected | SKU # | MFG # | Availability | Amperage | Price | Quantity | |
|---|---|---|---|---|---|---|---|
| SKU #: 71894 | MFG #: 7244 | 14 In Stock Ships immediately | 50A | $43.86 Each | |||

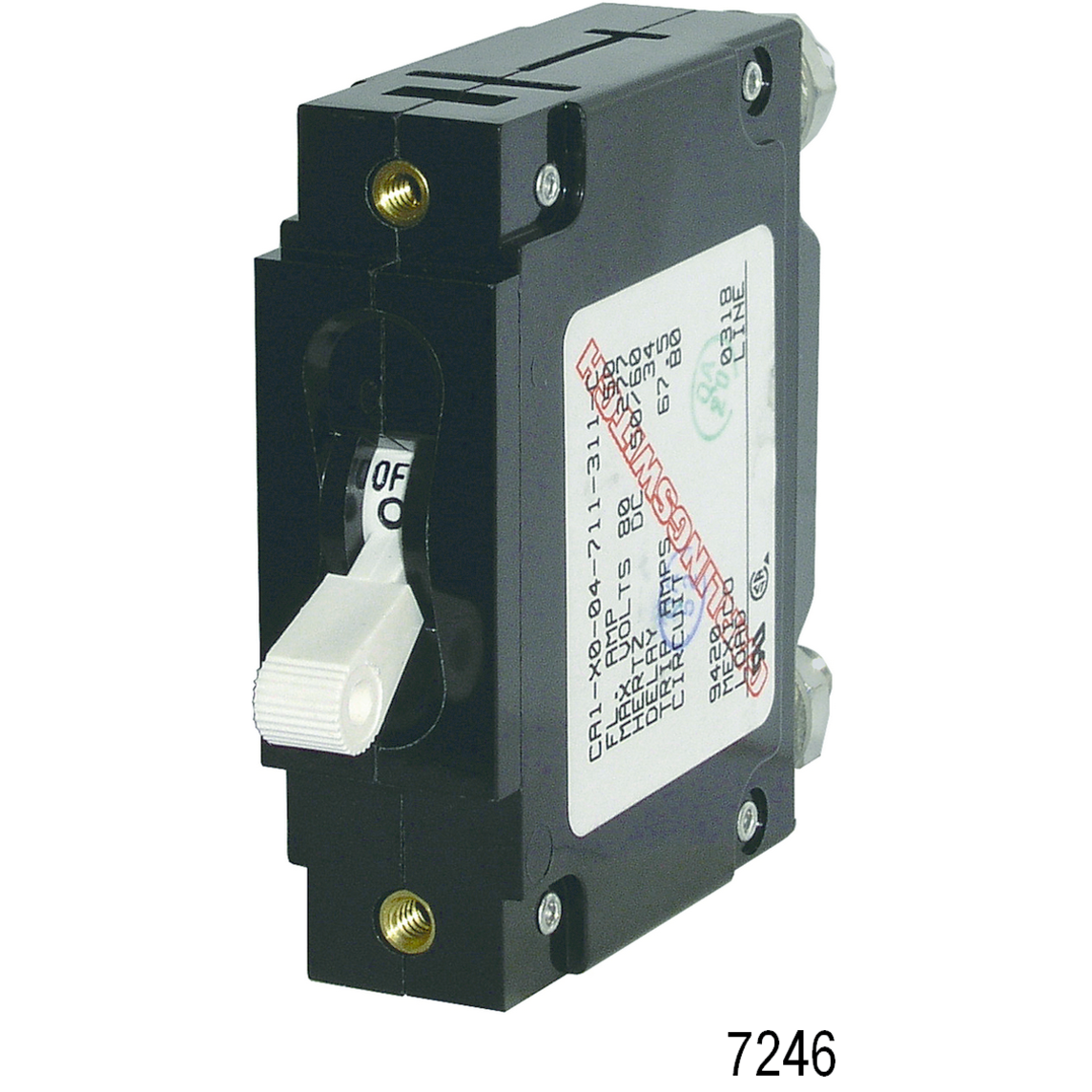

| SKU #: 71896 | MFG #: 7246 | 9 In Stock Ships immediately | 60A | $52.63 Each | |||
| SKU #: 71898 | MFG #: 7248 | 2 In Stock Ships immediately | 80A | $43.86 Each | |||
| SKU #: 71900 | MFG #: 7250 | 14 In Stock Ships immediately | 100A | $43.86 Each | |||
| SKU #: 173404 | MFG #: 7350 | 4 In Stock Ships immediately | 5A | $43.86 Each | |||
| SKU #: 161546 | MFG #: 7351 | Out of Stock | 10A | $43.86 Each | |||
| SKU #: 160251 | MFG #: 7352 | 5 In Stock Ships immediately | 15A | $43.86 Each | |||
| SKU #: 160252 | MFG #: 7353 | 2 In Stock Ships immediately | 20A | $43.86 Each | |||
| SKU #: 161547 | MFG #: 7354 | Out of Stock | 25A | $43.86 Each | |||
| SKU #: 160253 | MFG #: 7355 | 7 In Stock Ships immediately | 30A | $43.86 Each |
