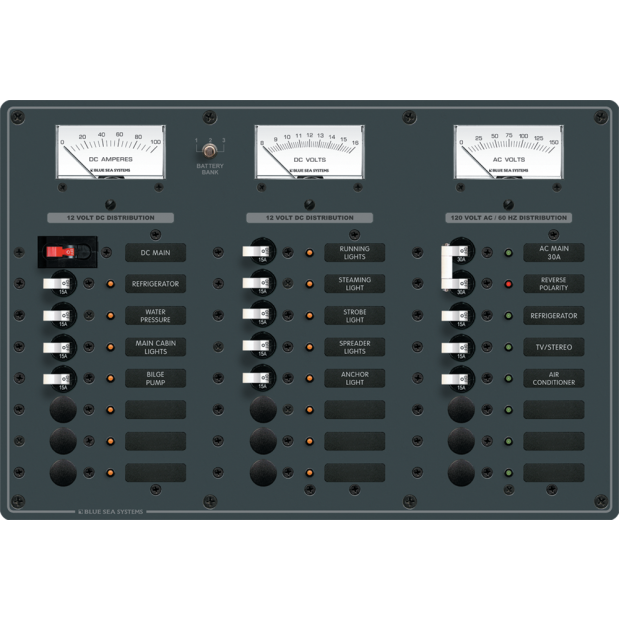

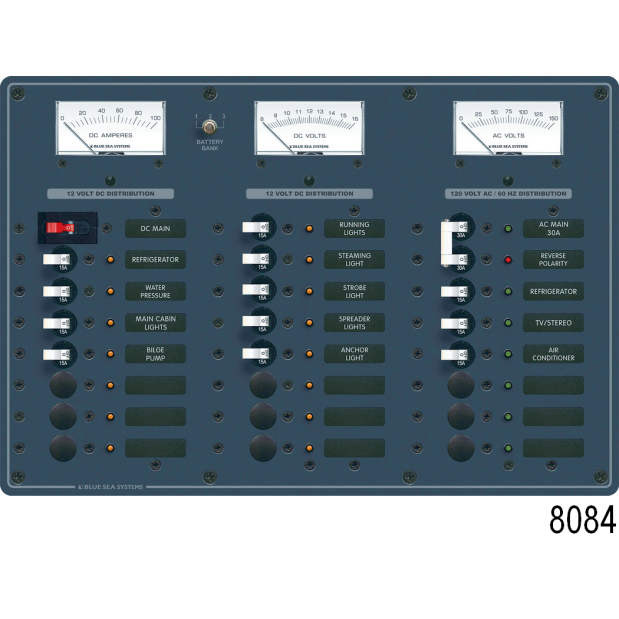

• Panel is ready to install
• All AC and DC buses installed, fully pre-wired
• Includes pre-installed backlighting and LEDs
• Includes set of 30 common AC and 30 common DC labels
• Maximum panel amperage: 50 amps AC/100 amps DC
• 120 volts AC/12 volts DC
AC Features:
• 8 AC circuit breaker positions
• One double pole 30 amp AC main circuit breaker
• Three AC 15amp circuit breakers installed; 3 empty positions
• 0-150 volt AC voltmeter (No.9353)
• Red reverse polarity indication LED
• Ready for installation of optional AC Isolation Cover (No. 4029)
DC Features:
• 100 amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
• Fifteen DC branch circuits; nine DC 15 amp circuit breakers installed; 6 empty positions
• 8-16 volt voltmeter (No.8003) w/3 position battery test switch
• 0-100 ampere DC ammeter w/remote shunt (No.8017)
